Winkelwagen
| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
2UD-F1500-30 2UDF150030 2UDF150030 |
FRONT FENDER ASSY
|
||||
| # 2 |
3B4-21541-00 3B42154100 3B42154100 |
DAMPER 1
|
||||
| # 3 |
90109-06043 9010906043 9010906043 |
BOLT
|
||||
| # 4 |
90119-06159 9011906159 9011906159 |
BOLT, WITH WASHER
|
||||
| # 5 |
90183-06053 9018306069009018306053 |
NUT, SPRING(4ES)
|
||||
| # 6 |
90480-13398 9048013014009048013398 |
GROMMET
|
||||
| # 7 |
90183-06053 9018306069009018306053 |
NUT, SPRING(4ES)
|
||||
| # 8 |
2UD-F1556-00 2UDF155601002UDF155600 |
FENDER, FRONT 2
|
||||
| # 9 |
3B4-21541-00 3B42154100 3B42154100 |
DAMPER 1
|
||||
| # 10 |
90109-06043 9010906043 9010906043 |
BOLT
|
||||
| # 11 |
90111-06814 9011106814 9011106814 |
BOLT, HEX SKT HEAD
|
||||
| # 12 |
90183-06053 9018306069009018306053 |
NUT, SPRING(4ES)
|
||||
| # 13 |
90480-13398 9048013014009048013398 |
GROMMET
|
||||
| # 14 |
90183-06053 9018306069009018306053 |
NUT, SPRING(4ES)
|
||||
| # 15 |
1HP-F838K-00 1HPF838K00 1HPF838K00 |
BOX 1
|
||||
| # 16 |
3B4-2838M-00 3B42838M00 3B42838M00 |
SEAL, BOX 1
|
||||
| # 17 |
90480-13004 9048013004 9048013004 |
GROMMET
|
||||
| # 18 |
3B4-215A1-00 3B4215A100 3B4215A100 |
PLUG, DRAIN
|
||||
| # 19 |
3B4-2845L-00 3B42845L00 3B42845L00 |
STOPPER, OPEN
|
||||
| # 20 |
901790552300 901790552300901790552300 |
NUT(1KT)
|
||||
| # 21 |
3B4-2839N-00 3B42839N00 3B42839N00 |
HOLDER
|
||||
| # 22 |
98502-05016 9788505016009850205016 |
SCREW, PAN HEAD(6B0)
|
||||
| # 23 |
92902-05600 9299005600009290205600 |
WASHER, PLAIN (646)
|
||||
| # 24 |
1HP-F151B-00 1HPF151B00 1HPF151B00 |
CAP
|
||||
| # 25 |
3B4-28307-00 3B42830700 3B42830700 |
SEAL
|
||||
| # 26 |
3B4-28487-00 3B42848700 3B42848700 |
PLATE 2
|
||||
| # 27 |
90164-05800 9016405800 9016405800 |
SCREW, TAPPING
|
||||
| # 28 |
2UD-F8309-00 2UDF830900 2UDF830900 |
GRILLE, FRONT
|
||||
| # 29 |
90269-07010 9026907010 9026907010 |
RIVET
|
||||
| # 30 |
90269-06081 9026906081 9026906081 |
RIVET
|
||||
| # 31 |
90109-06172 9010906172 9010906172 |
BOLT
|
||||
| # 32 |
2UD-F838E-00 2UDF838E00 2UDF838E00 |
COVER, HEADLIGHT
|
||||
| # 33 |
90119-05193 9011905193 9011905193 |
BOLT, WITH WASHER(3RB)
|
||||
| # 34 |
90183-051A0 90183051A0 90183051A0 |
NUT, SPRING
|
||||
| # 35 |
1HP-H212B-01 1HPH212B02001HPH212B01 |
BOX, BATTERY 1
|
||||
| # 36 |
90119-06152 9011906152 9011906152 |
BOLT, WITH WASHER
|
||||
| # 37 |
1HP-H253E-00 1HPH253E00 1HPH253E00 |
INSULATOR 1
|
||||
| # 38 |
1HP-H253F-00 1HPH253F00 1HPH253F00 |
INSULATOR 2
|
||||
| # 39 |
1HP-H254E-00 1HPH254E00 1HPH254E00 |
INSULATOR
|
||||
| # 40 |
3B4-8233W-10 3B48233W10 3B48233W10 |
INSU.
|
||||
| # 41 |
3B4-82122-00 3B48212200 3B48212200 |
SEAT, BATTERY
|
||||
| # 42 |
1HP-H2176-00 1HPH217601001HPH217600 |
AMORTISSEUR
|
||||
| # 43 |
90183-06053 9018306069009018306053 |
NUT, SPRING(4ES)
|
||||
| # 44 |
90183-05008 9018305008 9018305008 |
NUT, SPRING
|
||||
| # 45 |
2UD-F3391-00 2UDF339100 2UDF339100 |
PANEL, FRONT
|
||||
| # 46 |
2UD-F175B-00 2UDF175B00 2UDF175B00 |
TUNING FORK MARK
|
||||
| # 47 |
90183-06071 9018306071 9018306071 |
NUT, SPRING(JA3)
|
||||
| # 48 |
90269-07010 9026907010 9026907010 |
RIVET
|
||||
| # 49 |
B16-F839R-00 B16F839R00 B16F839R00 |
PANEL, ACCESSORY
|
||||
| # 50 |
1HP-F1552-00 1HPF155200 1HPF155200 |
FENDER, INNER
|
||||
| # 51 |
1HP-F1575-00 1HPF157500 1HPF157500 |
SEAL 1
|
||||
| # 52 |
90119-06152 9011906152 9011906152 |
BOLT, WITH WASHER
|
||||
| # 53 |
90183-06053 9018306069009018306053 |
NUT, SPRING(4ES)
|
||||
| # 54 |
1HP-F1553-00 1HPF155300 1HPF155300 |
FENDER, INNER 2
|
||||
| # 55 |
90119-06152 9011906152 9011906152 |
BOLT, WITH WASHER
|
||||
| # 56 |
90183-06053 9018306069009018306053 |
NUT, SPRING(4ES)
|

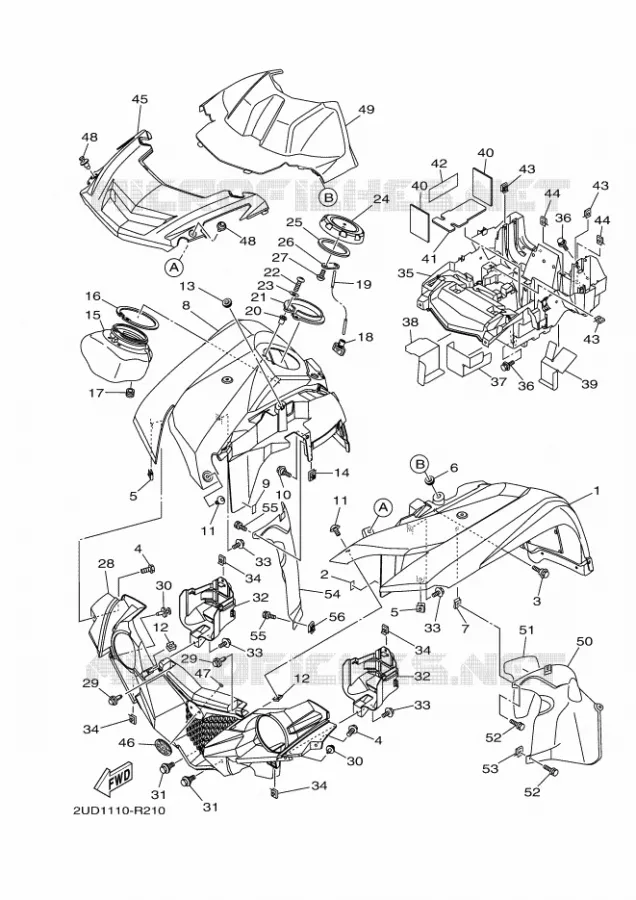

Yamaha YFM700FWADYFM70GPXGGRIZZLY EPS
Cilinderinhoud: 700 Jaar: 2016 Model code 2UD3 Kleur: PASTEL DEEP GREEN
