Winkelwagen
| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
2FJ-25390-00-98 2FJ253900098 2FJ253900098 |
REAR WHEEL COMP.
|
Contact | |||
| # 2 |
94108-07008 5YF2510K19009410807008 |
TIRE
|
||||
| # 3 |
93900-00022 9390000030009390000022 |
VALVE, RIM(2GH)
|
||||
| # 4 |
2FJ-25390-00-98 2FJ253900098 2FJ253900098 |
REAR WHEEL COMP.
|
Contact | |||
| # 5 |
94108-07008 5YF2510K19009410807008 |
TIRE
|
||||
| # 6 |
93900-00022 9390000030009390000022 |
VALVE, RIM(2GH)
|
||||
| # 7 |
55X-25383-10 55X2538310 55X2538310 |
COLLAR, WHEEL
|
||||
| # 8 |
90114-08001 9011408001 9011408001 |
BOLT, SERRATION
|
||||
| # 9 |
95702-08500 9570408500009570208500 |
NUT, FLANGE
|
||||
| # 10 |
3GB-25311-00-33 3GB253110033 3GB253110033 |
HUB, REAR
|
Contact | |||
| # 11 |
3GB-25317-00 3GB2531700 3GB2531700 |
SPACER, BEARING
|
||||
| # 12 |
93306-00612 9330600612 9330600612 |
BEARING(2HR)
|
||||
| # 13 |
93102-38383 9310638046009310238383 |
OIL SEAL
|
||||
| # 14 |
93102-36409 9310236409 9310236409 |
OIL SEAL(3GB)
|
||||
| # 15 |
3GB-25382-00 3GB2538200 3GB2538200 |
NUT, AXLE
|
Contact | |||
| # 16 |
3Y6-25351-00 4GL2535100003Y62535100 |
CAMSHAFT
|
||||
| # 17 |
5YF-25355-00 5YF2535500 5YF2535500 |
LEVER, CAMSHAFT
|
Contact | |||
| # 18 |
55X-2533H-00 55X2533H00 55X2533H00 |
HOOK, SPRING
|
Contact | |||
| # 19 |
90101-06562 9010106562 9010106562 |
BOLT (22N)
|
Contact | |||
| # 20 |
95302-06600 9538006600009530206600 |
NUT(661)
|
||||
| # 21 |
23F-2533A-00 23F2533A00 23F2533A00 |
PLATE, INDICATOR
|
||||
| # 22 |
93210-14104 9321014579009321014104 |
O-RING (26H)
|
||||
| # 23 |
3FA-W253E-00 3FAW253A00003FAW253E00 |
BRAKE SHOE KIT
|
||||
| # 24 |
90506-15260 9050615260 9050615260 |
SPRING, TENSION
|
||||
| # 25 |
3GB-25326-00 3GB2532600 3GB2532600 |
PIN, PIVOT
|
||||
| # 26 |
90114-10017 9011410017 9011410017 |
BOLT, SERRATION
|
Contact | |||
| # 27 |
3GB-2531E-00 3GB2531E00 3GB2531E00 |
DRUM, BRAKE
|
||||
| # 28 |
3GB-25343-10 3GB2534310 3GB2534310 |
BOSS
|
||||
| # 29 |
90116-08084 9011608084 9011608084 |
BOLT, STUD
|
||||
| # 30 |
390-25412-01 40E2583400003902541201 |
WASHER, LOCK
|
||||
| # 31 |
95302-08600 9530208600 9530208600 |
NUT
|
Contact | |||
| # 32 |
93210-26606 9321026662009321026606 |
O-RING(22F)
|
||||
| # 33 |
90170-28011 9017028011 9017028011 |
NUT
|
||||
| # 34 |
90179-28009 9017928009 9017928009 |
NUT
|
||||
| # 35 |
3GB-25715-00 3GB2571500 3GB2571500 |
COVER 1
|
||||
| # 36 |
92502-06012 9250206012 |
SCREW, PAN
|
Contact | |||
| # 37 |
92902-06100 9299506100009290206100 |
WASHER(6A1)
|
||||
| # 38 |
93102-35349 9310235191009310235349 |
OIL SEAL (705)
|
||||
| # 39 |
3GB-25367-00 3GB2536700 3GB2536700 |
COVER, HUB DUST
|
||||
| # 40 |
90507-15038 9050715038 9050715038 |
SPRING, TENSION(55X)
|
||||
| # 41 |
90201-12045 9020112045 9020112045 |
WASHER, PLATE
|
||||
| # 42 |
90171-12001 9017112001 9017112001 |
NUT, CASTLE
|
||||
| # 43 |
91401-25025 9149025030009140125025 |
PIN, COTTER(6L5)
|

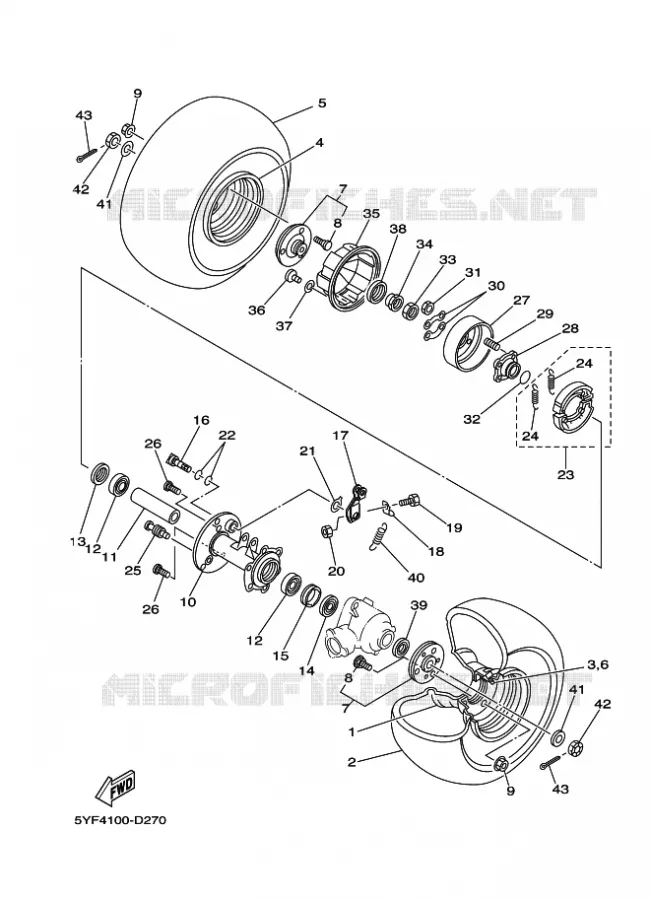

Yamaha YFM50
Cilinderinhoud: 50 Jaar: 2008 Model code 5YFF Kleur: DEEP PURPLISH BLUE SOLID E
