| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|

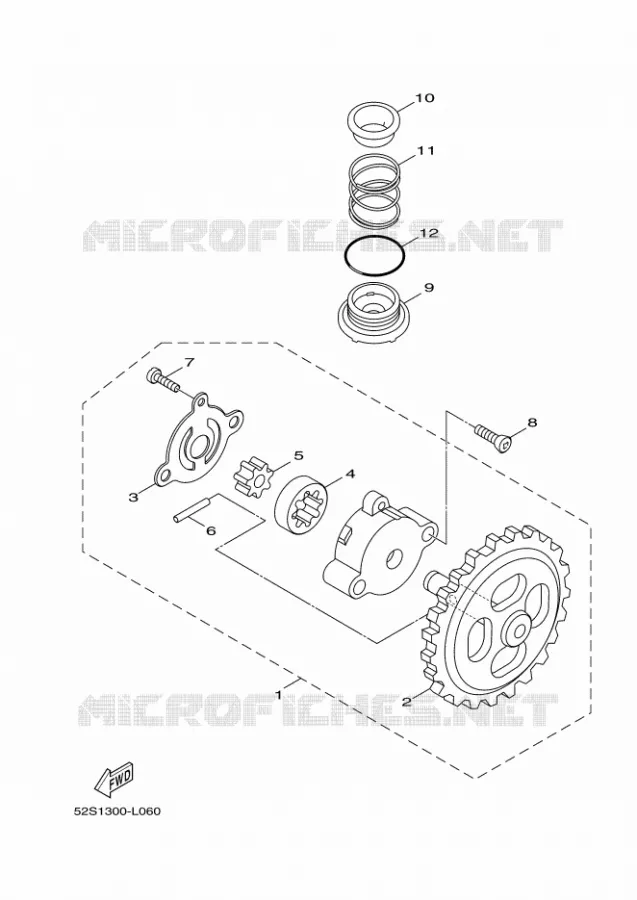

| # 1 |
52S-E3300-00 52SE330000 52SE330000 |
OIL PUMP ASSY
|
||||
| # 2 |
52S-E3325-00 52SE332500 52SE332500 |
GEAR, PUMP DRIVEN
|
||||
| # 3 |
5P0-E3316-00 5P0E331600 5P0E331600 |
COVER, PUMP
|
||||
| # 4 |
5P0-E3336-00 5P0E333600 5P0E333600 |
HOUSING, ROTOR
|
||||
| # 5 |
5MX-E3310-00 5MXE331000 5MXE331000 |
ROTOR ASSY 1
|
||||
| # 6 |
93602-11144 9360211144 9360211144 |
PIN, DOWEL(43F)
|
||||
| # 7 |
5LW-E5481-00 5LWE548100 5LWE548100 |
BOLT 1
|
||||
| # 8 |
98502-05025 9858005525009850205025 |
SCREW, PANHEAD (A93)
|
||||
| # 9 |
3UH-E5351-00 5NWE534100003UHE535100 |
PLUG, DRAIN
|
||||
| # 10 |
3KW-E3411-00 3KWE341100 3KWE341100 |
STRAINER, OIL
|
||||
| # 11 |
90501-16829 9050116829 9050116829 |
SPRING, COMPRESSION
|
||||
| # 12 |
93210-35879 93210347A1009321035879 |
O-RING
|
Yamaha HW125
Cilinderinhoud: 125 Jaar: 2014 Model code 53B3 Kleur: MAT DARK YELLOWISH GRAY ME 4
