Winkelwagen
| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
52S-H2100-01 4UC82100010052SH210001 |
BATTERY (GT7B-4)
|
||||
| # 2 |
52S-F1344-00 52SF134400 52SF134400 |
BRACKET, BATTERY B
|
||||
| # 3 |
90480-01884 9048001884 9048001884 |
GROMMET
|
||||
| # 4 |
95812-06010 9581206010 9581206010 |
BOLT, FLANGE
|
||||
| # 5 |
90149-06826 9014906826 9014906826 |
SCREW
|
||||
| # 6 |
52S-H2115-00 52SH211500 52SH211500 |
WIRE, PLUS LEAD
|
||||
| # 7 |
52S-H2552-00 52SH255200 52SH255200 |
CAP, SWITCH
|
||||
| # 8 |
52S-H2501-01 52SH250101 52SH250101 |
MAIN SWITCH STEERI
|
||||
| # 9 |
52S-H2511-01-A0 52SH251101A0 52SH251101A0 |
KEY, MAIN SWITCH
|
||||
| # 9 |
52S-H2511-01-C0 52SH251101C0 52SH251101C0 |
KEY, MAIN SWITCH
|
||||
| # 10 |
90149-06837 9014906837 9014906837 |
SCREW
|
||||
| # 11 |
52S-H2590-00 52SH259000 52SH259000 |
WIRE HARNESS ASSY
|
||||
| # 12 |
5HM-H2151-00 5HMH215100 5HMH215100 |
FUSE ( 20A )
|
||||
| # 13 |
5ML-H2151-10 5MLH215110 5MLH215110 |
FUSE (15A)
|
||||
| # 14 |
5ML-H2151-20 5MLH215120 5MLH215120 |
FUSE (7.5A)
|
||||
| # 15 |
90269-06803 9026906803 9026906803 |
RIVET
|
||||
| # 16 |
90464-15840 9046415840 9046415840 |
CLAMP
|
||||
| # 17 |
90464-20803 9046420803 9046420803 |
CLAMP
|
||||
| # 18 |
52S-H252U-00 52SH252U00 52SH252U00 |
COVER
|
||||
| # 19 |
90464-16801 9046416801 9046416801 |
CLAMP
|
||||
| # 20 |
90464-25803 9046425803 9046425803 |
CLAMP
|
||||
| # 21 |
52S-H212B-00 52SH212B00 52SH212B00 |
BOX, BATTERY 1
|
||||
| # 22 |
52S-H3755-01 52SH375501 52SH375501 |
SENSOR, SPEED
|
||||
| # 23 |
52S-H3350-00 52SH335000 52SH335000 |
FLASHER RELAY ASSY
|
||||
| # 24 |
5D1-8592A-00 5D18592A00 5D18592A00 |
SENSOR
|
||||
| # 25 |
52S-H2176-00 52SH217600 52SH217600 |
DAMPER
|

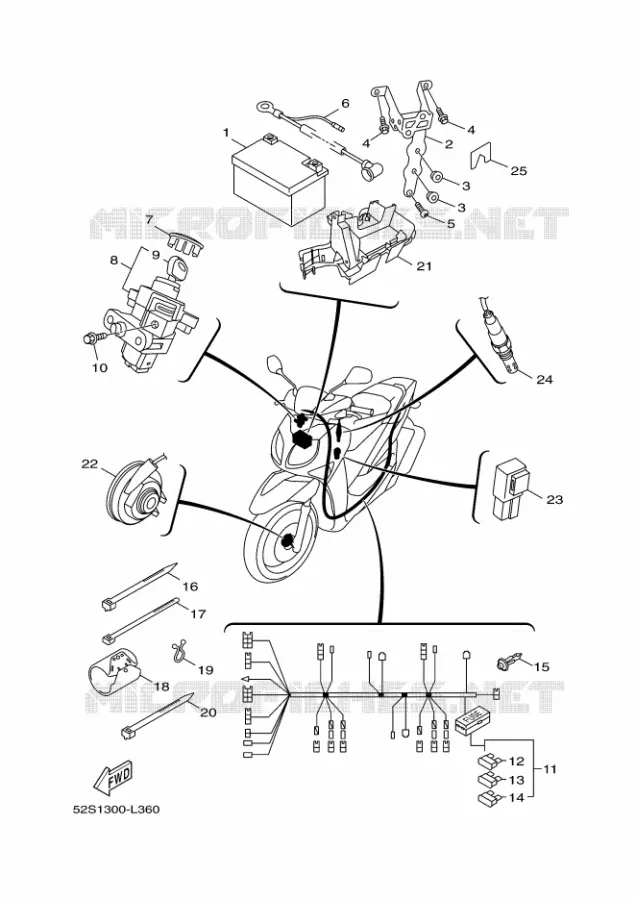

Yamaha HW125
Cilinderinhoud: 125 Jaar: 2014 Model code 53B3 Kleur: MAT DARK YELLOWISH GRAY ME 4
