| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
52S-F6143-00-P5 52SF614300P5 52SF614300P5 |
COUVERCLE, GUIDON SUP 1
|
Contact | |||
| # 2 |
90183-05807 9018305042009018305807 |
NUT, SPRING(1YT)
|
||||
| # 3 |
97707-50016 9016705077009770750016 |
SCREW, TAPPING(4TV)
|
||||
| # 4 |
52S-F6231-00 52SF623100 52SF623100 |
COVER, HANDLE FRON
|
||||
| # 5 |
52S-F6216-00 52SF621600 52SF621600 |
CAP, HANDLEBAR COV
|
||||
| # 6 |
52S-F6217-00 52SF621700 52SF621700 |
CAP, COVER HANDLE
|
||||
| # 7 |
97707-50016 9016705077009770750016 |
SCREW, TAPPING(4TV)
|
||||
| # 8 |
90269-06803 9026906803 9026906803 |
RIVET
|
||||
| # 9 |
52S-F6215-00 52SF621500 52SF621500 |
COVER, LOWER
|
||||
| # 10 |
90183-05807 9018305042009018305807 |
NUT, SPRING(1YT)
|
||||
| # 11 |
97707-50016 9016705077009770750016 |
SCREW, TAPPING(4TV)
|
||||
| # 12 |
90159-05167 9015905167 9015905167 |
SCREW, WITH WASHER(3BN)
|
||||
| # 13 |
52S-F6218-00-P0 52SF621800P0 52SF621800P0 |
MOLD, COVER
|
||||
| # 14 |
97707-50016 9016705077009770750016 |
SCREW, TAPPING(4TV)
|
||||
| # 15 |
52S-F6368-00 52SF636800 52SF636800 |
SPRING, LOCK
|
||||
| # 16 |
52S-F6214-00 52SF621400 52SF621400 |
LID
|
||||
| # 17 |
52S-F622F-00 52SF622F00 52SF622F00 |
DAMPER, LOCATING 1
|
||||
| # 18 |
52S-F622G-00 52SF622G00 52SF622G00 |
DAMPER, LOCATING
|
||||
| # 19 |
5FH-F1578-00 5FHF157800 5FHF157800 |
EMBLEM
|
||||
| # 20 |
52S-F8470-00 52SF847000 52SF847000 |
LOCK ASSY
|
||||
| # 21 |
97702-40012 9770740012009770240012 |
SCREW, TRUSS TAP.
|
||||
| # 22 |
52S-F6280-00 52SF628000 52SF628000 |
REAR VIEW MIRROR A
|
||||
| # 23 |
52S-F629T-00 52SF629T00 52SF629T00 |
BOOT 1
|
||||
| # 24 |
18S-F6294-00 18SF629400 18SF629400 |
NUT 1
|
||||
| # 25 |
52S-F6356-00 52SF635600 52SF635600 |
BOLT, ADJUSTING
|
||||
| # 26 |
52S-F6290-00 52SF629000 52SF629000 |
REAR VIEW MIRROR A
|
||||
| # 27 |
52S-F629U-00 52SF629U00 52SF629U00 |
BOOT 2
|
||||
| # 28 |
18S-F6294-00 18SF629400 18SF629400 |
NUT 1
|
||||
| # 29 |
52S-F6356-00 52SF635600 52SF635600 |
BOLT, ADJUSTING
|

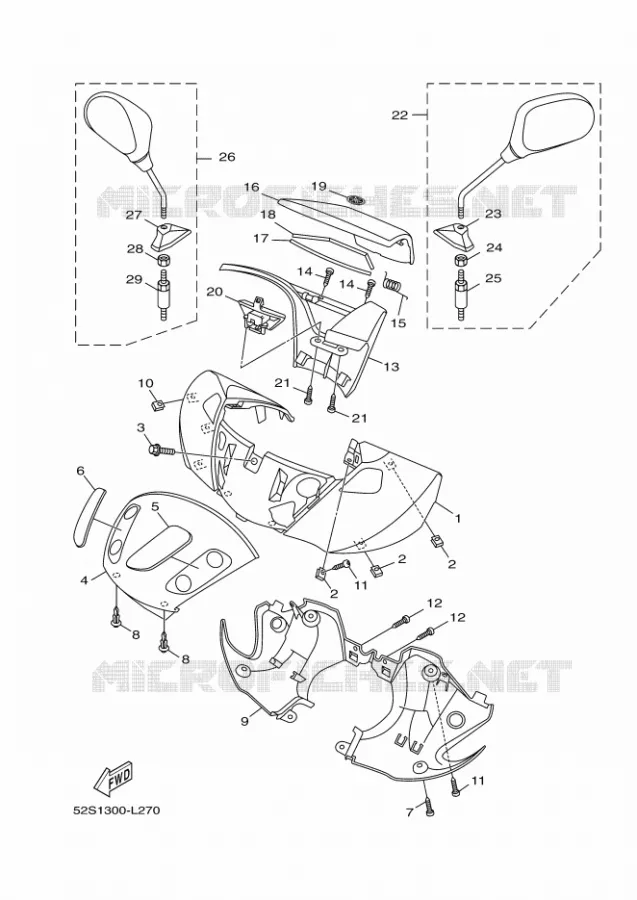

Yamaha HW125
Cilinderinhoud: 125 Jaar: 2014 Model code 53B3 Kleur: MAT DARK YELLOWISH GRAY ME 4
