| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
5D7-F835G-00-P5 5D7F835G00P5 5D7F835G00P5 |
BODY FRONT UPPER 1 DPBM13
|
||||
| # 2 |
90167-05X06 9016705X06 9016705X06 |
SCREW, TAPPING
|
||||
| # 3 |
90111-06X23 9011106X23 9011106X23 |
BOLT HEX SOCKET
|
||||
| # 4 |
90202-06X01 9020206X01 9020206X01 |
RONDELLE
|
||||
| # 5 |
90167-05X07 9016705X07 9016705X07 |
SCREW, TAPPING
|
||||
| # 6 |
90183-06X00 9018306X00 9018306X00 |
NUT, SPRING
|
||||
| # 7 |
90183-05X03 9018305X03 9018305X03 |
NUT SPRING
|
||||
| # 8 |
90464-62085 9046462085 9046462085 |
CLAMP(1NL)
|
||||
| # 9 |
5D7-F835H-00-P5 5D7F835H00P5 5D7F835H00P5 |
BODY FRONT UPPER 2 DPBM13
|
||||
| # 10 |
90167-05X06 9016705X06 9016705X06 |
SCREW, TAPPING
|
||||
| # 11 |
90111-06X23 9011106X23 9011106X23 |
BOLT HEX SOCKET
|
||||
| # 12 |
90202-06X01 9020206X01 9020206X01 |
RONDELLE
|
||||
| # 13 |
90167-05X07 9016705X07 9016705X07 |
SCREW, TAPPING
|
||||
| # 14 |
90183-06X00 9018306X00 9018306X00 |
NUT, SPRING
|
||||
| # 15 |
90183-05X03 9018305X03 9018305X03 |
NUT SPRING
|
||||
| # 16 |
90464-62085 9046462085 9046462085 |
CLAMP(1NL)
|
||||
| # 17 |
5D7-F835J-00-P6 5D7F835J00P6 5D7F835J00P6 |
BODY FRONT UNDER 1 MWM4
|
||||
| # 18 |
5D7-F8385-30-P6 5D7F838530P6 5D7F838530P6 |
COVER UNDER MWM4
|
||||
| # 19 |
90111-06X23 9011106X23 9011106X23 |
BOLT HEX SOCKET
|
||||
| # 20 |
90202-06X01 9020206X01 9020206X01 |
RONDELLE
|
||||
| # 21 |
90183-05X03 9018305X03 9018305X03 |
NUT SPRING
|
||||
| # 22 |
90167-05X06 9016705X06 9016705X06 |
SCREW, TAPPING
|
||||
| # 23 |
90202-05X00 9020205X00 9020205X00 |
WASHER, PLATE
|
||||
| # 24 |
90269-06008 9026906008 9026906008 |
RIVET
|
||||
| # 25 |
5D7-F835K-00-P6 5D7F835K00P6 5D7F835K00P6 |
BODY FRINT UNDER 2 MWM4
|
||||
| # 26 |
5D7-F8395-30-P6 5D7F839530P6 5D7F839530P6 |
COVER UNDER 2 MWM4
|
||||
| # 27 |
90183-06X00 9018306X00 9018306X00 |
NUT, SPRING
|
||||
| # 28 |
90111-06X23 9011106X23 9011106X23 |
BOLT HEX SOCKET
|
||||
| # 29 |
90202-06X01 9020206X01 9020206X01 |
RONDELLE
|
||||
| # 30 |
90183-05X03 9018305X03 9018305X03 |
NUT SPRING
|
||||
| # 31 |
5D7-F835U-00-P7 5D7F835U00P7 5D7F835U00P7 |
PANEL 1 DPBM13
|
||||
| # 32 |
90111-06X23 9011106X23 9011106X23 |
BOLT HEX SOCKET
|
||||
| # 33 |
90202-06X01 9020206X01 9020206X01 |
RONDELLE
|
||||
| # 34 |
90167-05X06 9016705X06 9016705X06 |
SCREW, TAPPING
|
||||
| # 35 |
90202-05X00 9020205X00 9020205X00 |
WASHER, PLATE
|
||||
| # 36 |
5D7-F835V-00-P7 5D7F835V00P7 5D7F835V00P7 |
PANEL 2 DPBM13
|
||||
| # 37 |
90111-06X23 9011106X23 9011106X23 |
BOLT HEX SOCKET
|
||||
| # 38 |
90202-06X01 9020206X01 9020206X01 |
RONDELLE
|
||||
| # 39 |
90167-05X06 9016705X06 9016705X06 |
SCREW, TAPPING
|
||||
| # 40 |
90202-05X00 9020205X00 9020205X00 |
WASHER, PLATE
|
||||
| # 41 |
BR6-F8398-00 BR6F839800 BR6F839800 |
GRAPHIC 5
|
||||
| # 42 |
BR6-F834C-20 BR6F834C20 BR6F834C20 |
EMBLEM 1
|
||||
| # 43 |
BR6-F8399-00 BR6F839900 BR6F839900 |
GRAPHIC 6
|
||||
| # 44 |
BR6-F835C-20 BR6F835C20 BR6F835C20 |
EMBLEM 2
|

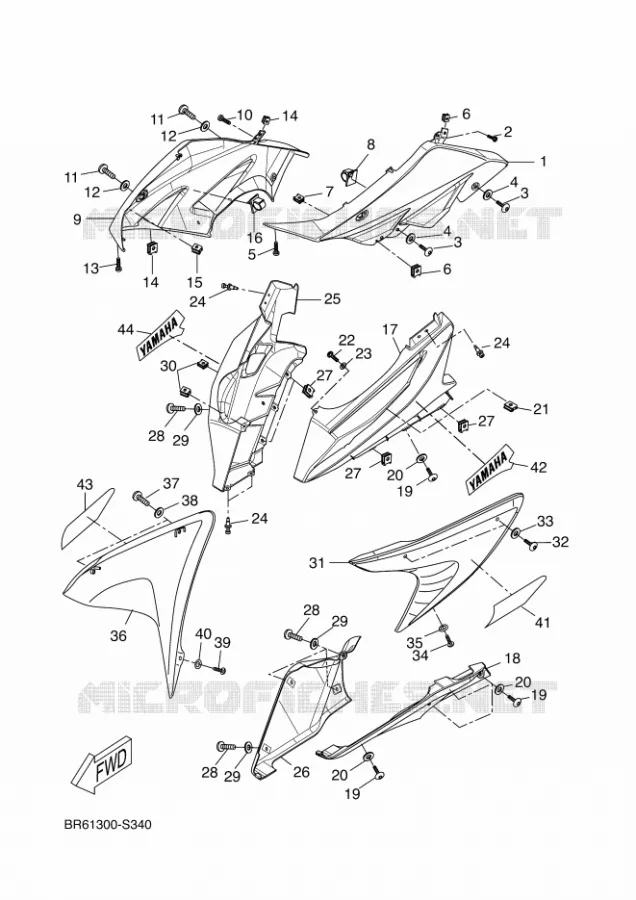

Yamaha YZF-R125A
Cilinderinhoud: 125 Jaar: 2017 Model code BR61 Kleur: DEEP PURPLISH BLUE METALLIC 13
