| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
5D7-F4110-51 5D7F411051 5D7F411051 |
FUEL TANK COMP
|
||||
| # 2 |
5D7-E3907-40 5D7E390740 5D7E390740 |
FUEL PUMP COMP
|
||||
| # 3 |
5D7-H5752-10 5D7H575210 5D7H575210 |
SENDER UNIT ASSY
|
||||
| # 4 |
54P-F414G-10 54PF414G10 54PF414G10 |
SEAL
|
||||
| # 5 |
5D7-F4491-00 5D7F449100 5D7F449100 |
BRACKET FUEL PUMP
|
||||
| # 6 |
90176-06X01 9017606X01 9017606X01 |
NUT, CROWN
|
||||
| # 7 |
90445-10X01 9044510X01 9044510X01 |
HOSE
|
||||
| # 8 |
90480-16801 9048016801 9048016801 |
GROMMET
|
||||
| # 9 |
90467-10X01 9046710X01 9046710X01 |
CLIP
|
||||
| # 10 |
4SB-F174X-50 4SBF174X50 4SBF174X50 |
DAMPER
|
||||
| # 11 |
90480-01400 9048001400 9048001400 |
GROMMET(38W)
|
||||
| # 12 |
90387-07598 9038707598 9038707598 |
COLLAR (1T2)
|
||||
| # 13 |
90201-06X02 9020106X02 9020106X02 |
WASHER PLAIN
|
||||
| # 14 |
90110-06X22 9011006X22 9011006X22 |
BOLT, HEXAGONAL SOCKET
|
||||
| # 15 |
5D7-F411A-01-P5 5D7F411A01P5 5D7F411A01P5 |
OUTER PANEL 1 DPBM13
|
||||
| # 16 |
5D7-F4129-01-P6 5D7F412901P6 5D7F412901P6 |
COVER TANK SIDE 1 DPBM13
|
||||
| # 17 |
5D7-F4139-01-P6 5D7F413901P6 5D7F413901P6 |
COVER TANK SIDE 2 DPBM13
|
||||
| # 18 |
97707-40010 9770740010 9770740010 |
SCREW, TRUSS TAP.
|
||||
| # 19 |
90183-05X00 9018305X03009018305X00 |
NUT SPRING
|
||||
| # 20 |
90167-05X02 9016705X02 9016705X02 |
SCREW, TAPPING
|
||||
| # 21 |
90201-05X09 9020105X09 9020105X09 |
WASHER, PLATE
|
||||
| # 22 |
4SB-F174X-50 4SBF174X50 4SBF174X50 |
DAMPER
|
||||
| # 23 |
4SB-F174X-20 4SBF174X20 4SBF174X20 |
DAMPER
|
||||
| # 24 |
5D7-F4191-00 5D7F419100 5D7F419100 |
BRACKET FUEL
|
||||
| # 25 |
5D7-F414G-10 5D7F414G10 5D7F414G10 |
SEAL
|
||||
| # 26 |
97707-40016 9770740016 9770740016 |
SCREW, TRUSS TAP.
|
||||
| # 27 |
90201-06X02 9020106X02 9020106X02 |
WASHER PLAIN
|
||||
| # 28 |
90480-13X04 9048013X04 9048013X04 |
GROMMET
|
||||
| # 28 |
90480-13X05 9048013X05 9048013X05 |
GROMMET
|
||||
| # 29 |
90387-06X45 9038706X45 9038706X45 |
COLLAR
|
||||
| # 30 |
90201-08X09 9020108X09 9020108X09 |
WASHER PLATE
|
||||
| # 31 |
90201-06X02 9020106X02 9020106X02 |
WASHER PLAIN
|
||||
| # 32 |
5JH-F6294-00 5JHF629400 5JHF629400 |
NUT 1
|
||||
| # 33 |
5D7-F4495-00 5D7F449500 5D7F449500 |
SHAFT
|
||||
| # 34 |
5D7-F413Y-00 5D7F413Y00 5D7F413Y00 |
BRACKET, TANK FITT
|
||||
| # 35 |
90201-06X01 9020106X01 9020106X01 |
WASHER, PLAIN
|
||||
| # 36 |
90154-06X02 9015406X02 9015406X02 |
SCREW, BINDING
|
||||
| # 37 |
5D7-F4602-02 5D7F460202 5D7F460202 |
CAP ASSY
|
||||
| # 38 |
5VK-F413B-01 5VKF413B01 5VKF413B01 |
EMBLEM
|
||||
| # 39 |
BL1-F817K-00 BL1F817K00 BL1F817K00 |
LABEL FUEL
|
||||
| # 40 |
5D7-F1568-02 5D7F156802 5D7F156802 |
LABEL WARNING
|
||||
| # 41 |
5D7-F3469-00 5D7F346900 5D7F346900 |
BOLT CAP
|

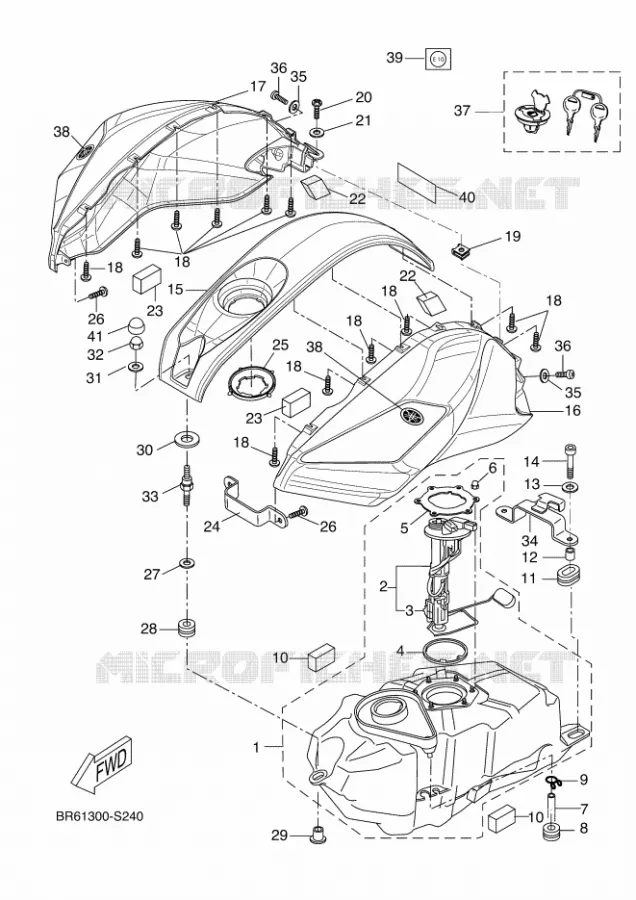

Yamaha YZF-R125A
Cilinderinhoud: 125 Jaar: 2017 Model code BR61 Kleur: DEEP PURPLISH BLUE METALLIC 13
