Winkelwagen
| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
1TP-14610-01 1TP1461001 1TP1461001 |
EXHAUST PIPE ASSY 1
|
||||
| # 2 |
1TP-1465T-01 1TP1465T01 1TP1465T01 |
PLATE, PROTECTOR 2
|
||||
| # 3 |
1TP-1465U-00 1TP1465U00 1TP1465U00 |
PLATE, PROTECTOR 3
|
||||
| # 4 |
90111-06148 9011106148 9011106148 |
BOLT, HEX. SOCKET BUTTON
|
||||
| # 5 |
1XC-14710-01 1XC1471001 1XC1471001 |
MUFFLER ASSY 1
|
||||
| # 6 |
1XC-14711-00 1XC1471100 1XC1471100 |
MUFFLER 1
|
||||
| # 7 |
91314-08040 9131408040 9131408040 |
BOLT, SOCKET
|
||||
| # 8 |
5S7-14715-00 5S71471500 5S71471500 |
BAND, MUFFLER
|
||||
| # 9 |
5YU-14755-00 5YU1475500 5YU1475500 |
GASKET, SILENCER
|
||||
| # 10 |
1TP-14728-00 1TP1472800 1TP1472800 |
PROTECTOR, MUFFLER 2
|
||||
| # 11 |
1TP-14738-00 1TP1473800 1TP1473800 |
PROTECTOR, MUFFLER 3
|
||||
| # 12 |
1TP-14748-00 1TP1474800 1TP1474800 |
PROTECTOR, MUFFLER 4
|
||||
| # 13 |
1TP-14799-01 1TP1479901 1TP1479901 |
CAP
|
||||
| # 14 |
90111-06148 9011106148 9011106148 |
BOLT, HEX. SOCKET BUTTON
|
||||
| # 15 |
1TP-14772-00 1TP1477200 1TP1477200 |
STAY, MUFFLER 2
|
||||
| # 16 |
90111-10006 9011110006 9011110006 |
BOLT
|
||||
| # 17 |
5D1-8592A-00 5D18592A00 5D18592A00 |
SENSOR
|
||||
| # 18 |
3EG-14613-00 3EG1461300 3EG1461300 |
GASKET, EXHAUST PIPE
|
||||
| # 19 |
1TP-14615-00 1TP1461500 1TP1461500 |
JOINT, EXHAUST 1
|
||||
| # 20 |
90176-08012 9017608012 9017608012 |
NUT, CROWN
|
||||
| # 21 |
1TP-1468W-00 1TP1468W00 1TP1468W00 |
PLATE, SILENCER 3
|
||||
| # 22 |
95880-06010 9588006010 9588006010 |
BOLT, FLANGE(7HT)
|
||||
| # 23 |
90176-08006 9017608006 9017608006 |
NUT, CROWN
|
||||
| # 24 |
90105-08251 9010508251 9010508251 |
BOLT, FLANGE
|
||||
| # 25 |
90110-10042 9011010042 9011010042 |
BOLT, HEXAGON SOCKET HEAD
|
||||
| # 26 |
90110-10038 9011010038 9011010038 |
BOLT, HEXAGON SOCKET HEAD
|
||||
| # 27 |
1TP-1465R-01 1TP1465R01 1TP1465R01 |
PLATE, PROTECTOR 1
|
||||
| # 28 |
90111-06148 9011106148 9011106148 |
BOLT, HEX. SOCKET BUTTON
|

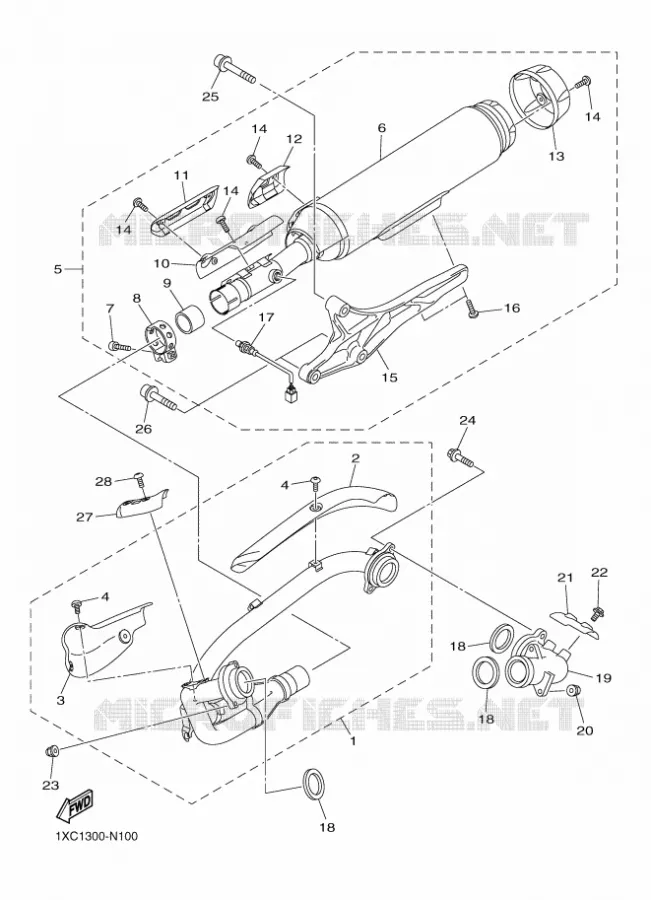

Yamaha XVS950CR
Cilinderinhoud: 950 Jaar: 2016 Model code B33M Kleur: MAT GRAY METALLIC 3
