Winkelwagen
| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
1HP-E2576-00 1HPE257600 1HPE257600 |
HOSE 1
|
||||
| # 2 |
90467-26189 9046726189 9046726189 |
CLIP
|
||||
| # 3 |
1HP-E2578-00 1HPE257800 1HPE257800 |
HOSE 3
|
||||
| # 4 |
90467-26189 9046726189 9046726189 |
CLIP
|
||||
| # 5 |
5VK-12410-00 5VK1241001005VK1241000 |
ENS. THERMOSTAT
|
||||
| # 6 |
1S3-12413-00 1S31241300 1S31241300 |
COVER, THERMOSTAT
|
||||
| # 7 |
90430-06014 9043006014 9043006014 |
GASKET 256113960000
|
Contact | |||
| # 8 |
95022-06010 9502206010 9502206010 |
BOLT, FLANGE
|
||||
| # 9 |
95022-06020 9502206020 9502206020 |
BOLT, FLANGE
|
||||
| # 10 |
95022-06045 9502206045 9502206045 |
BOLT, FLANGE
|
||||
| # 11 |
93210-41042 9321041042 9321041042 |
O-RING (132)
|
||||
| # 12 |
B16-E2460-00 B16E24600100B16E246000 |
RADIATEUR COMPLET
|
||||
| # 13 |
B16-E2405-00 B16E24050100B16E240500 |
ENS. VENTILATEUR
|
||||
| # 14 |
1HP-E2535-00 1HPE253500 1HPE253500 |
NUT SPRING
|
||||
| # 15 |
1HP-E2675-00 1HPE267500 1HPE267500 |
BOLT, BLOWER HOLDI
|
||||
| # 16 |
1XD-E2462-00 1XDE246200 1XDE246200 |
CAP, RADIATOR
|
||||
| # 17 |
90480-15235 9048015235 9048015235 |
GROMMET
|
||||
| # 18 |
95812-06020 9581706020009581206020 |
BOLT, FLANGE
|
||||
| # 19 |
90209-06012 9020906012 9020906012 |
WASHER
|
||||
| # 20 |
90387-06113 9038706113 9038706113 |
COLLAR
|

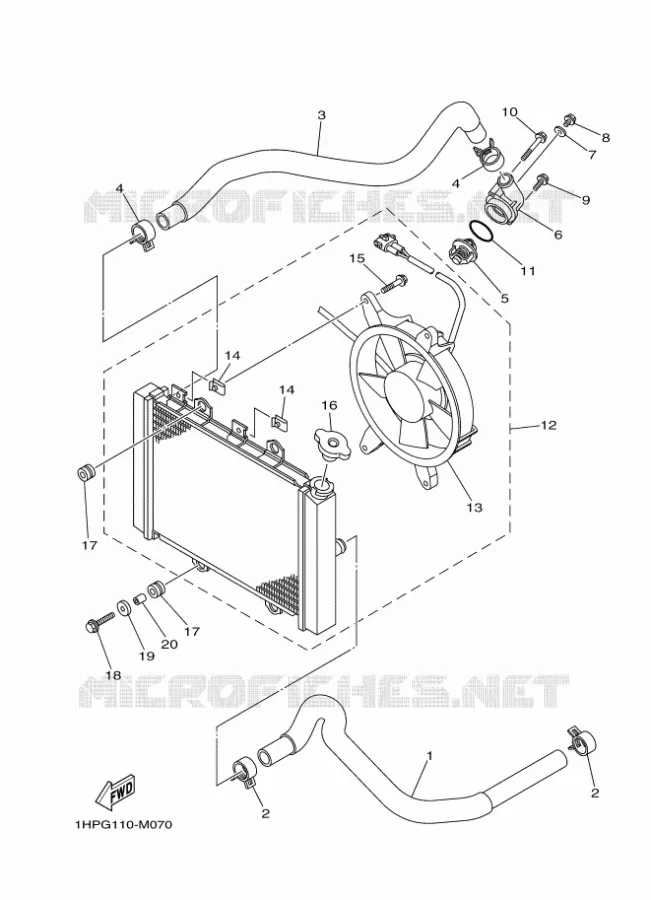

Yamaha YFM700FWADYFM700PSFGRIZZLY EPS SE
Cilinderinhoud: 700 Jaar: 2015 Model code B38A Kleur: MAT SILVER 1
