| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
BU3-F1110-10 BU3F111010 BU3F111010 |
FRAME COMP
|
Contact | |||
| # 2 |
1SD-F2869-00 1SDF286900 1SDF286900 |
MOLE
|
||||
| # 3 |
B34-F1190-00 B34F119000 B34F119000 |
REAR FRAME COMP
|
||||
| # 4 |
90110-08111 9011008111 9011008111 |
BOLT, HEXAGON SOCKET HEAD
|
||||
| # 5 |
1WS-2191B-00 1WS2191B00 1WS2191B00 |
PLATE 1
|
||||
| # 6 |
B34-F1349-10 B34F134910 B34F134910 |
BRACKET SEAT
|
||||
| # 7 |
3B4-24182-00 3B42418200 3B42418200 |
DAMPER, LOCATING 2
|
||||
| # 8 |
92017-06012 9201706012 9201706012 |
BOLT, BUTTON HEAD
|
||||
| # 9 |
90105-10219 9010510219 9010510219 |
BOLT, FLANGE
|
||||
| # 10 |
90105-10349 9010510349 9010510349 |
BOLT, FLANGE
|
||||
| # 11 |
90179-10024 9017910024 9017910024 |
NUT
|
||||
| # 12 |
90201-10035 9020110035 9020110035 |
WASHER, PLATE
|
||||
| # 13 |
90105-12092 9010512092 9010512092 |
BOLT, FLANGE
|
||||
| # 14 |
90201-13020 9020113020 9020113020 |
WASHER, PLATE
|
||||
| # 15 |
1WS-21315-00 1WS2131500 1WS2131500 |
STAY, ENGINE 1
|
||||
| # 16 |
1WS-21316-00 1WS2131600 1WS2131600 |
STAY, ENGINE 2
|
||||
| # 17 |
90110-10044 9011010044 9011010044 |
BOLT, HEXAGON SOCKET HEAD
|
||||
| # 18 |
90110-08111 9011008111 9011008111 |
BOLT, HEXAGON SOCKET HEAD
|
||||
| # 19 |
90520-20004 9052020004 9052020004 |
DAMPER, PLATE
|
||||
| # 20 |
90520-20003 9052020003 9052020003 |
DAMPER, PLATE
|
||||
| # 21 |
B34-F1946-00 B34F194600 B34F194600 |
BRACKET SEAT FITTING
|
||||
| # 22 |
92017-06012 9201706012 9201706012 |
BOLT, BUTTON HEAD
|
||||
| # 23 |
90183-05X04 9018305X04 9018305X04 |
NUT SPRING
|
||||
| # 24 |
B34-21158-00 B342115800 B342115800 |
BRACKET
|
||||
| # 25 |
90480-30167 9048030167 |
GROMMET
|
Contact | |||
| # 26 |
95702-06500 9578006500009570206500 |
NUT, FLANGE(7NB)
|
||||
| # 27 |
90111-06122 9011106122 9011106122 |
BOLT, HEX. SOCKET BUTTON
|
||||
| # 28 |
1WS-2161J-00 1WS2161J00 1WS2161J00 |
BRACKET 8
|
||||
| # 29 |
92017-06010 9201706010 9201706010 |
BOLT, BUTTON HEAD
|
||||
| # 30 |
B34-2175U-00 B342175U00 B342175U00 |
BRACKET 2
|
||||
| # 31 |
90269-07077 9026907077 9026907077 |
RIVET(4PH)
|
||||
| # 32 |
1WS-2117R-00 1WS2117R00 1WS2117R00 |
COVER 4
|
||||
| # 33 |
1HX-27415-00 1HX2741500 1HX2741500 |
PLATE, FOOTREST
|
||||
| # 34 |
1WS-2117T-00 1WS2117T00 1WS2117T00 |
COVER 5
|
||||
| # 35 |
1HX-27415-00 1HX2741500 1HX2741500 |
PLATE, FOOTREST
|
||||
| # 36 |
95807-06012 9581706012009580706012 |
BOLT, FLANGE
|
||||
| # 37 |
90387-062M9 90387062M9 90387062M9 |
C0LLAR
|
||||
| # 38 |
1XB-21288-00 1XB2128800 1XB2128800 |
GUIDE, CABLE
|
||||
| # 39 |
95027-06010 9502706010 9502706010 |
BOLT, FLANGE(4MY)
|
||||
| # 40 |
BCN-F111A-00 BCNF111A00 BCNF111A00 |
CAP MAIN PIPE
|
||||
| # 41 |
3HA-24141-00 3HA2414100 3HA2414100 |
PROTECTOR, FUEL TANK
|
||||
| # 42 |
B2G-23376-00 B2G2337600 B2G2337600 |
STOPPER
|
||||
| # 43 |
B2G-23429-00 B2G2342900 B2G2342900 |
STOPPER
|
||||
| # 44 |
B34-H1952-00 B34H195200 B34H195200 |
HOLDER RELAY
|
||||
| # 45 |
90183-05X04 9018305X04 9018305X04 |
NUT SPRING
|
||||
| # 46 |
90387-1001B 903871001B 903871001B |
COLLAR
|
||||
| # 47 |
90119-06209 9011906209 9011906209 |
BOLT, WITH WASHER
|
||||
| # 48 |
95822-06012 9581206012009582206012 |
BOLT, FLANGE
|
||||
| # 49 |
90387-06372 9038706372 9038706372 |
COLLAR
|
||||
| # 50 |
90269-06002 9026906002 9026906002 |
RIVET
|
||||
| # 51 |
B34-F835Y-00 B34F835Y00 B34F835Y00 |
LABEL CAUTION
|

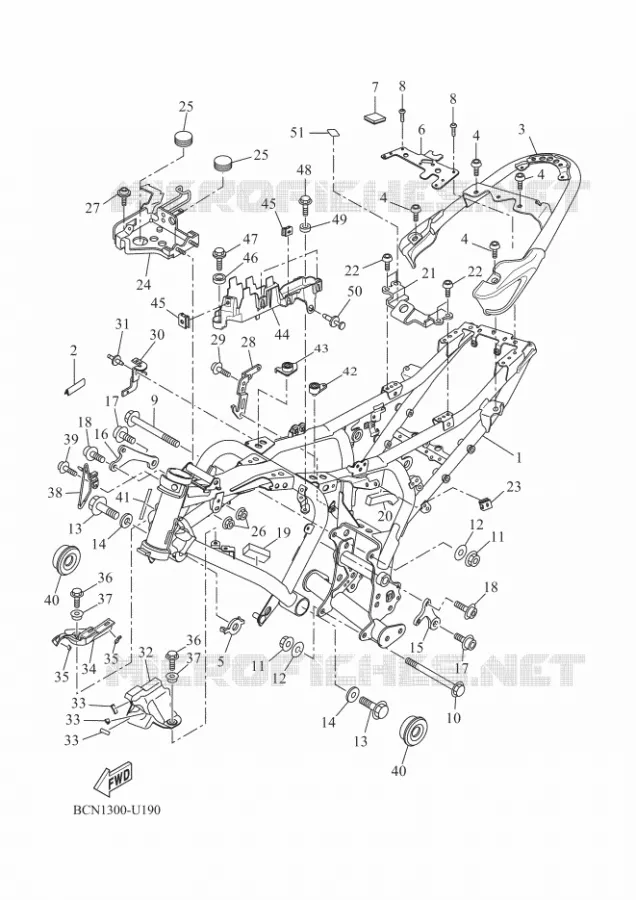

Yamaha MTM690D
Cilinderinhoud: 700 Jaar: 2019 Model code BCN1 Kleur: MAT DARK GRAY METALLIC 6 (MDNM6)
