| # 1 |
B0K-F5338-20 B0KF533820 B0KF533820 |
ROUE COULEE, AR
|
Contact | |||
| # 2 |
93306-20480 9330620480 9330620480 |
BEARING
|
||||
| # 3 |
93102-28022 9310228022 9310228022 |
OIL SEAL (28X47X7-102)
|
||||
| # 4 |
93306-00416 9330600444009330600416 |
BEARING(8AB)
|
||||
| # 5 |
B0K-F53W0-00 B0KF53W000 B0KF53W000 |
SPACER ASSY
|
||||
| # 6 |
* * * |
PNEU
|
Contact | |||
| # 7 |
93900-00030 9390000030 9390000030 |
VALVE, RIM(2GH)
|
||||
| # 8 |
5MT-25398-00 5MT2539800 5MT2539800 |
BALANCER, WHEEL
|
||||
| # 8 |
5MT-25398-10 5MT2539810 5MT2539810 |
BALANCER, WHEEL
|
||||
| # 8 |
5MT-25398-20 5MT2539820 5MT2539820 |
BALANCER, WHEEL
|
||||
| # 9 |
5JJ-25366-00 5JJ2536600 5JJ2536600 |
CLUTCH, HUB
|
||||
| # 10 |
93306-205B5 93306205B5 93306205B5 |
BEARING
|
||||
| # 11 |
1RC-25383-00 1RC2538300 1RC2538300 |
COLLAR, WHEEL
|
||||
| # 12 |
93106-40013 9310640013 9310640013 |
OIL SEAL
|
||||
| # 13 |
B0K-F5443-00 B0KF544300 B0KF544300 |
SPROCKET RR WHEEL
|
||||
| # 14 |
90116-10048 9011610048 9011610048 |
BOLT, STUD
|
||||
| # 15 |
90185-10011 9018510011 9018510011 |
NUT, SELF-LOCKING
|
||||
| # 16 |
1WS-2537W-00 1WS2537W00 1WS2537W00 |
BRACKET 1
|
||||
| # 17 |
90201-10045 9020110045 9020110045 |
WASHER, PLATE
|
||||
| # 18 |
5SL-25364-00 5SL2536400 5SL2536400 |
DAMPER
|
||||
| # 19 |
90387-20036 9038720036 9038720036 |
COLLAR
|
||||
| # 20 |
90387-20035 9038720035 9038720035 |
COLLAR
|
||||
| # 21 |
94582-40108 94A4016108009458240108 |
SET, CHAIN
|
||||
| # 22 |
1WS-25388-00 1WS2538800 1WS2538800 |
PULLER, CHAIN 1
|
||||
| # 23 |
B34-22174-00 B342217400 B342217400 |
END 1
|
||||
| # 24 |
B34-22175-00 B342217500 B342217500 |
END 1
|
||||
| # 25 |
95302-08600 9530208600 9530208600 |
NUT
|
Contact | |||
| # 26 |
92902-08600 9299008600009290208600 |
WASHER, PLAIN (663)
|
||||
| # 27 |
4FN-22141-00 4FN2214100 4FN2214100 |
SHAFT, PIVOT
|
||||
| # 28 |
90185-18009 9018518009 9018518009 |
NUT, SELF-LOCKING
|
||||
| # 29 |
90201-18021 9020118021 9020118021 |
WASHER, PLATE
|
||||
| # 30 |
1WS-2538D-10 1WS2538D10 1WS2538D10 |
COVER, REAR AXLE 1
|
||||
| # 31 |
1WS-2538N-10 1WS2538N10 1WS2538N10 |
COVER, REAR AXLE 2
|

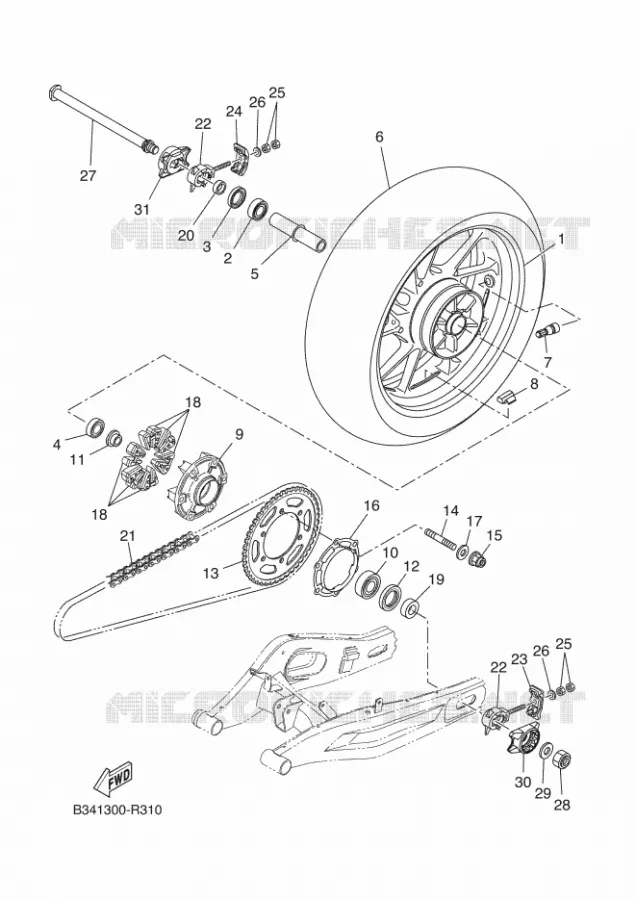

Yamaha MTM690D
Cilinderinhoud: 700 Jaar: 2019 Model code BCN1 Kleur: MAT DARK GRAY METALLIC 6 (MDNM6)
