| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
5LP-23570-30 5LP2357030 5LP2357030 |
FRONT LOWER ARM COMP. (LEFT)
|
Contact | |||
| # 2 |
5LP-23579-00 5LP2357900 5LP2357900 |
BALL JOINT
|
||||
| # 3 |
99009-30400 9900930400 9900930400 |
CIRCLIP(4A6)
|
||||
| # 4 |
5LP-23580-30 5LP2358030 5LP2358030 |
FRONT LOWER ARM COMP. (RIGHT)
|
Contact | |||
| # 5 |
5LP-23579-00 5LP2357900 5LP2357900 |
BALL JOINT
|
||||
| # 6 |
99009-30400 9900930400 9900930400 |
CIRCLIP(4A6)
|
||||
| # 7 |
5LP-23540-40 5LP2354040 5LP2354040 |
FRONT UPPER ARM COMP. (LEFT)
|
||||
| # 8 |
5LP-23550-40 5LP2355040 5LP2355040 |
FRONT UPPER ARM COMP. (RIGHT)
|
||||
| # 9 |
90381-15088 9038115088 9038115088 |
BUSH, SOLID(3GG)
|
||||
| # 10 |
90381-15088 9038115088 9038115088 |
BUSH, SOLID(3GG)
|
||||
| # 11 |
90387-101R3 90387101R3 90387101R3 |
COLLAR(1UY)
|
||||
| # 12 |
90387-10002 9038710002 9038710002 |
COLLAR
|
||||
| # 13 |
1UY-23517-00 1UY2351701001UY2351700 |
COVER, THRUST 1
|
||||
| # 14 |
1UY-23517-00 1UY2351701001UY2351700 |
COVER, THRUST 1
|
||||
| # 15 |
90105-10034 9010510034 9010510034 |
BOLT, WASHER BASED
|
||||
| # 16 |
90105-10407 9010510407 9010510407 |
BOLT, WASHER BASED(1UF)
|
||||
| # 17 |
90201-10430 90201100F7009020110430 |
WASHER (7A9)
|
||||
| # 18 |
90201-10430 90201100F7009020110430 |
WASHER (7A9)
|
||||
| # 19 |
90185-10060 9018510060 9018510060 |
NUT, SELFLOCKING (533 FRAME)
|
||||
| # 20 |
90185-10120 9018510120 9018510120 |
NUT, SELF LOCKING (23X)
|
||||
| # 21 |
93700-06004 9370006M03009370006004 |
NIPPLE, GREASE(6A1)
|
||||
| # 22 |
93700-06004 9370006M03009370006004 |
NIPPLE, GREASE(6A1)
|
||||
| # 23 |
5LP-23350-01 5LP2335001 5LP2335001 |
SHOCK ABSORBER ASSY
|
Contact | |||
| # 24 |
3GG-23372-00 3GG2337200 3GG2337200 |
BUSH, SUSPENSION
|
||||
| # 25 |
90105-10388 9010510388 9010510388 |
BOLT, WASHER BASED(59V)
|
||||
| # 26 |
90185-10060 9018510060 9018510060 |
NUT, SELFLOCKING (533 FRAME)
|
||||
| # 27 |
5LP-23501-00 5LP2350100 5LP2350100 |
STEERING KNUCKLE ASSY (LEFT)
|
Contact | |||
| # 28 |
5LP-23502-00 5LP2350200 5LP2350200 |
STEERING KNUCKLE ASSY (RIGHT)
|
||||
| # 29 |
90171-10046 9017110001009017110046 |
NUT, CASTLE
|
||||
| # 30 |
90209-10229 9020910229 9020910229 |
WASHER (25G)
|
||||
| # 31 |
91401-20020 9149020025009140120020 |
PIN, COTTER
|
||||
| # 32 |
5LP-25875-00 5LP2587500 5LP2587500 |
HOLDER, BRAKE HOSE 1
|
||||
| # 33 |
5LP-25876-00 5LP2587600 5LP2587600 |
HOLDER, BRAKE HOSE 2
|
Contact | |||
| # 34 |
95027-06016 9010506696009502706016 |
BOLT, WASHER BASED(JA9)
|
||||
| # 35 |
90387-081R2 90387062M90090387081R2 |
C0LLAR
|
||||
| # 36 |
3SP-21732-00 3SP2173200 3SP2173200 |
SEAL 1
|

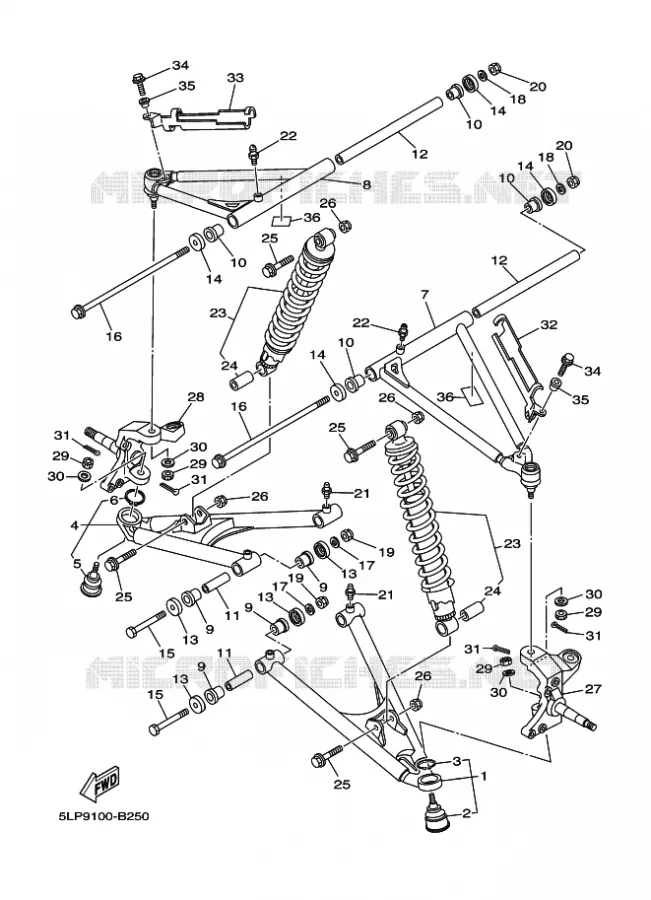

Yamaha YFM660R YFM660RT
Cilinderinhoud: 660 Jaar: 2005 Model code 5LPS Kleur: DEEP PURPLISH BLUE SOLID E
