| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
5LP-15411-00 5LP1541100 5LP1541100 |
COVER, CRANKCASE 1
|
Contact | |||
| # 2 |
5LP-15451-00 5LP1545100 5LP1545100 |
GASKET, CRANKCASE COVER 1
|
||||
| # 3 |
99530-12016 9953012016 9953012016 |
PIN, DOWEL
|
||||
| # 4 |
95027-06030 9502706030 9502706030 |
BOLT, SMALL FLANGE
|
||||
| # 5 |
90105-06032 9502706040009010506032 |
BOLT, SMALL FLANGE
|
||||
| # 6 |
90465-08122 9046508122 9046508122 |
CLAMP(51Y)
|
||||
| # 7 |
5LP-13487-00 5LP1348700 5LP1348700 |
GUIDE, OIL HOSE
|
Contact | |||
| # 8 |
93210-13361 9321013361 9321013361 |
O-RING (2H7)
|
||||
| # 9 |
90340-14128 9034014128 9034014128 |
PLUG, STRAIGHT SCREW(3RW)
|
||||
| # 10 |
93210-14369 9321014369 9321014369 |
O-RING (2H9)
|
||||
| # 11 |
90340-36121 9034036121 9034036121 |
PLUG, STRAIGHT SCREW(2WK)
|
||||
| # 12 |
93210-357A3 93210358040093210357A3 |
O-RING
|
||||
| # 13 |
5LP-15113-00 5LP1511300 5LP1511300 |
PLATE
|
Contact | |||
| # 14 |
95027-06014 9502206014009502706014 |
BOLT, FLANGE
|
||||
| # 15 |
5LP-15421-01 5LP1542101 5LP1542101 |
COVER, CRANKCASE 2
|
||||
| # 16 |
5LP-17466-00 5LP1746600 5LP1746600 |
GUIDE, CHAIN
|
||||
| # 17 |
91317-06025 9131706025 9131706025 |
BOLT, SOCKET
|
||||
| # 18 |
5LP-15431-00 5LP1543100 5LP1543100 |
COVER, CRANKCASE 3
|
Contact | |||
| # 19 |
5LP-15462-00 5LP1546200 5LP1546200 |
GASKET, CRANKCASE COVER 3
|
||||
| # 20 |
99530-12016 9953012016 9953012016 |
PIN, DOWEL
|
||||
| # 21 |
95027-06025 90105060A0009502706025 |
BOLT, WASHER BASED(4KG)
|
||||
| # 22 |
95027-06030 9502706030 9502706030 |
BOLT, SMALL FLANGE
|
||||
| # 23 |
95027-06035 9502706035 9502706035 |
BOLT, SMALL FLANGE
|
||||
| # 24 |
95027-06050 9010506798009502706050 |
BOLT, WASHER BASED(4KG)
|
||||
| # 25 |
5LP-15441-00 5LP1544100 5LP1544100 |
HOLDER, CLUTCH CABLE
|
Contact | |||
| # 26 |
93101-14092 9310114092 9310114092 |
OIL SEAL (3Y1)
|
||||
| # 27 |
5LP-15415-00 5LP1541500 5LP1541500 |
COVER, GENERATOR
|
||||
| # 28 |
99530-08016 9180816023009953008016 |
PIN, DOWEL(3XW)
|
||||
| # 29 |
95027-06035 9502706035 9502706035 |
BOLT, SMALL FLANGE
|
||||
| # 30 |
95027-06025 90105060A0009502706025 |
BOLT, WASHER BASED(4KG)
|
||||
| # 31 |
5LP-15455-00 5LP1545500 5LP1545500 |
GASKET 1
|

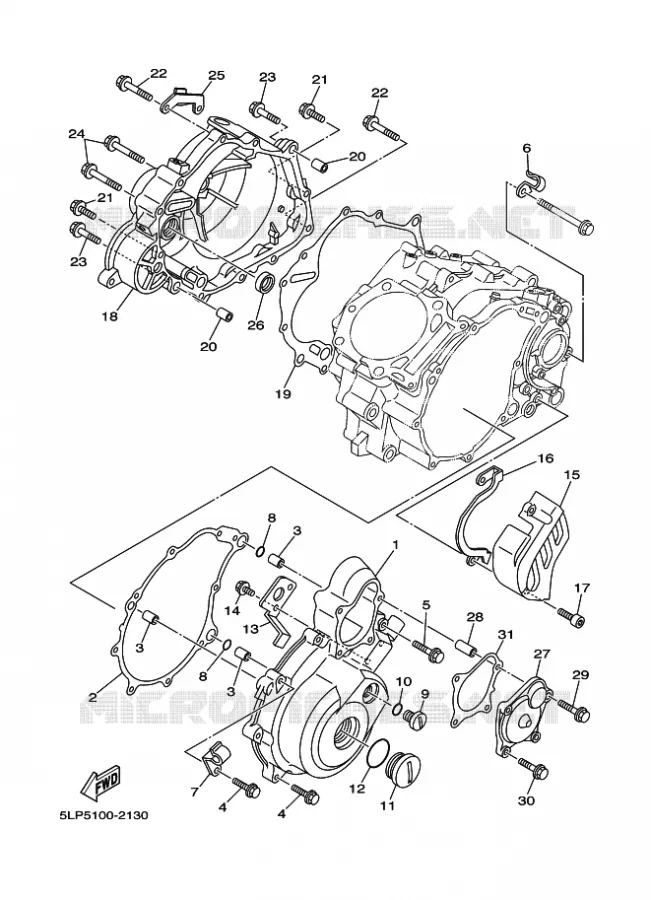

Yamaha YFM660R YFM660RT
Cilinderinhoud: 660 Jaar: 2005 Model code 5LPS Kleur: DEEP PURPLISH BLUE SOLID E
