| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
5KM-25180-41 5KM2518041 |
WHEEL COMP.
|
Contact | |||
| # 2 |
94108-12009 2C62510K09009410812009 |
TIRE
|
||||
| # 3 |
93900-00030 9390000030 9390000030 |
VALVE, RIM(2GH)
|
||||
| # 4 |
90179-10007 9017910007 9017910007 |
NUT
|
||||
| # 5 |
5KM-2512A-00 5KM2512A00 5KM2512A00 |
CAP, WHEEL
|
||||
| # 6 |
5KM-2510F-11 5KM2510F11 5KM2510F11 |
BALL JOINT SET
|
||||
| # 7 |
5KM-2510G-11 5KM2510G11 5KM2510G11 |
BOOT SET (BALL JOINT)
|
||||
| # 8 |
5KM-2510H-10 5KM2510H10 5KM2510H10 |
BOOT SET (DOUBLE OFFSET JOINT)
|
||||
| # 9 |
5KM-2510J-30 5KM2510J30 5KM2510J30 |
DOUBLE OFF SET JOINT
|
||||
| # 10 |
3HN-2512G-01 3HN2512G01 3HN2512G01 |
BOOT BAND (SMALL)
|
||||
| # 11 |
2HR-2512J-00 2HR2512J00 2HR2512J00 |
SNAP RING
|
||||
| # 12 |
4KB-2512H-00 4KB2512H00 4KB2512H00 |
CIRCLIP
|
||||
| # 13 |
3HN-2511G-01 3HN2511G01 3HN2511G01 |
BOOT BAND (BALL JOINT)
|
||||
| # 14 |
5KM-45531-10 5KM4553110 5KM4553110 |
CLIP, DRIVE SHAFT
|
||||
| # 15 |
5KM-23501-10 5KM2350111005KM2350110 |
STEERING KNUCKLE ASSY (LEFT)
|
||||
| # 16 |
93305-00601 9330500602009330500601 |
BEARING
|
||||
| # 17 |
99009-55500 9900955500 9900955500 |
CIRCLIP
|
||||
| # 18 |
5KM-25111-10 5KM2511110 5KM2511110 |
HUB, FRONT
|
||||
| # 19 |
90114-10010 9011410014009011410010 |
BOLT, SERRATION
|
||||
| # 20 |
90179-20006 9017920016009017920006 |
NUT
|
||||
| # 21 |
5KM-25180-41 5KM2518041 |
WHEEL COMP.
|
Contact | |||
| # 22 |
94108-12009 2C62510K09009410812009 |
TIRE
|
||||
| # 23 |
93900-00030 9390000030 9390000030 |
VALVE, RIM(2GH)
|
||||
| # 24 |
90179-10007 9017910007 9017910007 |
NUT
|
||||
| # 25 |
5KM-2512A-00 5KM2512A00 5KM2512A00 |
CAP, WHEEL
|
||||
| # 26 |
5KM-2510F-11 5KM2510F11 5KM2510F11 |
BALL JOINT SET
|
||||
| # 27 |
5KM-2510G-11 5KM2510G11 5KM2510G11 |
BOOT SET (BALL JOINT)
|
||||
| # 28 |
5KM-2510H-10 5KM2510H10 5KM2510H10 |
BOOT SET (DOUBLE OFFSET JOINT)
|
||||
| # 29 |
5KM-2510J-20 5KM2510J20 5KM2510J20 |
DOUBLE OFF SET JOINT
|
||||
| # 30 |
3HN-2512G-01 3HN2512G01 3HN2512G01 |
BOOT BAND (SMALL)
|
||||
| # 31 |
2HR-2512J-00 2HR2512J00 2HR2512J00 |
SNAP RING
|
||||
| # 32 |
4KB-2512H-00 4KB2512H00 4KB2512H00 |
CIRCLIP
|
||||
| # 33 |
3HN-2511G-01 3HN2511G01 3HN2511G01 |
BOOT BAND (BALL JOINT)
|
||||
| # 34 |
93450-22119 9345022119 9345022119 |
CIRCLIP(2HR)
|
||||
| # 35 |
5KM-23502-10 5KM2350211005KM2350210 |
STEERING KNUCKLE ASSY (RIGHT)
|
||||
| # 36 |
93305-00601 9330500602009330500601 |
BEARING
|
||||
| # 37 |
99009-55500 9900955500 9900955500 |
CIRCLIP
|
||||
| # 38 |
5KM-25111-10 5KM2511110 5KM2511110 |
HUB, FRONT
|
||||
| # 39 |
90114-10010 9011410014009011410010 |
BOLT, SERRATION
|
||||
| # 40 |
90179-20006 9017920016009017920006 |
NUT
|

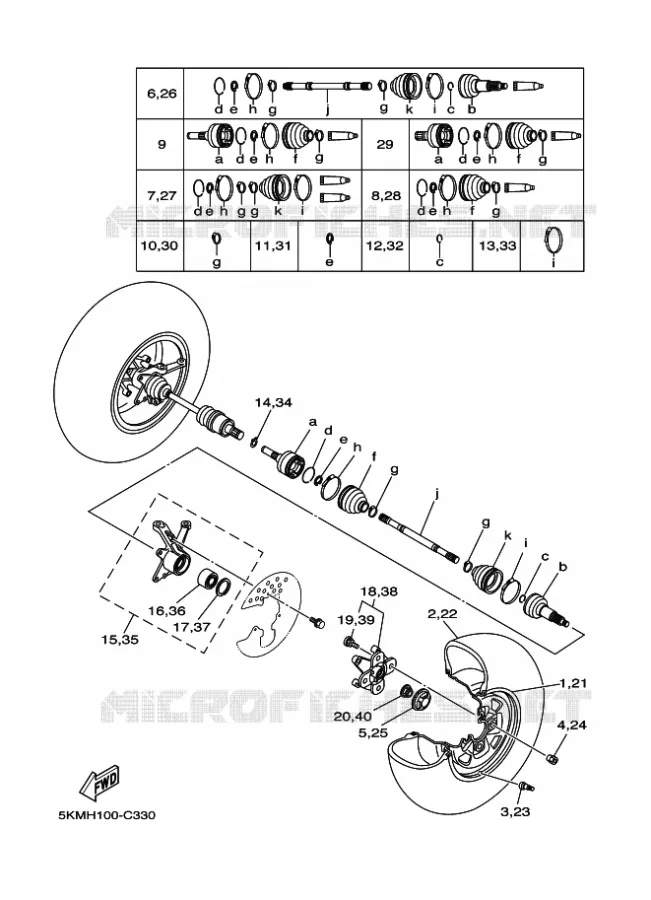

Yamaha YFM660FWA YFM660FS GRIZZLY
Cilinderinhoud: 660 Jaar: 2004 Model code 5KMK Kleur: ROMANTIQUE ROUGE
