| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
5KM-25390-41 5KM2539041 |
REAR WHEEL COMP.
|
Contact | |||
| # 2 |
94110-12009 2C62510K19009411012009 |
TIRE
|
||||
| # 3 |
93900-00030 9390000030 9390000030 |
VALVE, RIM(2GH)
|
||||
| # 4 |
5KM-25311-10 5KM2531110 5KM2531110 |
HUB, REAR
|
Contact | |||
| # 5 |
90114-10010 9011410014009011410010 |
BOLT, SERRATION
|
||||
| # 6 |
90179-10007 9017910007 9017910007 |
NUT
|
||||
| # 7 |
5KM-2530U-11 5KM2530U13005KM2530U11 |
BALL JOINT SET
|
||||
| # 8 |
5KM-2530W-10 5KM2530W12005KM2530W10 |
DOUBLE OFF SET JOINT
|
||||
| # 9 |
5KM-2530X-11 5KM2530X12005KM2530X11 |
BOOT SET (BALL JOINT)
|
||||
| # 10 |
5KM-2530Y-10 5KM2530Y11005KM2530Y10 |
BOOT SET (DOUBLE OFFSET JOINT)
|
||||
| # 11 |
4KB-2512H-00 4KB2512H00 4KB2512H00 |
CIRCLIP
|
||||
| # 12 |
2HR-2512J-00 2HR2512J00 2HR2512J00 |
SNAP RING
|
||||
| # 13 |
4KB-2511H-00 4KB2511H00 4KB2511H00 |
BOOT BAND (DOUBLE OFFSET JOINT
|
||||
| # 14 |
3HN-2512G-01 3HN2512G01 3HN2512G01 |
BOOT BAND (SMALL)
|
||||
| # 15 |
3HN-2511G-01 3HN2511G01 3HN2511G01 |
BOOT BAND (BALL JOINT)
|
||||
| # 16 |
90179-20006 9017920016009017920006 |
NUT
|
||||
| # 17 |
5KM-2512A-00 5KM2512A00 5KM2512A00 |
CAP, WHEEL
|
||||
| # 18 |
5KM-25390-41 5KM2539041 |
REAR WHEEL COMP.
|
Contact | |||
| # 19 |
94110-12009 2C62510K19009411012009 |
TIRE
|
||||
| # 20 |
93900-00030 9390000030 9390000030 |
VALVE, RIM(2GH)
|
||||
| # 21 |
5KM-25311-10 5KM2531110 5KM2531110 |
HUB, REAR
|
Contact | |||
| # 22 |
90114-10010 9011410014009011410010 |
BOLT, SERRATION
|
||||
| # 23 |
90179-10007 9017910007 9017910007 |
NUT
|
||||
| # 24 |
5KM-2530T-11 5KM2530T13005KM2530T11 |
BALL JOINT SET
|
||||
| # 25 |
5KM-2530V-10 5KM2530V12005KM2530V10 |
DOUBLE OFF SET JOINT
|
||||
| # 26 |
5KM-2530X-11 5KM2530X12005KM2530X11 |
BOOT SET (BALL JOINT)
|
||||
| # 27 |
5KM-2530Y-10 5KM2530Y11005KM2530Y10 |
BOOT SET (DOUBLE OFFSET JOINT)
|
||||
| # 28 |
4KB-2512H-00 4KB2512H00 4KB2512H00 |
CIRCLIP
|
||||
| # 29 |
2HR-2512J-00 2HR2512J00 2HR2512J00 |
SNAP RING
|
||||
| # 30 |
4KB-2511H-00 4KB2511H00 4KB2511H00 |
BOOT BAND (DOUBLE OFFSET JOINT
|
||||
| # 31 |
3HN-2512G-01 3HN2512G01 3HN2512G01 |
BOOT BAND (SMALL)
|
||||
| # 32 |
3HN-2511G-01 3HN2511G01 3HN2511G01 |
BOOT BAND (BALL JOINT)
|
||||
| # 33 |
5KM-2530F-10 5KM2530F11005KM2530F10 |
REAR KNUCKLE ASSY
|
||||
| # 34 |
93305-00601 9330500602009330500601 |
BEARING
|
||||
| # 35 |
93700-06004 9370006M03009370006004 |
NIPPLE, GREASE(6A1)
|
||||
| # 36 |
90381-17067 9038117067 9038117067 |
BUSH, SOLID(2NL)
|
||||
| # 37 |
99009-55500 9900955500 9900955500 |
CIRCLIP
|
||||
| # 38 |
90179-20006 9017920016009017920006 |
NUT
|
||||
| # 39 |
5KM-2512A-00 5KM2512A00 5KM2512A00 |
CAP, WHEEL
|
||||
| # 40 |
5KM-23448-00 5KM2344800 5KM2344800 |
SPACER
|
||||
| # 41 |
2NL-23517-00 3JN2351700002NL2351700 |
COVER, THRUST 1
|
||||
| # 42 |
90105-10480 9010510480 9010510480 |
BOLT, WASHER BASED(2NL)
|
||||
| # 43 |
90185-10060 9018510060 9018510060 |
NUT, SELFLOCKING (533 FRAME)
|
||||
| # 44 |
5KM-23448-00 5KM2344800 5KM2344800 |
SPACER
|
||||
| # 45 |
2NL-23517-00 3JN2351700002NL2351700 |
COVER, THRUST 1
|
||||
| # 46 |
90105-10480 9010510480 9010510480 |
BOLT, WASHER BASED(2NL)
|
||||
| # 47 |
90185-10060 9018510060 9018510060 |
NUT, SELFLOCKING (533 FRAME)
|

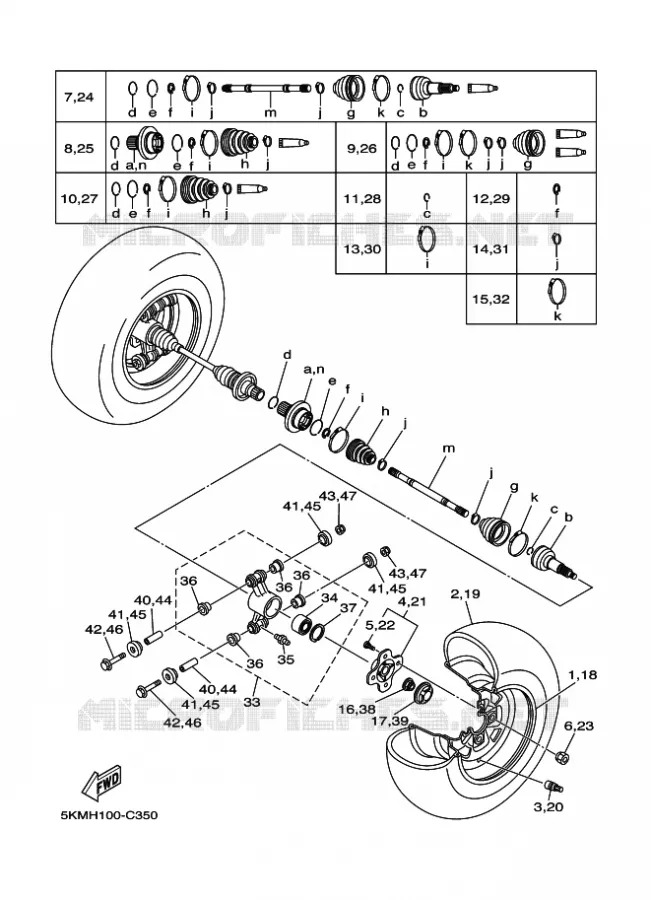

Yamaha YFM660FWA YFM660FS GRIZZLY
Cilinderinhoud: 660 Jaar: 2004 Model code 5KMK Kleur: ROMANTIQUE ROUGE
