| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
13S-23102-11 13S23102120013S2310211 |

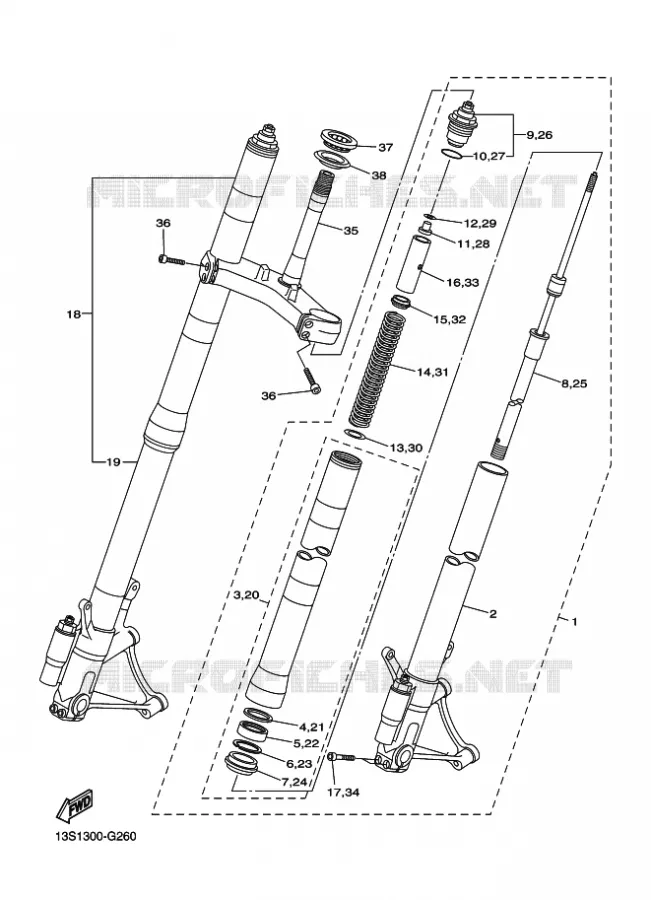

FRONT FORK ASSY (L.H)
|
||||
| # 2 |
13S-23110-01 13S23110030013S2311001 |
INNER TUBE COMP.1
|
||||
| # 3 |
13S-23106-10 13S2310610 13S2310610 |
OUTER TUBE COMP. (L.H)
|
||||
| # 4 |
3VD-23115-00 3VD2311500 3VD2311500 |
GUIDE, COVER UPPER
|
||||
| # 5 |
5VU-23145-00 5VU2314500 5VU2314500 |
OIL SEAL
|
||||
| # 6 |
3VD-23156-00 3VD2315600 3VD2315600 |
CLIP, OIL SEAL
|
||||
| # 7 |
3VD-23144-00 3VD2314400 3VD2314400 |
SEAL, DUST
|
||||
| # 8 |
13S-23170-00 13S2317000 13S2317000 |
CYLINDER COMP., FRONT FORK
|
||||
| # 9 |
13S-23111-00 13S2311100 13S2311100 |
BOLT, CAP
|
||||
| # 10 |
93210-41N50 9321041N50 9321041N50 |
O-RING
|
||||
| # 11 |
13S-23393-00 13S2339300 13S2339300 |
NUT, SPECIAL
|
||||
| # 12 |
13S-2332N-00 13S2332N00 13S2332N00 |
PLATE, VALVE 2
|
||||
| # 13 |
2C0-23143-00 2C02314300 2C02314300 |
SEAT, SPRING LOWER
|
||||
| # 14 |
13S-23141-00 13S2314100 13S2314100 |
SPRING, FRONT FORK
|
||||
| # 15 |
13S-23142-00 13S2314200 13S2314200 |
SEAT, SPRING UPPER
|
||||
| # 16 |
13S-23118-00 13S2311800 13S2311800 |
SPACER
|
||||
| # 17 |
91314-08040 9131408040 9131408040 |
BOLT, SOCKET
|
||||
| # 18 |
13S-23103-11 13S23103120013S2310311 |
FRONT FORK ASSY (R.H)
|
||||
| # 19 |
13S-23120-01 13S23120030013S2312001 |
INNER TUBE COMP.2
|
||||
| # 20 |
13S-23106-10 13S2310610 13S2310610 |
OUTER TUBE COMP. (L.H)
|
||||
| # 21 |
3VD-23115-00 3VD2311500 3VD2311500 |
GUIDE, COVER UPPER
|
||||
| # 22 |
5VU-23145-00 5VU2314500 5VU2314500 |
OIL SEAL
|
||||
| # 23 |
3VD-23156-00 3VD2315600 3VD2315600 |
CLIP, OIL SEAL
|
||||
| # 24 |
3VD-23144-00 3VD2314400 3VD2314400 |
SEAL, DUST
|
||||
| # 25 |
13S-23170-00 13S2317000 13S2317000 |
CYLINDER COMP., FRONT FORK
|
||||
| # 26 |
13S-23111-00 13S2311100 13S2311100 |
BOLT, CAP
|
||||
| # 27 |
93210-41N50 9321041N50 9321041N50 |
O-RING
|
||||
| # 28 |
13S-23393-00 13S2339300 13S2339300 |
NUT, SPECIAL
|
||||
| # 29 |
13S-2332N-00 13S2332N00 13S2332N00 |
PLATE, VALVE 2
|
||||
| # 30 |
2C0-23143-00 2C02314300 2C02314300 |
SEAT, SPRING LOWER
|
||||
| # 31 |
13S-23141-00 13S2314100 13S2314100 |
SPRING, FRONT FORK
|
||||
| # 32 |
13S-23142-00 13S2314200 13S2314200 |
SEAT, SPRING UPPER
|
||||
| # 33 |
13S-23118-00 13S2311800 13S2311800 |
SPACER
|
||||
| # 34 |
91314-08040 9131408040 9131408040 |
BOLT, SOCKET
|
||||
| # 35 |
13S-23340-00 2CX23340000013S2334000 |
UNDER BRACKET COMP.
|
||||
| # 36 |
91314-08030 9131408030 9131408030 |
BOLT, SOCKET
|
||||
| # 37 |
93399-99957 9339999957 9339999957 |
BEARING
|
||||
| # 38 |
3FV-23462-00 3FV2346200 3FV2346200 |
SEAL, STEERING
|
Yamaha YZF-R6
Cilinderinhoud: 600 Jaar: 2009 Model code 13SB Kleur: VIVID RED COCKTAIL 1
