| # 1 |
2C0-21511-00-P8 2C02151101P82C02151100P8 |
GARDE BOUE AV
|
||||
| # 2 |
90111-06043 9011106043 9011106043 |
BOLT
|
||||
| # 3 |
90480-14003 9048014003 9048014003 |
GROMMET
|
||||
| # 4 |
90387-06057 9038706057 9038706057 |
COLLAR
|
||||
| # 5 |
90111-06030 9011106030 9011106030 |
BOLT
|
||||
| # 6 |
95702-06500 9578006500009570206500 |
NUT, FLANGE(7NB)
|
||||
| # 7 |
13S-8212B-00 13S8212B010013S8212B00 |
BOX, BATTERY 1
|
||||
| # 8 |
51Y-21639-00 51Y2163900 51Y2163900 |
DAMPER 2
|
||||
| # 9 |
13S-21649-00 13S2164900 13S2164900 |
DAMPER
|
||||
| # 10 |
133-82131-00 1338213100 1338213100 |
BAND, BATTERY
|
||||
| # 11 |
90183-04039 9018304039 9018304039 |
NUT, SPRING(47R)
|
||||
| # 12 |
90338-06018 9033806018 9033806018 |
PLUG (434)
|
||||
| # 13 |
13S-821A1-00 13S821A100 13S821A100 |
SEAT BTRY. ASSY 1
|
||||
| # 14 |
90464-13004 9046413004 9046413004 |
CLAMP
|
||||
| # 15 |
90109-06171 9010906171 9010906171 |
BOLT
|
||||
| # 16 |
90269-07010 9026907010 9026907010 |
RIVET
|
||||
| # 17 |
13S-21652-00 13S2165200 13S2165200 |
PROTECTOR
|
||||
| # 18 |
13S-24140-00 13S2414000 13S2414000 |
DAMPER PLATE ASSY
|
||||
| # 19 |
13S-21376-00 13S2137600 13S2137600 |
BAND, TOOL
|
||||
| # 20 |
13S-21611-00-P1 13S2161100P1 13S2161100P1 |
FENDER, REAR
|
||||
| # 21 |
13S-2172P-00 13S2172P00 13S2172P00 |
SEAT
|
||||
| # 22 |
13S-2173P-00 13S2173P00 13S2173P00 |
SEAT
|
||||
| # 23 |
13S-21735-00 13S2173500 13S2173500 |
SEAL 2
|
||||
| # 24 |
4D9-21717-00 9052002014004D92171700 |
DAMPER, PLATE
|
||||
| # 25 |
13S-21669-00 13S2166900 13S2166900 |
SEAL
|
||||
| # 26 |
13S-216A2-00 13S216A200 13S216A200 |
SEAL, 2
|
||||
| # 27 |
13S-216A3-00 13S216A300 13S216A300 |
SEAL, 3
|
||||
| # 28 |
13S-216A4-00 13S216A400 13S216A400 |
SEAL, 4
|
||||
| # 29 |
13S-2162R-00-P0 13S2162R00P0 13S2162R00P0 |
FENDER 2
|
||||
| # 30 |
90269-06001 9026906001 9026906001 |
RIVET
|
||||
| # 31 |
90338-06018 9033806018 9033806018 |
PLUG (434)
|
||||
| # 32 |
5GM-27445-00 5GM2744500 5GM2744500 |
PLATE 1
|
||||
| # 33 |
90480-08005 9048008005 9048008005 |
GROMMET
|
||||
| # 34 |
13S-21732-00 13S2173200 13S2173200 |
SEAL 1
|
||||
| # 35 |
13S-21575-00 13S2157500 13S2157500 |
SEAL 1
|
||||
| # 36 |
13S-2173N-00 13S2173N00 13S2173N00 |
SEAL 4
|
||||
| # 37 |
90269-07010 9026907010 9026907010 |
RIVET
|
||||
| # 38 |
90464-13073 9046415195009046413073 |
CLAMP(4FM)
|
||||
| # 39 |
97702-50014 9770750014009770250014 |
SCREW, TRUSS TAP.
|
||||
| # 40 |
13S-21131-00 13S2113100 13S2113100 |
BRACKET
|
||||
| # 41 |
90179-06010 9017906010 9017906010 |
NUT
|
||||
| # 42 |
4G0-21639-00 9033807018004G02163900 |
PLOT
|
||||
| # 43 |
5YT-24665-00 5YT2466500 5YT2466500 |
DAMPER
|
||||
| # 44 |
90111-06104 9201206016009011106104 |
BOLT, BUTTON HEAD
|
||||
| # 45 |
13S-21615-00 13S2161500 13S2161500 |
WASHER, SPECIAL 1
|
||||
| # 46 |
90101-06056 9701706025009010106056 |
BOLT, HEXAGON
|
||||
| # 47 |
2C0-28100-00 2C02810000 2C02810000 |
TOOL KIT
|
||||
| # 48 |
2C0-21370-00 2C02137000 2C02137000 |
HELMET HANGER ASSY
|
||||
| # 49 |
2C0-28110-00 2C02811000 2C02811000 |
TOOL KIT, 2
|
||||
| # 50 |
4XV-2814F-00 4XV2814F00 4XV2814F00 |
BOX, SPARK PLUG
|
||||
| # 51 |
4FM-28135-00 4FM2813500 4FM2813500 |
SPANNER, SPECIAL
|
||||
| # 52 |
90465-13M11 9046513M11 9046513M11 |
CLAMP (6E5)
|
||||
| # 53 |
2C0-21629-00 2C02162901002C02162900 |
GUARD, MUD
|
||||
| # 54 |
3Y6-85130-02 3Y68513002 3Y68513002 |
REFLECTOR
|
||||
| # 55 |
95607-05200 9560705200 9560705200 |
NUT, S/L FLANGE
|
||||
| # 56 |
13S-21640-00 13S2164000 13S2164000 |
REAR STAY COMP.
|
||||
| # 57 |
2C0-2163A-00 2C02163A00 2C02163A00 |
COVER, REAR FENDER 1
|
||||
| # 58 |
2C0-2163E-00 2C02163E00 2C02163E00 |
COVER, REAR FENDER 2
|
||||
| # 59 |
90464-14228 9046414228 9046414228 |
CLAMP(4NX)
|
||||
| # 60 |
90109-06182 9010906182 9010906182 |
BOLT
|

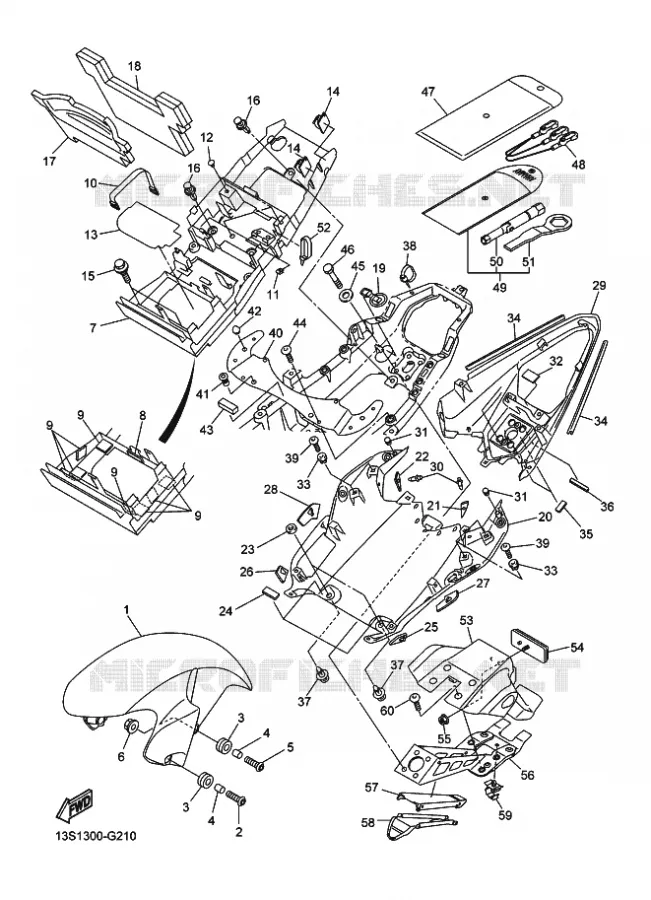

Yamaha YZF-R6
Cilinderinhoud: 600 Jaar: 2009 Model code 13SB Kleur: VIVID RED COCKTAIL 1
