| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
2S2-16111-60 2S21611160 2S21611160 |
GEAR, PRIMARY DRIVE
|
||||
| # 2 |
90208-25045 9020825045 9020825045 |
WASHER, CONICAL SPRING(83R)
|
||||
| # 3 |
90179-20009 9017920009 9017920009 |
NUT
|
||||
| # 4 |
5XD-16150-60 5XD1615060 5XD1615060 |
PRIMARY DRIVEN GEAR COMP.
|
||||
| # 5 |
5TA-16371-10 5TA1637120005TA1637110 |
BOSS, CLUTCH
|
||||
| # 6 |
5JG-16351-00 5JG1635100 5JG1635100 |
PLATE, PRESSURE 1
|
||||
| # 7 |
4X7-16325-00 4X71632510004X71632500 |
DISQUE 2, EMBRAYAGE
|
||||
| # 8 |
5TA-16321-00 5TA1632100 5TA1632100 |
PLATE, FRICTION
|
||||
| # 9 |
90501-237L0 90501237L0 90501237L0 |
SPRING, COMPRESSION
|
||||
| # 10 |
90159-06092 9015906092 9015906092 |
SCREW, WITH WASHER(33M)
|
||||
| # 11 |
5XD-16154-00 5XD1615400 5XD1615400 |
PLATE, THRUST 1
|
||||
| # 12 |
1TA-16325-00 1TA1632510001TA1632500 |
DISQUE 2, EMBRAYAGE
|
||||
| # 13 |
90208-20008 9020820008 9020820008 |
WASHER (853)
|
||||
| # 14 |
90170-20255 9017020255 9017020255 |
NUT (3R4)
|
||||
| # 15 |
5JG-16356-00 5JG1635600 5JG1635600 |
ROD, PUSH 1
|
||||
| # 16 |
93340-21505 9334021505 9334021505 |
BEARING, THRUST (713)
|
||||
| # 17 |
90201-125L6 90201125L6 90201125L6 |
WASHER, PLATE(1RE)
|
||||
| # 18 |
93440-10085 9344010085 9344010085 |
CIRCLIP (4G0)
|
||||
| # 19 |
93511-32027 9351132027 9351132027 |
BALL (498)
|
||||
| # 20 |
2S2-16357-00 2S21635701002S21635700 |
TIGE DE DEBRAYAGE 2
|
||||
| # 21 |
5TJ-16381-20 5TJ1638120 5TJ1638120 |
PUSH LEVER COMP.
|
||||
| # 22 |
93317-11287 9331711287 9331711287 |
BEARING
|
||||
| # 23 |
93102-12224 9310212224 9310212224 |
OIL SEAL (4G0)
|
||||
| # 24 |
99009-20500 9900920500 9900920500 |
CIRCLIP(1EV)
|

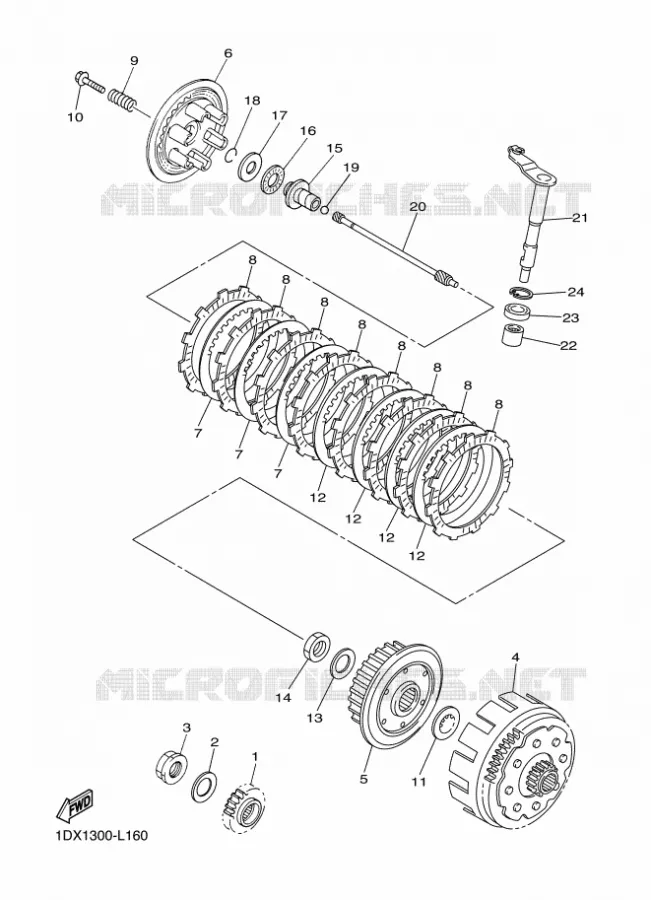

Yamaha WR450F
Cilinderinhoud: 450 Jaar: 2012 Model code 1DX1 Kleur: DEEP PURPLISH BLUE SOLID E
