| # 1 |
5TJ-11101-00-00 5TJ111010000 5TJ111010000 |

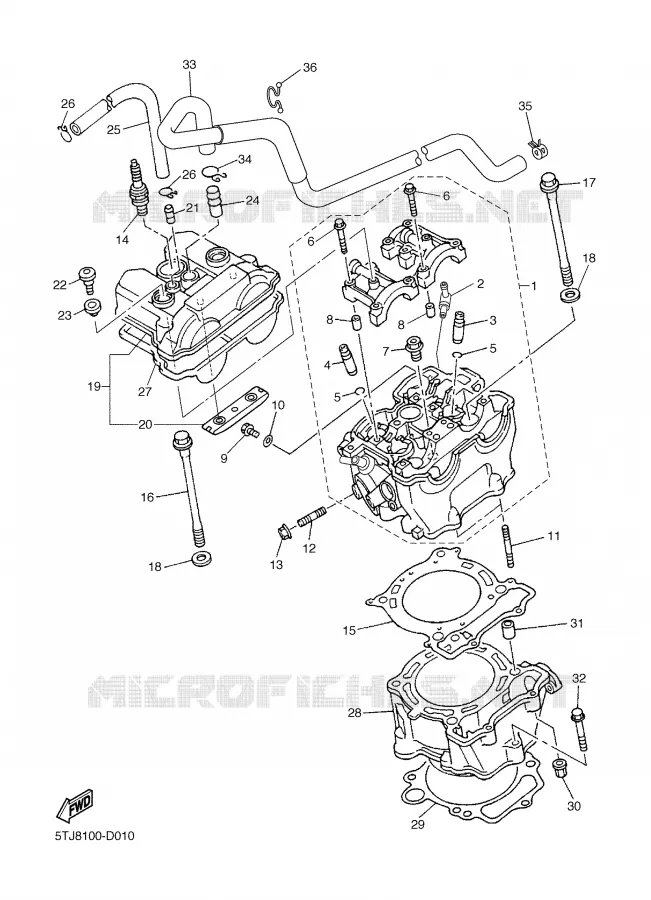

CYLINDER HEAD ASSY
|
Contact | |||
| # 2 |
353-13115-01-00 353131150100 353131150100 |
CONNECTOR, SUCTION PIPE
|
||||
| # 3 |
5TA-11133-10-00 5TA111331000 5TA111331000 |
GUIDE, INTAKE VALVE
|
||||
| # 4 |
5TA-11134-10-00 5TA111341000 5TA111341000 |
GUIDE, EXHAUST VALVE
|
||||
| # 5 |
93440-10153-00 934401015300 934401015300 |
CIRCLIP(1WG)
|
||||
| # 6 |
90105-06027-00 901050602700 901050602700 |
BOLT, WASHER BASED
|
||||
| # 7 |
90340-12112-00 903401211200 903401211200 |
PLUG, STRAIGHT SCREW(1HX)
|
||||
| # 8 |
91808-16023-00 918081602300 918081602300 |
PIN, DOWEL(3XW)
|
||||
| # 9 |
95022-06010-00 950220601000 950220601000 |
BOLT, FLANGE
|
||||
| # 10 |
90430-06014-00 904300601400 904300601400 |
GASKET 256113960000
|
Contact | |||
| # 11 |
95617-06635-00 956170663500 956170663500 |
BOLT, STUD (4KG1)
|
||||
| # 12 |
95612-08620-00 956120862000 956120862000 |
BOLT, STUD
|
||||
| # 13 |
95702-08500-00 957040850000957020850000 |
NUT, FLANGE
|
||||
| # 14 |
94701-00411-00 947010041100 947010041100 |
PLUG, SPARK (CR8E)
|
Contact | |||
| # 15 |
5TA-11181-00-00 5TA111810000 5TA111810000 |
GASKET, CYLINDER HEAD 1
|
||||
| # 16 |
90105-104A7-00 90105104A700 90105104A700 |
BOLT, WASHER BASED
|
||||
| # 17 |
90105-106A3-00 90105106A300 90105106A300 |
BOLT, WASHER BASED
|
||||
| # 18 |
90201-10025-00 902011002500 902011002500 |
WASHER, PLATE
|
||||
| # 19 |
5TG-11190-10-00 5TG111901000 5TG111901000 |
COVER, CYLINDER HEAD 1
|
Contact | |||
| # 20 |
5BE-12241-00-00 5BE1224101005BE122410000 |
GUIDE, BUTEE 2
|
||||
| # 21 |
5BE-11167-00-00 5BE111670000 5BE111670000 |
PIPE, BREATHER 2
|
Contact | |||
| # 22 |
90109-066F0-00 90109066F000 90109066F000 |
BOLT(4BP)
|
||||
| # 23 |
4KG-1111G-00-00 5EA1111G00004KG1111G0000 |
RUBBER, MOUNT 1
|
||||
| # 24 |
371-11167-01-00 371111670100 371111670100 |
PIPE, BREATHER 2
|
||||
| # 25 |
90445-112K0-00 90445117F20090445112K000 |
HOSE (L700)
|
||||
| # 26 |
90467-11106-00 904671110600 904671110600 |
CLIP(1JH)
|
||||
| # 27 |
5TA-11193-00-00 5TA111930000 5TA111930000 |
GASKET, HEAD COVER 1
|
||||
| # 28 |
5TA-11311-02-00 5TA1131112005TA113110200 |
CYLINDER 1
|
||||
| # 29 |
5TA-11351-00-00 5TA113510000 5TA113510000 |
GASKET, CYLINDER
|
||||
| # 30 |
90179-06033-00 901790603300 901790603300 |
NUT
|
||||
| # 31 |
93612-16254-00 936121625400 936121625400 |
PIN, DOWEL(4XL)
|
||||
| # 32 |
95022-06035-00 950220603500 950220603500 |
BOLT, FLANGE
|
||||
| # 33 |
5TJ-11166-00-00 5TJ111660000 5TJ111660000 |
PIPE, BREATHER 1
|
||||
| # 34 |
90467-14015-00 904671401500 904671401500 |
CLIP (371)
|
||||
| # 35 |
90468-08104-00 904680810400 904680810400 |
CLIP
|
||||
| # 36 |
90464-25267-00 904642526700 904642526700 |
CLAMP
|
