| # 1 |
1SD-F583T-00 1SDF583T00 1SDF583T00 |
MASTER CYLINDER ASSY
|
||||
| # 2 |
1SD-F5807-00 1SDF580700 1SDF580700 |
CYLINDER KIT MAST
|
||||
| # 3 |
1SD-F5852-00 1SDF585200 1SDF585200 |
CAP, RESERVOIR
|
||||
| # 4 |
1SD-F5854-00 1SDF585400 1SDF585400 |
DIAPHRAGM, RESERVOIR
|
||||
| # 5 |
1SD-F5855-00 1SDF585500 1SDF585500 |
BUSH, DIAPHRAGM
|
||||
| # 6 |
98707-04012 9870704012 9870704012 |
SCREW, FLAT
|
||||
| # 7 |
1SD-F5867-00 1SDF586700 1SDF586700 |
BRACKET, MASTER CYLINDER
|
||||
| # 8 |
92017-06030 9201706030 9201706030 |
BOLT, BUTTON
|
||||
| # 9 |
1B9-H3945-00 1B9H394500 1B9H394500 |
BOLT, LEVER
|
||||
| # 10 |
95607-06200 9560406200009560706200 |
NUT, U FLANGE
|
||||
| # 11 |
1SD-H3912-00 1SDH391200 1SDH391200 |
LEVER 1
|
||||
| # 12 |
97607-04216 9760704216 9760704216 |
SCREW, PAN HEAD WITH WASHER
|
||||
| # 13 |
37P-H3980-00 37PH398000 37PH398000 |
FRONT STOP SWITCH
|
||||
| # 14 |
1SD-F5872-10 1SDF587210 1SDF587210 |
HOSE BRAKE 1
|
||||
| # 15 |
3D7-25876-00 3D72587600 3D72587600 |
HOLDER, BRAKE HOSE 2
|
||||
| # 16 |
98507-05016 9850705016 9850705016 |
SCREW, PAN HEAD(JJ6)
|
||||
| # 17 |
92907-05600 9290705600 9290705600 |
WASHER(1RW)
|
||||
| # 18 |
1SD-F588F-11 1SDF588F11 1SDF588F11 |
HOLDER BRAKE HOSE 5
|
||||
| # 19 |
95824-06016 9581406016009582406016 |
BOLT, FLANGE
|
||||
| # 20 |
2RN-F5877-00 2RNF587700 2RNF587700 |
BOLT, OIL 1
|
||||
| # 21 |
90401-10X06 9040110X06 9040110X06 |
BOLT, UNION
|
||||
| # 22 |
90201-10118 90201108J9009020110118 |
WASHER, PLATE
|
||||
| # 23 |
1SD-F583V-00 1SDF583V00 1SDF583V00 |
RR. MASTER CYLINDER ASSY.
|
||||
| # 24 |
1SD-F5808-00 1SDF580800 1SDF580800 |
CYLINDER KIT MAST
|
||||
| # 25 |
1SD-F5852-00 1SDF585200 1SDF585200 |
CAP, RESERVOIR
|
||||
| # 26 |
1SD-F5854-00 1SDF585400 1SDF585400 |
DIAPHRAGM, RESERVOIR
|
||||
| # 27 |
1SD-F5855-00 1SDF585500 1SDF585500 |
BUSH, DIAPHRAGM
|
||||
| # 28 |
98707-04012 9870704012 9870704012 |
SCREW, FLAT
|
||||
| # 29 |
1SD-F5867-10 1SDF586710 1SDF586710 |
BRACKET, MASTER CYLINDER
|
||||
| # 30 |
92017-06030 9201706030 9201706030 |
BOLT, BUTTON
|
||||
| # 31 |
1B9-H3945-00 1B9H394500 1B9H394500 |
BOLT, LEVER
|
||||
| # 32 |
95607-06200 9560406200009560706200 |
NUT, U FLANGE
|
||||
| # 33 |
1SD-H3922-00 1SDH392200 1SDH392200 |
LEVER 2
|
||||
| # 34 |
97607-04216 9760704216 9760704216 |
SCREW, PAN HEAD WITH WASHER
|
||||
| # 35 |
37P-H2917-00 37PH291700 37PH291700 |
SWITCH
|
||||
| # 36 |
1SD-F5873-10 1SDF587310 1SDF587310 |
HOSE BRAKE 2
|
||||
| # 37 |
1SD-F5874-30 1SDF587430 1SDF587430 |
HOSE BRAKE
|
||||
| # 38 |
90464-18X00 9046418X00 9046418X00 |
CLAMP
|
||||
| # 39 |
90464-48174 9046448174 9046448174 |
CLAMP(4BD)
|
||||
| # 40 |
1B9-F5886-00 1B9F588600 1B9F588600 |
HOLDER, BRAKE HOSE
|
||||
| # 41 |
1SD-F581J-00 1SDF581J00 1SDF581J00 |
HOSE BRAKE 4
|
||||
| # 42 |
1SD-F581K-00 1SDF581K00 1SDF581K00 |
HOSE BRAKE 5
|
||||
| # 43 |
90464-80X00 4KHH393601009046480X00 |
BAND, SWITCH CORD
|
||||
| # 44 |
1SD-F587A-00 1SDF587A00 1SDF587A00 |
HOLDER, BRAKE HOSE
|
||||
| # 45 |
9580M-06012 9580M06012 9580M06012 |
BOLT, FLANGE
|
||||
| # 46 |
1SD-F5887-00 1SDF588700 1SDF588700 |
HOLDER, BRAKE HOSE
|
||||
| # 47 |
9580M-06012 9580M06012 9580M06012 |
BOLT, FLANGE
|
||||
| # 48 |
2RN-F5877-00 2RNF587700 2RNF587700 |
BOLT, OIL 1
|
||||
| # 49 |
90201-10118 90201108J9009020110118 |
WASHER, PLATE
|

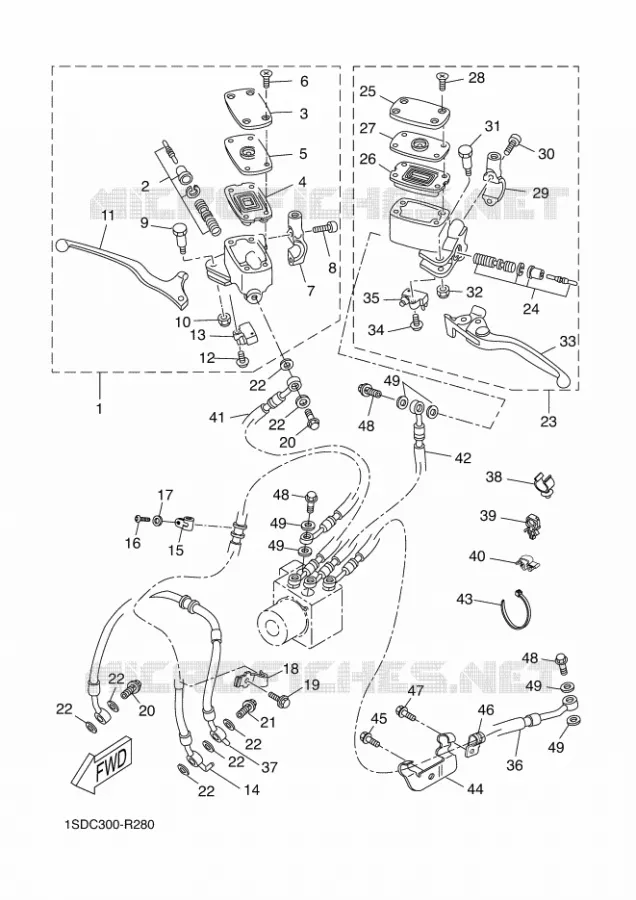

Yamaha YP400RA
Cilinderinhoud: 400 Jaar: 2016 Model code 1SDC Kleur: MAT GRAY METALLIC 3
