| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|

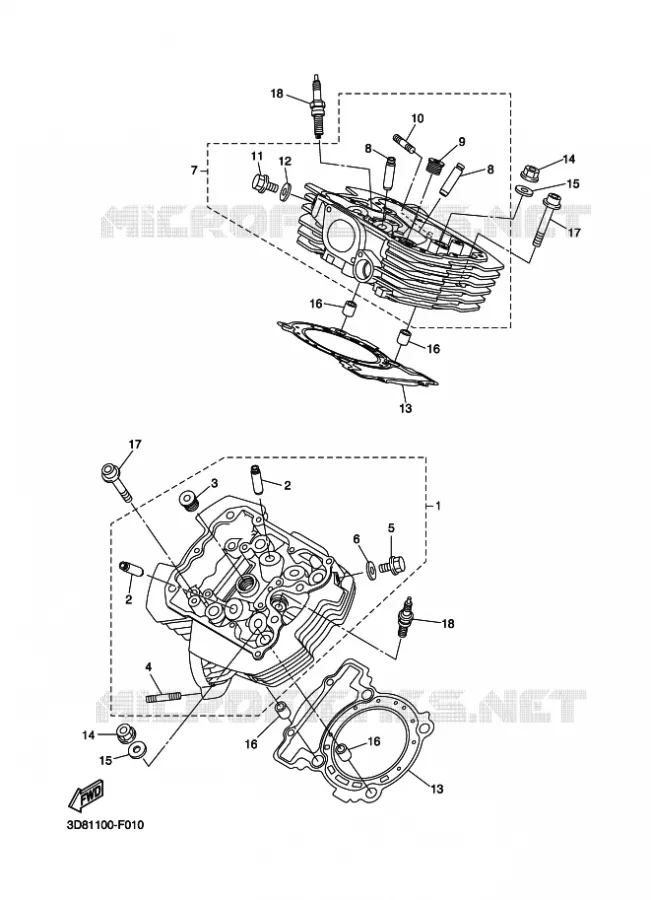

| # 1 |
3D8-11101-09 3D81110109 3D81110109 |
CYLINDER HEAD ASSY
|
||||
| # 2 |
4G0-11133-11 4G01113311 4G01113311 |
GUIDE, INTAKE VALVE
|
||||
| # 3 |
90340-18002 9034018002 9034018002 |
PLUG, STRAIGHT SCREW
|
||||
| # 4 |
95612-08625 9561208625 9561208625 |
BOLT, STUD
|
||||
| # 5 |
95022-08012 9502208012 9502208012 |
BOLT, FLANGE
|
||||
| # 6 |
90430-08119 9020108087009043008119 |
WASHER, PLATE 3411117500
|
||||
| # 7 |
3D8-11101-19 3D81110119 3D81110119 |
CYLINDER HEAD ASSY
|
||||
| # 8 |
4G0-11133-11 4G01113311 4G01113311 |
GUIDE, INTAKE VALVE
|
||||
| # 9 |
90340-18002 9034018002 9034018002 |
PLUG, STRAIGHT SCREW
|
||||
| # 10 |
95612-08625 9561208625 9561208625 |
BOLT, STUD
|
||||
| # 11 |
95022-08012 9502208012 9502208012 |
BOLT, FLANGE
|
||||
| # 12 |
90430-08119 9020108087009043008119 |
WASHER, PLATE 3411117500
|
||||
| # 13 |
3D8-11181-00 3D81118100 3D81118100 |
GASKET, CYLINDER HEAD 1
|
||||
| # 14 |
90179-12004 9017912004 9017912004 |
NUT
|
||||
| # 15 |
90201-12025 9020112025 9020112025 |
WASHER, PLATE
|
||||
| # 16 |
91815-16017 9181516017 9181516017 |
PIN, DOWEL(MH0)
|
||||
| # 17 |
90110-08065 9011008065 9011008065 |
BOLT, HEXAGON SOCKET HEAD
|
||||
| # 18 |
94701-00422 9470100422 9470100422 |
PLUG, SPARK (LMAR7A-9)
|
||||
| # 18 |
94701-00423 9470100423 9470100423 |
PLUG, SPARK (LMAR6A-9)
|
Yamaha XVS1300A
Cilinderinhoud: 1300 Jaar: 2014 Model code 11C7 Kleur: BLACK METALLIC X
