| # 1 |
5S7-11101-18 5S71110118 5S71110118 |
CYLINDER HEAD ASSY
|
||||
| # 2 |
4G0-11133-11 4G01113311 4G01113311 |
GUIDE, INTAKE VALVE
|
||||
| # 3 |
93440-10085 9344010085 9344010085 |
CIRCLIP (4G0)
|
||||
| # 4 |
95022-08012 9502208012 9502208012 |
BOLT, FLANGE
|
||||
| # 5 |
90430-08119 9020108087009043008119 |
WASHER, PLATE 3411117500
|
||||
| # 6 |
5S7-11101-38 5S71110138 5S71110138 |
CYLINDER HEAD ASSY
|
||||
| # 7 |
4G0-11133-11 4G01113311 4G01113311 |
GUIDE, INTAKE VALVE
|
||||
| # 8 |
93440-10085 9344010085 9344010085 |
CIRCLIP (4G0)
|
||||
| # 9 |
95022-08012 9502208012 9502208012 |
BOLT, FLANGE
|
||||
| # 10 |
90430-08119 9020108087009043008119 |
WASHER, PLATE 3411117500
|
||||
| # 11 |
95612-08625 9561208625 9561208625 |
BOLT, STUD
|
||||
| # 12 |
5S7-11181-00 5S71118100 5S71118100 |
GASKET, CYLINDER HEAD 1
|
||||
| # 13 |
90179-12004 9017912004 9017912004 |
NUT
|
||||
| # 14 |
90201-12025 9020112025 9020112025 |
WASHER, PLATE
|
||||
| # 15 |
91815-16017 9181516017 9181516017 |
PIN, DOWEL(MH0)
|
||||
| # 16 |
90110-08065 9011008065 9011008065 |
BOLT, HEXAGON SOCKET HEAD
|
||||
| # 17 |
5S7-11186-00 5S71118600 5S71118600 |
COVER, CYLINDER HEAD SIDE 2
|
||||
| # 18 |
1TP-1114F-00 1TP1114F00 1TP1114F00 |
PLATE 4
|
||||
| # 19 |
90110-06064 9131706018009011006064 |
BOLT, SOCKET
|
||||
| # 20 |
91312-06016 9131206016 |
BOLT, SOCKET
|
Contact | |||
| # 21 |
5S7-11196-00 5S71119600 5S71119600 |
GASKET, CYLINDER HEAD SIDE
|
||||
| # 22 |
94701-00420 9470100420 9470100420 |
SPARK PLUG (CPR7EA-9)
|
||||
| # 23 |
1TP-1111M-00 1TP1111M00 1TP1111M00 |
COVER 1
|
||||
| # 24 |
1TP-1111N-00 1TP1111N00 1TP1111N00 |
COVER 2
|
||||
| # 25 |
90480-13022 9048013022 9048013022 |
GROMMET
|
||||
| # 26 |
90387-06207 9038706207 9038706207 |
COLLAR
|
||||
| # 27 |
90149-06302 9014906302 9014906302 |
SCREW(4DN)
|
||||
| # 28 |
1TP-1111F-00 1TP1111F00 1TP1111F00 |
PLATE
|
||||
| # 29 |
95822-08020 9581708020009582208020 |
BOLT, FLANGE(8AB)
|
||||
| # 30 |
1TP-1112F-00 1TP1112F00 1TP1112F00 |
PLATE 2
|
||||
| # 31 |
90480-10627 9048010627 9048010627 |
GROMMET
|
||||
| # 32 |
95822-08020 9581708020009582208020 |
BOLT, FLANGE(8AB)
|
||||
| # 33 |
1TP-1111P-00 1TP1111P00 1TP1111P00 |
COVER 3
|
||||
| # 34 |
1TP-1111R-00 1TP1111R00 1TP1111R00 |
COVER 4
|
||||
| # 35 |
90480-13022 9048013022 9048013022 |
GROMMET
|
||||
| # 36 |
90387-06207 9038706207 9038706207 |
COLLAR
|
||||
| # 37 |
90149-06302 9014906302 9014906302 |
SCREW(4DN)
|
||||
| # 38 |
1TP-1113F-00 1TP1113F00 1TP1113F00 |
PLATE 3
|
||||
| # 39 |
5S7-1111F-00 5S71111F00 5S71111F00 |
PLATE
|
||||
| # 40 |
95022-06012 9502206012 9502206012 |
BOLT, FLANGE
|
||||
| # 41 |
5S7-11185-00 5S71118500 5S71118500 |
COVER, CYLINDER HEAD SIDE 1
|
||||
| # 42 |
5S7-11195-00 5S71119500 5S71119500 |
GASKET
|
||||
| # 43 |
90110-06274 9131406020009011006274 |
BOLT, SOCKET HEAD
|
||||
| # 44 |
91312-08016 9011008X11009131208016 |
BOLT, HEXAGON SOCK
|
||||
| # 45 |
1TP-11152-00 1TP1115200 1TP1115200 |
BRACKET, CYLINDER HEAD COVER
|
||||
| # 46 |
1TP-24364-00 1TP2436400 1TP2436400 |
STAY
|

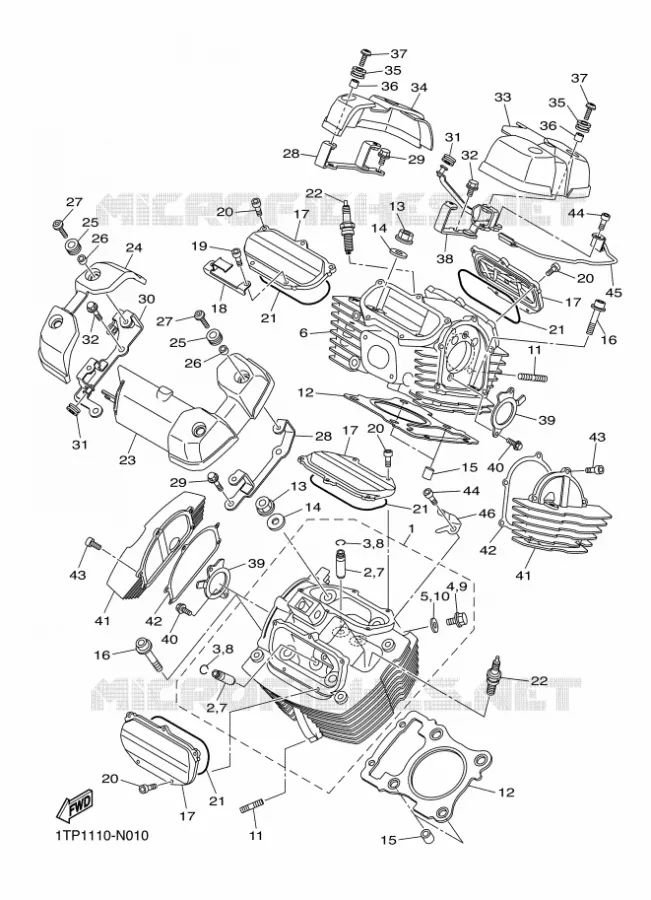

Yamaha XVS950CU
Cilinderinhoud: 950 Jaar: 2016 Model code 1XC3 Kleur: BLACK METALLIC X
