| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|

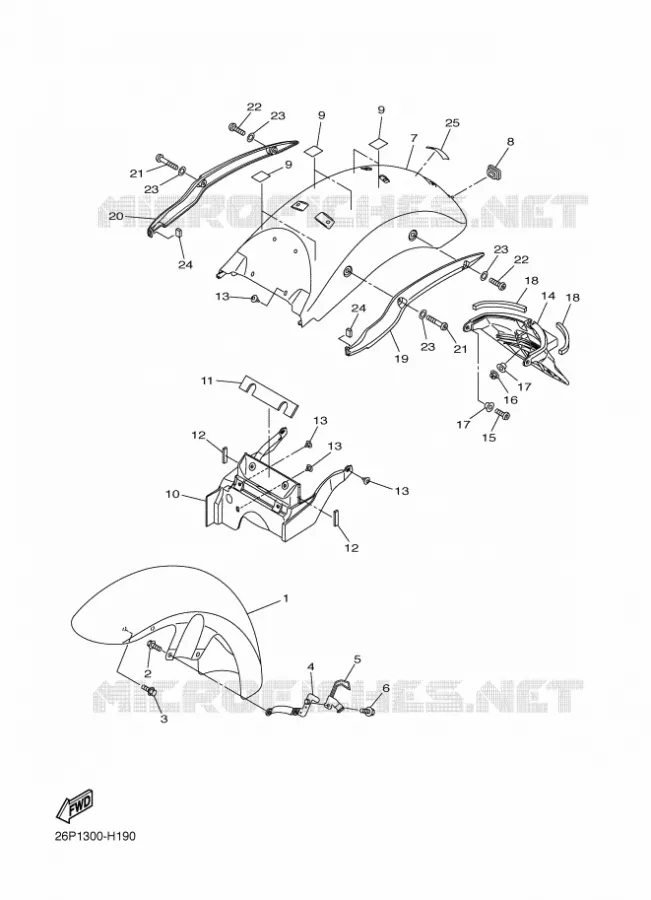

| # 1 |
5S7-21510-00-P4 5S72151001P45S72151000P4 |
FRONT FENDER COMP.
|
||||
| # 2 |
95812-08020 9581208020 9581208020 |
BOLT, FLANGE
|
||||
| # 3 |
95812-08014 9581708014009581208014 |
BOLT, FLANGE
|
||||
| # 4 |
26P-21587-00 26P2158700 26P2158700 |
STAY 1
|
||||
| # 5 |
3D8-21597-00 3D82159700 3D82159700 |
HOLDER, WIRE 1
|
||||
| # 6 |
95027-06010 9502706010 9502706010 |
BOLT, FLANGE(4MY)
|
||||
| # 7 |
5S7-21610-00-P4 5S72161000P4 |
REAR FENDER COMP.
|
Contact | |||
| # 8 |
90480-13027 9048013027 9048013027 |
GROMMET
|
||||
| # 9 |
5PX-21669-01 5PX2166901 5PX2166901 |
SEAL
|
||||
| # 10 |
5S7-21629-00-P4 5S72162901P45S72162900P4 |
GUARD, MUD
|
||||
| # 11 |
5S7-21638-00 5S72163800 5S72163800 |
DAMPER 1
|
||||
| # 12 |
5S7-21639-00 5S72163900 5S72163900 |
DAMPER 2
|
||||
| # 13 |
90269-07077 9026907077 9026907077 |
RIVET(4PH)
|
||||
| # 14 |
5S7-2162R-00 5S72162R00 5S72162R00 |
FENDER 2
|
||||
| # 15 |
92012-06012 9201206012 9201206012 |
BOLT, BUTTON HEAD
|
||||
| # 16 |
95602-06200 9560406200009560206200 |
NUT, U FLANGE
|
||||
| # 17 |
90387-07717 9038707717 9038707717 |
COLLAR (3L1)
|
||||
| # 18 |
4DN-21669-00 4DN2166900 4DN2166900 |
SEAL
|
||||
| # 19 |
5S7-2164F-00 5S72164F01005S72164F00 |
STAY 1
|
||||
| # 20 |
5S7-2164G-00 5S72164G01005S72164G00 |
STAY 2
|
||||
| # 21 |
92014-08045 9201408045 9201408045 |
BOLT, BUTTON HEAD
|
||||
| # 22 |
92014-08030 9201408030 9201408030 |
BOLT, BUTTON HEAD
|
||||
| # 23 |
92990-08200 9299008200 9299008200 |
YBS66-8 WASHER, PLAIN
|
||||
| # 24 |
3MA-24181-00 3MA2418100 3MA2418100 |
DAMPER, LOCATING 1
|
||||
| # 25 |
1D6-2153E-00 1D62153E01001D62153E00 |
EMBLEM, YAMAHA
|
Yamaha XVS950A
Cilinderinhoud: 950 Jaar: 2009 Model code 26P1 Kleur: VERY DARK RED METALLIC 2
