| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
56P-2583V-00 56P2583V010056P2583V00 |
MAITRE-CYLINDRE AR C
|
||||
| # 2 |
56P-25808-50 56P2580850 56P2580850 |
CYLINDER KIT, MASTER
|
||||
| # 3 |
2D1-2582A-00 2D12582A01002D12582A00 |
CONNECTEUR
|
||||
| # 4 |
4BP-2585F-01 4BP2585F01 4BP2585F01 |
O-RING
|
||||
| # 5 |
4BP-27222-02 4BP2722202 4BP2722202 |
JOINT
|
||||
| # 6 |
90170-08010 9017008010 9017008010 |
NUT
|
||||
| # 7 |
14B-25894-00 14B2589400 14B2589400 |
TANK, RESERVOIR
|
||||
| # 8 |
2C0-25852-00 2C02585200 2C02585200 |
CAP, RESERVOIR
|
||||
| # 9 |
2VN-25854-00 2VN2585400 2VN2585400 |
DIAPHRAGM, RESERVOIR
|
||||
| # 10 |
2VN-25855-00 2VN2585500 2VN2585500 |
BUSH, DIAPHRAGM
|
||||
| # 11 |
90387-05028 9038705028 9038705028 |
COLLAR
|
||||
| # 12 |
2C0-26326-00 2C02632600 2C02632600 |
GROMMET
|
||||
| # 13 |
1RC-25895-00 1RC2589500 1RC2589500 |
HOSE, RESERVOIR
|
||||
| # 14 |
90467-120A3 90467120A3 90467120A3 |
CLIP
|
||||
| # 15 |
90111-08038 9011108038 9011108038 |
BOLT, HEX. SOCKET BUTTON
|
||||
| # 16 |
90240-08005 9024008005 9024008005 |
PIN, CLEVIS
|
||||
| # 17 |
90201-08066 9020108066 9020108066 |
WASHER, PLATE
|
||||
| # 18 |
91401-20012 9149020015009140120012 |
PIN, COTTER (648)
|
||||
| # 19 |
90464-20023 9046420023 9046420023 |
CLAMP
|
||||
| # 20 |
90464-18007 9046418007 9046418007 |
CLAMP
|
||||
| # 21 |
2DR-2581K-00 2DR2581K01002DR2581K00 |
DURITE DE FREIN
|
||||
| # 22 |
2DR-85142-00 2DR8514200 2DR8514200 |
BRACKET, REFLECTOR 2
|
||||
| # 23 |
90105-06192 9010506091009010506192 |
BOLT, FLANGE
|
||||
| # 24 |
2DR-2581J-00 2DR2581J01002DR2581J00 |
DURITEDE FREIN 4
|
||||
| # 25 |
90401-10172 9040110172 9040110172 |
BOLT, UNION
|
||||
| # 26 |
90430-10005 9043010005 9043010005 |
GASKET
|
||||
| # 27 |
95707-05500 9570705500 9570705500 |
NUT, FLANGE(3GM)
|
||||
| # 28 |
1RC-2582E-00 1RC2582E00 1RC2582E00 |
HOLDER, RESERVE TANK
|
||||
| # 29 |
90520-02005 9052002005 9052002005 |
DAMPER, PLATE
|

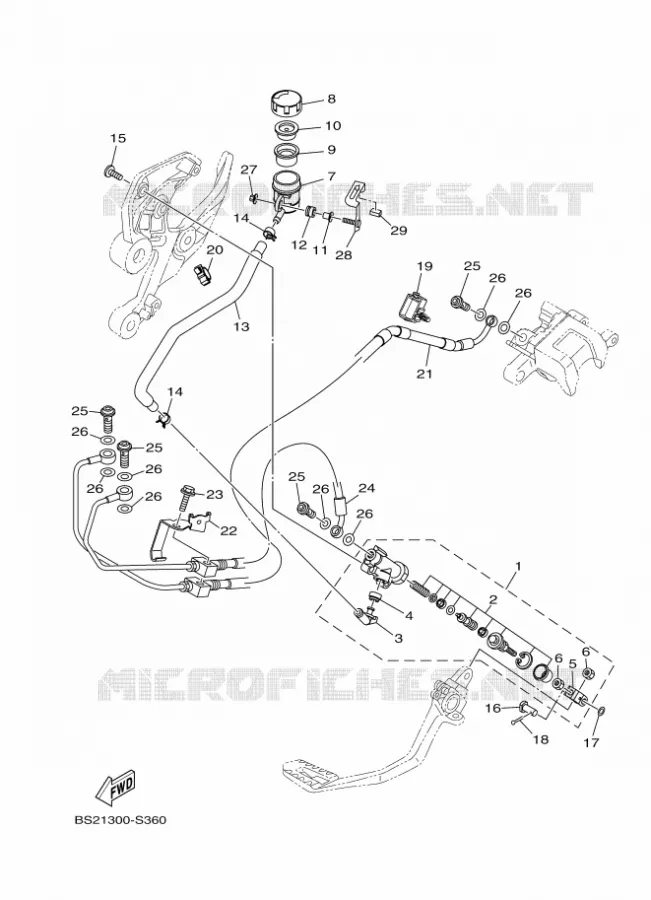

Yamaha MTN850-A
Cilinderinhoud: 900 Jaar: 2017 Model code BS21 Kleur: DEEP PURPLISH BLUE METALLIC C
