| # 1 |
1RC-21511-00-P0 1RC2151100P0 1RC2151100P0 |
FENDER, FRONT
|
||||
| # 2 |
90387-06153 9038706153 9038706153 |
COLLAR
|
||||
| # 3 |
90110-06200 9011006200 9011006200 |
BOLT, HEXAGON SOCKET HEAD(3HE)
|
||||
| # 4 |
5VS-21578-20 5VS2157820 5VS2157820 |
EMBLEM
|
||||
| # 5 |
2PP-8212B-00 2PP8212B00 2PP8212B00 |
BOX, BATTERY 1
|
||||
| # 6 |
2DR-26199-00 2DR2619900 2DR2619900 |
PLUG, BLIND
|
||||
| # 7 |
90183-06069 9018306069 9018306069 |
NUT, SPRING(4ES)
|
||||
| # 8 |
90109-06202 9010906202 9010906202 |
BOLT
|
||||
| # 9 |
90269-07007 9026907007 9026907007 |
RIVET
|
||||
| # 10 |
1RC-82137-00 1RC8213700 1RC8213700 |
BAND, BATTERY
|
||||
| # 11 |
90480-12015 9048012015 9048012015 |
GROMMET
|
||||
| # 12 |
90387-06288 9038706288 9038706288 |
COLLAR
|
||||
| # 13 |
92012-06020 9201206020 9201206020 |
BOLT, BUTTON HEAD
|
||||
| # 14 |
2PP-2117E-00 2PP2117E00 2PP2117E00 |
BRACKET, TAILLIGHT
|
||||
| # 15 |
90111-06029 9011106029 9011106029 |
BOLT
|
||||
| # 16 |
2PP-2163A-00 2PP2163A00 2PP2163A00 |
COVER, REAR FENDER 1
|
||||
| # 17 |
1RC-21747-00 1RC2174700 1RC2174700 |
DAMPER
|
||||
| # 18 |
90269-07007 9026907007 9026907007 |
RIVET
|
||||
| # 19 |
1RC-21629-01 1RC2162901 1RC2162901 |
GUARD, MUD
|
||||
| # 20 |
90387-06372 9038706372 9038706372 |
COLLAR
|
||||
| # 21 |
90111-06061 9011106061 9011106061 |
BOLT
|
||||
| # 22 |
3Y6-85130-02 3Y68513002 3Y68513002 |
REFLECTOR
|
||||
| # 23 |
95602-05200 9560705200009560205200 |
NUT, S/L FLANGE
|
||||
| # 24 |
1WS-84740-00 1WS8474000 1WS8474000 |
LICENCE LIGHT ASSY
|
||||
| # 25 |
1WS-84547-00 1WS8454700 1WS8454700 |
CORD, LICENCE LIGHT
|
||||
| # 26 |
1TP-84347-00 1TP8434700 |
BULB (12V-5W) T10
|
Contact | |||
| # 27 |
90387-05042 9038705042 9038705042 |
COLLAR
|
||||
| # 28 |
90480-11009 9048011009 9048011009 |
GROMMET
|
||||
| # 29 |
2PP-2164F-00 2PP2164F00 2PP2164F00 |
STAY 1
|
||||
| # 30 |
2PP-2163E-00 2PP2163E01002PP2163E00 |
CACHE 2, PARE-BOUE A
|
||||
| # 31 |
2PP-21682-00 2PP2168200 2PP2168200 |
STAY, PLATE
|
||||
| # 32 |
90160-05012 9016005012 9016005012 |
SCREW, ROUND TAPPING
|
||||
| # 33 |
1RC-2622H-00 1RC2622H00 1RC2622H00 |
WEIGHT
|
||||
| # 34 |
95602-06200 9560406200009560206200 |
NUT, U FLANGE
|
||||
| # 35 |
2PP-2164H-00 2PP2164H00 2PP2164H00 |
STAY 3
|
||||
| # 36 |
2PP-2164J-00 2PP2164J00 2PP2164J00 |
STAY 4
|
||||
| # 37 |
90149-08220 9014908220 9014908220 |
SCREW(1KH)
|
||||
| # 38 |
90387-08106 9038708106 9038708106 |
COLLAR
|
||||
| # 39 |
92907-08200 9290708200 9290708200 |
WASHER(6TC)
|
||||
| # 40 |
2PP-21651-00 2PP2165100 2PP2165100 |
COVER, REAR FENDER
|
||||
| # 41 |
90269-07007 9026907007 9026907007 |
RIVET
|
||||
| # 42 |
90387-06302 9038706302 9038706302 |
COLLAR
|
||||
| # 43 |
14B-21668-00 14B21668010014B2166800 |
ETIQUETTE, PNEU
|

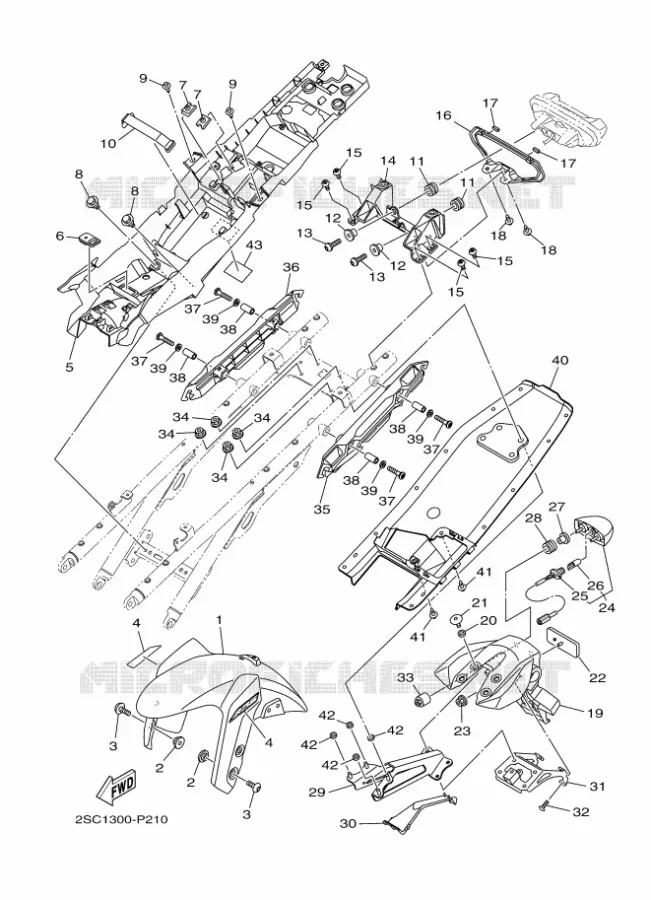

Yamaha MT09TRA
Cilinderinhoud: 900 Jaar: 2016 Model code 2SCD Kleur: MAT SILVER 1
