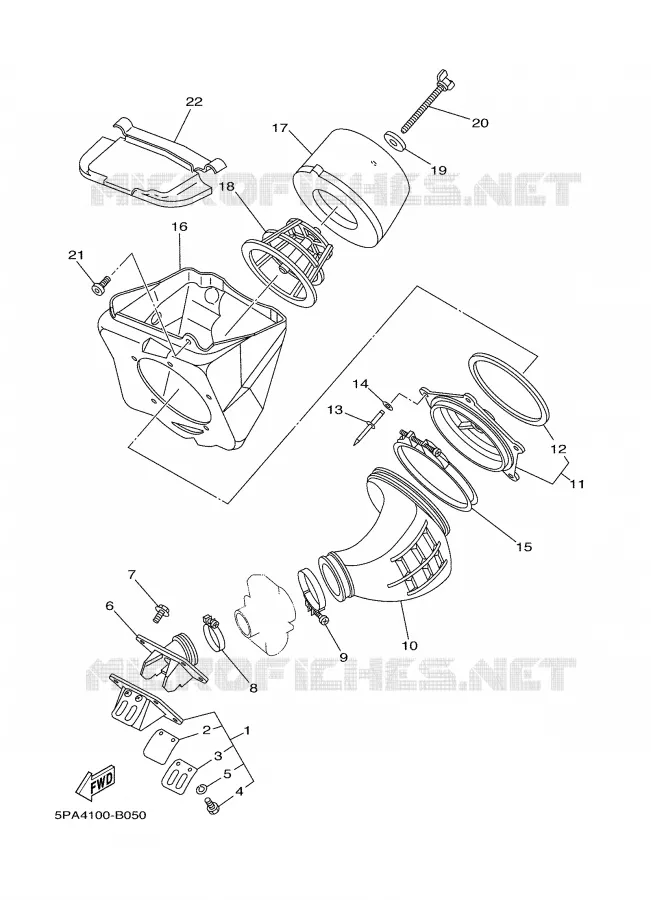

| # 1 |
4ES-13610-00-00 4ES136100000 4ES136100000 |
REED VALVE ASSY
|
||||
| # 2 |
4ES-13613-00-00 4ES136130000 4ES136130000 |
REED, VALVE
|
||||
| # 3 |
4ES-13616-00-00 4ES136160000 4ES136160000 |
STOPPER, REED VALVE
|
||||
| # 4 |
98507-03008-00 985170300800985070300800 |
SCREW, PAN HEAD(3AC)
|
||||
| # 5 |
92907-03100-00 929900310000929070310000 |
WASHER, SPRING
|
||||
| # 6 |
5PA-13565-00-00 5PA135650000 5PA135650000 |
JOINT, CARBURETOR
|
||||
| # 7 |
95027-06020-00 950270602000 950270602000 |
BOLT, FLANGE(6U1)
|
||||
| # 8 |
90460-41191-00 904604119100 904604119100 |
CLAMP, HOSE (5R2)
|
||||
| # 9 |
90460-56105-00 904505600100904605610500 |
HOSE CLAMP ASSY
|
||||
| # 10 |
5PA-14453-00-00 5PA1445301005PA144530000 |
RACCORD, FILTRE A AI
|
||||
| # 11 |
5PA-14459-00-00 5PA144590000 5PA144590000 |
HOLDER, GUIDE
|
||||
| # 12 |
4ES-14462-00-00 4ES144620000 4ES144620000 |
SEAL
|
||||
| # 13 |
90267-48138-00 902674813800 902674813800 |
RIVET, BLIND(80N)
|
||||
| # 14 |
90201-043H7-00 90201043H700 90201043H700 |
WASHER, PLATE (34L)
|
||||
| # 15 |
90450-99064-00 904509906400 904509906400 |
HOSE CLAMP ASSY(4ES)
|
||||
| # 16 |
5PA-14411-00-00 5PA1441110005PA144110000 |
CASE, AIR CLEANER 1
|
||||
| # 17 |
5PA-14451-00-00 5PA1445102005PA144510000 |
ELEMENT, FILTRE A AI
|
||||
| # 18 |
5PA-14458-00-00 5PA144580000 5PA144580000 |
GUIDE
|
||||
| # 19 |
90209-06096-00 902090609600 902090609600 |
WASHER (4H7)
|
||||
| # 20 |
90122-06002-00 901220601000901220600200 |
BOLT, WING
|
||||
| # 21 |
90109-065F3-00 90109065F300 90109065F300 |
BOLT(3XP)
|
||||
| # 22 |
5PA-14417-00-00 5PA1441701005PA144170000 |
COUVERCLE 1
|
Yamaha YZ85
Cilinderinhoud: 85 Jaar: 2006 Model code 5PAD Kleur: DEEP PURPLISH BLUE SOLID E
