| # 1 |
5PW-21511-01-PH 5PW2151102PH5PW2151101PH |
GARDE BOUE AV
|
||||
| # 2 |
90149-06302 9014906302 9014906302 |
SCREW(4DN)
|
||||
| # 3 |
90480-12072 9048012072 9048012072 |
GROMMET(53Y)
|
||||
| # 4 |
90387-065J6 90387061590090387065J6 |
COLLAR
|
||||
| # 5 |
90111-06030 9011106030 9011106030 |
BOLT
|
||||
| # 6 |
95702-06500 9578006500009570206500 |
NUT, FLANGE(7NB)
|
||||
| # 7 |
2D1-8212B-02 2D18212B02 2D18212B02 |
BOX, BATTERY 1
|
||||
| # 8 |
90109-06253 9010906253 9010906253 |
BOLT
|
||||
| # 9 |
90269-07077 9026907077 9026907077 |
RIVET(4PH)
|
||||
| # 10 |
2D1-216A2-00 2D1216A200 2D1216A200 |
SEAL, 2
|
||||
| # 11 |
2D1-216A3-00 2D1216A300 2D1216A300 |
SEAL, 3
|
||||
| # 12 |
90464-07259 9046407259 9046407259 |
CLAMP
|
||||
| # 13 |
4XV-21376-00 4XV2137600 4XV2137600 |
BAND, TOOL
|
||||
| # 14 |
2D1-21646-00 2D12164600 2D12164600 |
BAND
|
||||
| # 15 |
39P-21651-00-P4 39P2165100P4 39P2165100P4 |
COVER, REAR FENDER
|
||||
| # 16 |
5PW-2174X-00 5PW2174X00 5PW2174X00 |
DAMPER
|
||||
| # 17 |
90520-05014 9052005014 9052005014 |
DAMPER, PLATE
|
||||
| # 18 |
90520-05013 9052005013 9052005013 |
DAMPER, PLATE
|
||||
| # 19 |
39P-2163A-00 39P2163A00 39P2163A00 |
COVER, REAR FENDER 1
|
||||
| # 20 |
90183-05M02 9018305M02 9018305M02 |
NUT, SPRING (6E5)
|
||||
| # 21 |
39P-2117E-00 39P2117E00 39P2117E00 |
BRACKET, TAILLIGHT
|
||||
| # 22 |
90464-16021 9046416021 9046416021 |
CLAMP (1J7)
|
||||
| # 23 |
90480-18276 9048018276 9048018276 |
GROMMET (4L0)
|
||||
| # 24 |
97702-50016 9016705077009770250016 |
SCREW, TAPPING(4TV)
|
||||
| # 25 |
90183-05042 9018305042 9018305042 |
NUT, SPRING(1YT)
|
||||
| # 26 |
97702-50014 9770750014009770250014 |
SCREW, TRUSS TAP.
|
||||
| # 27 |
90201-05036 9020105036 9020105036 |
WASHER (838-77218-00)
|
||||
| # 28 |
90109-06172 9010906172 9010906172 |
BOLT
|
||||
| # 29 |
90269-07076 9026907076 9026907076 |
RIVET(4JH)
|
||||
| # 30 |
39P-21611-00 39P2161100 39P2161100 |
FENDER, REAR
|
||||
| # 31 |
90269-07077 9026907077 9026907077 |
RIVET(4PH)
|
||||
| # 32 |
2D1-21629-00 2D12162900 2D12162900 |
GUARD, MUD
|
||||
| # 33 |
2D1-21688-02 2D12168802 2D12168802 |
BRACKET, REAR STAY
|
||||
| # 34 |
90480-13004 9048013004 9048013004 |
GROMMET
|
||||
| # 35 |
90464-16021 9046416021 9046416021 |
CLAMP (1J7)
|
||||
| # 36 |
90160-05012 9016005012 9016005012 |
SCREW, ROUND TAPPING
|
||||
| # 37 |
3Y6-85130-02 3Y68513002 3Y68513002 |
REFLECTOR
|
||||
| # 38 |
90201-05043 9020105043 9020105043 |
WASHER, PLATE
|
||||
| # 39 |
95602-05100 9561705100009560205100 |
NUT, U
|
||||
| # 40 |
90105-08180 9010508129009010508180 |
BOLT, FLANGE
|
||||
| # 41 |
39P-24785-00 39P2478500 39P2478500 |
MOLD, SEAT
|
||||
| # 42 |
4KN-2836B-10 4KN2836B10 4KN2836B10 |
TUNING FORK MARK
|
||||
| # 43 |
39P-2163G-30 39P2163G310039P2163G30 |
EMBLEM 1
|
||||
| # 44 |
39P-28100-10 39P2810010 39P2810010 |
TOOL KIT
|
||||
| # 45 |
4B5-2153E-20 4B52153E21004B52153E20 |
EMBLEME, YAMAHA
|

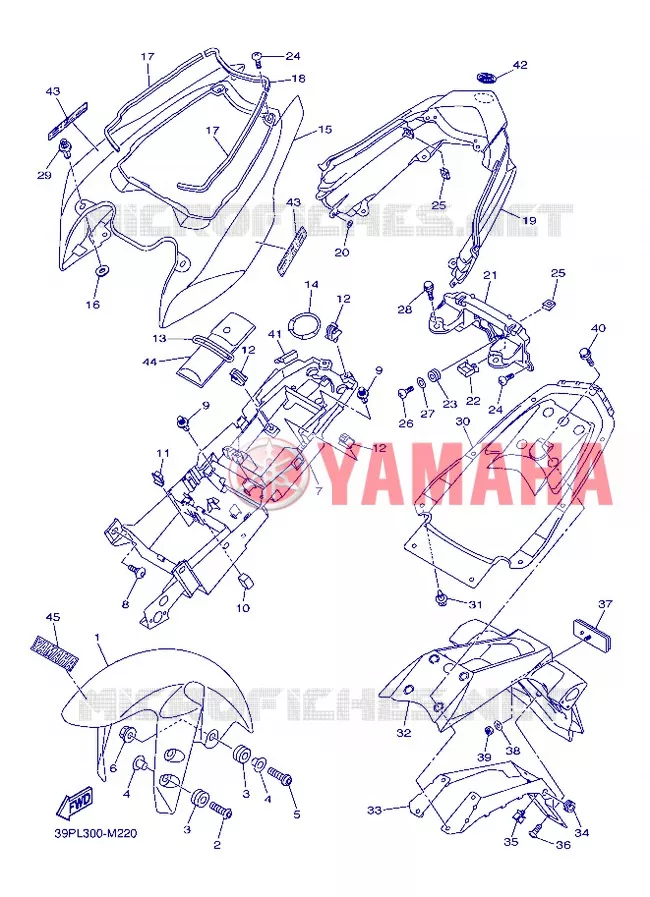

Yamaha FZ8-N
Cilinderinhoud: 800 Jaar: 2013 Model code 39PL Kleur: BLACK METALLIC X
