| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
39P-23102-00 39P2310200 39P2310200 |
FRONT FORK ASSY (L.H)
|
||||
| # 2 |
2D1-23136-10 2D12313610 2D12313610 |
TUBE, OUTER (RIGHT)
|
||||
| # 3 |
4V4-23146-L0 4V423146L0 4V423146L0 |
WASHER
|
||||
| # 4 |
4PU-23145-01 4PU2314501 4PU2314501 |
OIL SEAL
|
||||
| # 5 |
4V4-23153-L0 4V423153L0 4V423153L0 |
RING, SNAP
|
||||
| # 6 |
4PU-23144-00 4PU2314400 4PU2314400 |
SEAL, DUST
|
||||
| # 7 |
39P-23110-00 39P2311000 39P2311000 |
INNER TUBE COMP.1
|
||||
| # 8 |
39P-23170-00 39P2317000 39P2317000 |
CYLINDER COMP., FRONT FORK
|
||||
| # 9 |
509-23158-L0 50923158L0 50923158L0 |
GASKET
|
||||
| # 10 |
278-23181-50 3D82318100002782318150 |
BOLT, HEXAGON SOCKET HEAD
|
||||
| # 11 |
39P-23141-00 39P2314100 39P2314100 |
SPRING, FRONT FORK
|
||||
| # 12 |
5VY-23118-00 5VY2311800 5VY2311800 |
SPACER
|
||||
| # 13 |
3LC-23357-00 3LC2335700 3LC2335700 |
NUT
|
||||
| # 14 |
39P-23111-00 39P2311100 39P2311100 |
BOLT, CAP
|
||||
| # 15 |
39P-23147-00 39P2314700 39P2314700 |
O-RING
|
||||
| # 16 |
39P-23103-00 39P23103010039P2310300 |
FRONT FORK ASSY (R.H)
|
||||
| # 17 |
2D1-23136-10 2D12313610 2D12313610 |
TUBE, OUTER (RIGHT)
|
||||
| # 18 |
4V4-23146-L0 4V423146L0 4V423146L0 |
WASHER
|
||||
| # 19 |
4PU-23145-01 4PU2314501 4PU2314501 |
OIL SEAL
|
||||
| # 20 |
4V4-23153-L0 4V423153L0 4V423153L0 |
RING, SNAP
|
||||
| # 21 |
4PU-23144-00 4PU2314400 4PU2314400 |
SEAL, DUST
|
||||
| # 22 |
39P-23120-00 39P23120010039P2312000 |
INNER TUBE COMP.2
|
||||
| # 23 |
39P-23170-10 39P2317010 39P2317010 |
CYLINDER COMP., FRONT FORK
|
||||
| # 24 |
509-23158-L0 50923158L0 50923158L0 |
GASKET
|
||||
| # 25 |
278-23181-50 3D82318100002782318150 |
BOLT, HEXAGON SOCKET HEAD
|
||||
| # 26 |
39P-23141-00 39P2314100 39P2314100 |
SPRING, FRONT FORK
|
||||
| # 27 |
5VY-23118-00 5VY2311800 5VY2311800 |
SPACER
|
||||
| # 28 |
3LC-23357-00 3LC2335700 3LC2335700 |
NUT
|
||||
| # 29 |
39P-23111-00 39P2311100 39P2311100 |
BOLT, CAP
|
||||
| # 30 |
39P-23147-00 39P2314700 39P2314700 |
O-RING
|
||||
| # 31 |
91314-08040 9131408040 9131408040 |
BOLT, SOCKET
|
||||
| # 32 |
39P-23340-00 39P2334000 39P2334000 |
UNDER BRACKET COMP.
|
||||
| # 33 |
91312-08030 9131208030 9131208030 |
91312-08030
|
||||
| # 34 |
4KM-23123-01 4KM2312301 4KM2312301 |
COVER, LOWER 1
|

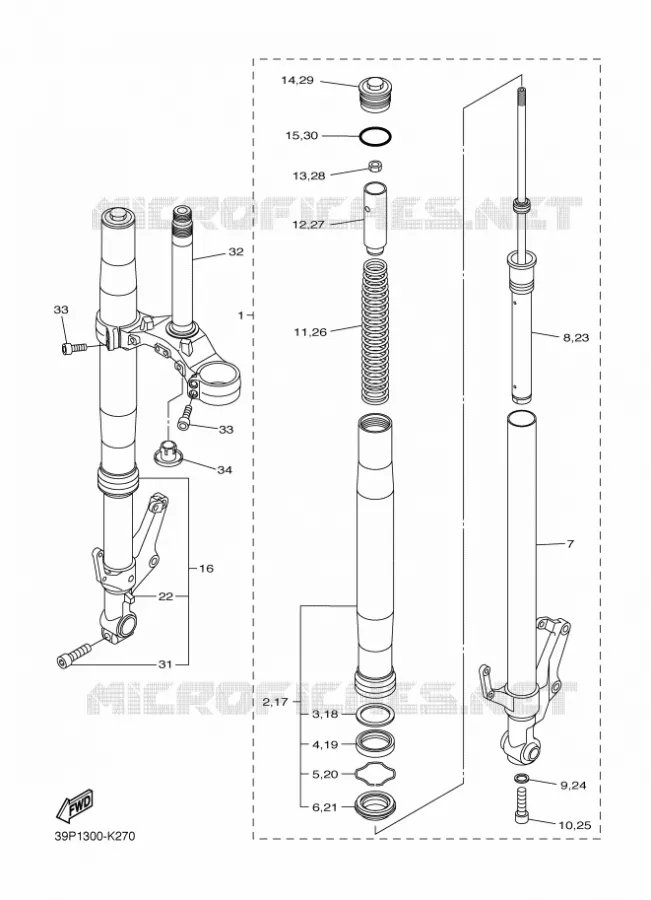

Yamaha FZ8-N
Cilinderinhoud: 800 Jaar: 2011 Model code 39P1 Kleur: BLUISH WHITE COCKTAIL 1
