| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
55X-13586-00 55X1358600 55X1358600 |
JOINT, CARBURETOR 1
|
||||
| # 2 |
22K-13595-00 22K1359500 22K1359500 |
JOINT
|
||||
| # 3 |
93210-25552 9321025552 9321025552 |
O-RING (22F)
|
||||
| # 4 |
90159-06076 9015906076 9015906076 |
SCREW, WITH WASHER (22K)
|
||||
| # 5 |
3GB-14101-00 3GB1410100 3GB1410100 |
CARBURETOR ASSY 1
|
||||
| # 6 |
22F-14184-00 22F1418400 22F1418400 |
GASKET, FLOAT CHAMBER
|
||||
| # 7 |
12R-14191-00 12R1419100 12R1419100 |
PLUG, DRAIN
|
||||
| # 8 |
22F-14103-00 22F1410300 22F1410300 |
THROTTLE SCREW SET
|
||||
| # 9 |
22K-14104-00 22K1410400 22K1410400 |
AIR SCREW SET
|
||||
| # 10 |
22F-14991-00 22F1499100 22F1499100 |
CAP
|
||||
| # 11 |
26H-14197-00 26H1419700 26H1419700 |
DURITE
|
Contact | |||
| # 12 |
98502-04014 9858004014009850204014 |
SCREW, PAN HEAD(GA5)
|
||||
| # 13 |
92902-04100 9299004100009290204100 |
YBS67-4 WASHER, SPRING
|
||||
| # 14 |
22F-14169-00 22F1416900 22F1416900 |
CAP
|
||||
| # 15 |
98502-04008 9858004008009850204008 |
SCREW, PAN HEAD (713)
|
||||
| # 16 |
92902-04100 9299004100009290204100 |
YBS67-4 WASHER, SPRING
|
||||
| # 17 |
55X-14146-00 55X1414600 55X1414600 |
PLATE
|
||||
| # 18 |
22K-14147-00 22K1414700 22K1414700 |
O-RING
|
||||
| # 19 |
127-14186-00 1271418600 1271418600 |
PIN, FLOAT
|
||||
| # 20 |
22F-14142-12 22F1414212 22F1414212 |
JET, PILOT (#12.5)
|
||||
| # 21 |
18A-14143-16 18A1414316 18A1414316 |
JET, MAIN #80
|
||||
| # 22 |
2HX-1490J-01 2HX1490J01 2HX1490J01 |
NEEDLE SET
|
||||
| # 23 |
802-14161-00 8021416100 8021416100 |
NUT, WIRE ADJUSTING
|
||||
| # 24 |
260-14131-00 2601413100 2601413100 |
SPRING, THROTTLE VALVE
|
||||
| # 25 |
2HX-14112-35 2HX1411235 2HX1411235 |
VALVE, THROTTLE 1
|
||||
| # 26 |
98502-04010 9858004010009850204010 |
SCREW, PAN HEAD (E56)
|
||||
| # 27 |
92902-04100 9299004100009290204100 |
YBS67-4 WASHER, SPRING
|
||||
| # 28 |
55X-14198-00 55X1419800 55X1419800 |
GASKET
|
||||
| # 29 |
22F-14185-00 22F1418500 22F1418500 |
FLOAT
|
||||
| # 30 |
22F-14150-00 5TH14150000022F1415000 |
NEEDLE ASSY
|
||||
| # 31 |
2HX-14141-78 2HX1414178 2HX1414178 |
NOZZLE, MAIN
|
||||
| # 32 |
55X-14937-00 55X1493700 55X1493700 |
CLIP
|
||||
| # 33 |
55X-14196-00 55X1419600 55X1419600 |
PIPE
|
||||
| # 34 |
24W-14193-00 24W1419300 24W1419300 |
PIPE 2, OVERFLOW
|
||||
| # 35 |
91A20-07010 91A21070200091A2007010 |
TUBE, FLEXIBLE(3NV)
|
||||
| # 36 |
90159-06076 9015906076 9015906076 |
SCREW, WITH WASHER (22K)
|
||||
| # 37 |
3GB-14453-00 3GB1445300 3GB1445300 |
JOINT, AIR CLEANER 1
|
||||
| # 38 |
90460-43053 9046043179009046043053 |
CLAMP, HOSE (5H0)
|

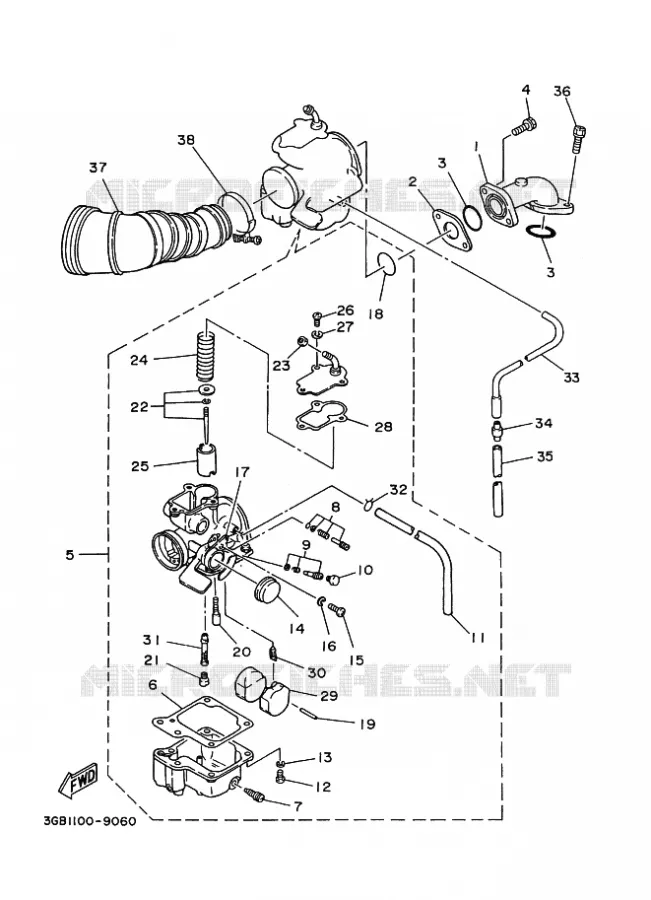

Yamaha YFM80
Cilinderinhoud: 80 Jaar: 1998 Model code 4EML Kleur: RADICAL WHITE
