Winkelwagen
| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
3KS-25338-00-UA 3KS2533800UA 3KS2533800UA |
ROUE COULEE, AR
|
Contact | |||
| # 1 |
3KS-25338-00-WG 3KS2533800WG 3KS2533800WG |
ROUE COULEE, AR
|
Contact | |||
| # 2 |
93306-30606-00 933063060600 933063060600 |
ROULEMENT
|
Contact | |||
| # 3 |
93306-20310-00 933062031000 933062031000 |
BRG, R-B 6203RS 40MM 63.3G KY
|
||||
| # 4 |
93102-25044-00 931022504400 931022504400 |
OIL SEAL (25X47X7-801)
|
||||
| # 5 |
90387-173M5-00 90387173M500 90387173M500 |
COLLAR(1FN)
|
||||
| # 6 |
1UF-25364-00-00 4BP2536400001UF253640000 |
DAMPER
|
||||
| # 7 |
94114-182U6-00 94114182U600 94114182U600 |
PNEU
|
Contact | |||
| # 7 |
94114-182U7-00 94114182U700 94114182U700 |
PNEU
|
Contact | |||
| # 8 |
93900-00030-00 939000003000 939000003000 |
VALVE, RIM(2GH)
|
||||
| # 9 |
39L-25398-00-00 39L253980000 39L253980000 |
MASSELOTTE, ROUE
|
Contact | |||
| # 9 |
39L-25398-10-00 39L253981000 39L253981000 |
MASSELOTTE, ROUE
|
Contact | |||
| # 9 |
39L-25398-20-00 39L253982000 39L253982000 |
MASSELOTTE, ROUE
|
Contact | |||
| # 10 |
1AE-25386-00-00 1AE253860000 1AE253860000 |
COLLIER, AXE DE ROUE DENTEE
|
Contact | |||
| # 11 |
93306-37203-00 933063720700933063720300 |
BEARING(N01)
|
||||
| # 12 |
93106-42024-00 931064202400 931064202400 |
JOINT SPY
|
Contact | |||
| # 13 |
1UF-25443-20-33 1UF254432033 1UF254432033 |
PIGNON SORTIE DE B.V.
|
Contact | |||
| # 14 |
90116-10482-00 901161048200 |
BOLT, STUD(1FV)
|
Contact | |||
| # 15 |
90170-10219-00 901701001100901701021900 |
NUT
|
||||
| # 16 |
90387-177K0-00 90387177K000 90387177K000 |
COLLAR(47X)
|
||||
| # 17 |
1UF-25412-00-00 2AK2541200001UF254120000 |
WASHER
|
||||
| # 18 |
90387-177K1-00 90387177K100 90387177K100 |
COLLAR(47X)
|
||||
| # 19 |
94570-98110-00 945709811000 945709811000 |
CHAINE
|
Contact | |||
| # 19 |
94580-79110-00 945807911000 945807911000 |
CHAINE
|
Contact | |||
| # 20 |
46X-25388-01-00 46X253880100 46X253880100 |
PULLER, CHAIN 1
|
Contact | |||
| # 21 |
36Y-25389-00-00 36Y253890000 36Y253890000 |
PULLER, CHAIN 2
|
Contact | |||
| # 22 |
92901-08600-00 929900860000929010860000 |
WASHER, PLAIN (663)
|
||||
| # 23 |
95303-08600-00 953330860000953030860000 |
NUT(6L2)
|
||||
| # 24 |
1AE-25371-00-00 1AE253710000 |
BAR, TENSION
|
Contact | |||
| # 25 |
90105-08321-00 901050832100 901050832100 |
BOLT, WASHER BASED(47X)
|
||||
| # 26 |
95701-20015-00 957012001500 957012001500 |
ECROU, A COLLERETTE
|
Contact | |||
| # 27 |
91401-20015-00 914902001500914012001500 |
PIN, COTTER (648)
|
||||
| # 28 |
90387-170J6-00 90387177Y40090387170J600 |
COLLAR (3HE)
|
||||
| # 29 |
1AE-25381-00-00 1AE253810000 1AE253810000 |
AXE, ROUE
|
Contact | |||
| # 30 |
90171-16024-00 901711602400 901711602400 |
NUT, CASTLE (2H6)
|
||||
| # 31 |
90201-160F6-00 90201160F600 90201160F600 |
WASHER, PLATE (5X6)
|
||||
| # 32 |
91401-30030-00 914903003000914013003000 |
PIN, COTTER
|

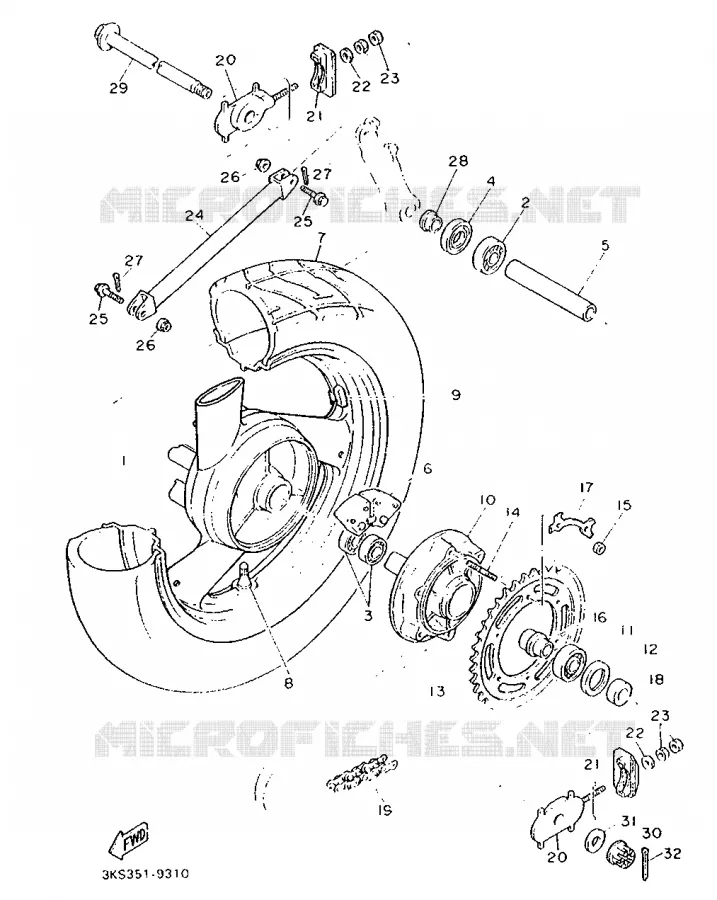

Yamaha FZ750
Cilinderinhoud: 750 Jaar: 1989 Model code 3KS1 Kleur: SILKY WHITE
