| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|

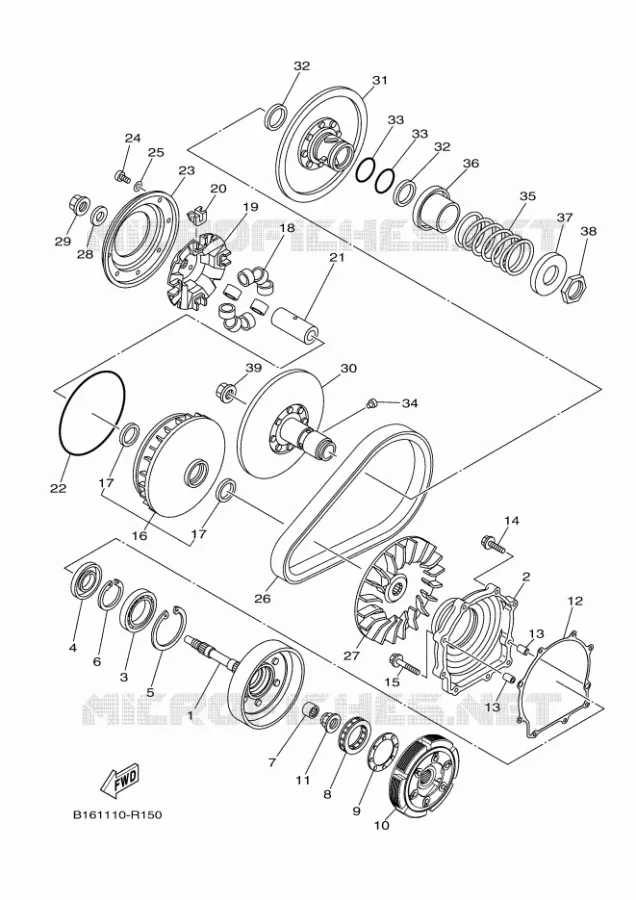

| # 1 |
B16-E6611-00 B16166110000B16E661100 |
CLUTCH HOUSING COMP.
|
||||
| # 2 |
2MB-E5163-00 3B41516300002MBE516300 |
HOUSING, BEARING 1
|
||||
| # 3 |
2MB-E6642-00 9331601003002MBE664200 |
BEARING
|
||||
| # 4 |
2MB-E511B-00 9310235004002MBE511B00 |
OIL SEAL
|
||||
| # 5 |
2MB-E6819-00 9342080066002MBE681900 |
CIRCLIP (70R)
|
||||
| # 6 |
2MB-E5744-00 9341046079002MBE574400 |
CIRCLIP
|
||||
| # 7 |
2MB-E7678-00 9331521813002MBE767800 |
BRG, CYL-CAL ROLLER 12G KY
|
||||
| # 8 |
2MB-E6664-00 4SH1666400002MBE666400 |
BEARING, ONE WAY
|
||||
| # 9 |
2MB-E6717-00 1HP1671700002MBE671700 |
RING, SEAL
|
||||
| # 10 |
2MB-E6620-00 2PG1662000002MBE662000 |
CLUTCH CARRIER ASSY
|
||||
| # 11 |
2MB-E6134-00 9017922021002MBE613400 |
NUT
|
||||
| # 12 |
2MB-E5463-00 2MBE546300 2MBE546300 |
GASKET, COVER PINION 2
|
||||
| # 13 |
2MB-E5181-00 2MBE518100 2MBE518100 |
PIN, DOWEL
|
||||
| # 14 |
2MB-E5481-50 2MBE548150 2MBE548150 |
BOLT 1
|
||||
| # 15 |
2MB-E5481-30 2MBE548130 2MBE548130 |
BOLT 1
|
||||
| # 16 |
3B4-17606-00 3B41760600 3B41760600 |
PRIMARY SLIDING SHEAVE COMP.
|
||||
| # 17 |
93101-35001 9310135001 9310135001 |
OIL SEAL
|
||||
| # 18 |
B16-17632-00 B16E76320000B161763200 |
WEIGHT
|
||||
| # 19 |
3B4-17623-02 3B41762302 3B41762302 |
CAM
|
||||
| # 20 |
3B4-17653-00 16B1765300003B41765300 |
SLIDER
|
||||
| # 21 |
3B4-17645-00 3B41764500 3B41764500 |
COLLAR
|
||||
| # 22 |
93211-59001 9321159001 9321159001 |
O-RING
|
||||
| # 23 |
4WV-17639-10 4WV1763910 4WV1763910 |
STOPPER
|
||||
| # 24 |
90157-04006 9015704006 9015704006 |
SCREW, PAN HEAD
|
||||
| # 25 |
90201-047R9 90201047R9 90201047R9 |
WASHER, PLATE(4HC)
|
||||
| # 26 |
B16-E7641-00 3B4176410000B16E764100 |
V-BELT
|
||||
| # 27 |
3B4-17611-00 3B41761100 3B41761100 |
SHEAVE, PRIMARY FIXED
|
||||
| # 28 |
2MB-E7648-00 2MBE764800 2MBE764800 |
WASHER
|
||||
| # 29 |
2MB-E7668-00 9017916005002MBE766800 |
NUT
|
||||
| # 30 |
3B4-17660-10 3B41766010 3B41766010 |
SECONDARY FIXED SHEAVE COMP.
|
||||
| # 31 |
3B4-17670-10 3B41767010 3B41767010 |
SECONDARY SLIDING SHEAVE
|
||||
| # 32 |
93104-41119 9310441119 9310441119 |
OIL SEAL
|
||||
| # 33 |
93210-44545 9321044545 9321044545 |
O-RING (10L)
|
||||
| # 34 |
4CW-17664-00 4CW1766400 4CW1766400 |
PIN, GUIDE
|
||||
| # 35 |
90501-650A0 90501650A0 90501650A0 |
SPRING, COMPRESSION
|
||||
| # 36 |
4WV-17684-00 4WV1768400 4WV1768400 |
SEAT, SECONDARY SPRING
|
||||
| # 37 |
4WV-17644-00 4WV1764400 4WV1764400 |
SEAT, SPRING
|
||||
| # 38 |
90170-36279 9017036279 9017036279 |
NUT (5G3)
|
||||
| # 39 |
2MB-E7668-00 9017916005002MBE766800 |
NUT
|
Yamaha YFM700FWBDYFM70KPXGKODIAK 700 EPS
Cilinderinhoud: 700 Jaar: 2016 Model code 2SM3 Kleur: ROMANTIQUE ROUGE
