| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
B16-F1500-70 B16F150070 B16F150070 |
FRONT FENDER ASSY
|
||||
| # 2 |
3B4-21541-00 3B42154100 3B42154100 |
DAMPER 1
|
||||
| # 3 |
90109-06043 9010906043 9010906043 |
BOLT
|
||||
| # 4 |
90119-06152 9011906152 9011906152 |
BOLT, WITH WASHER
|
||||
| # 5 |
90119-05193 9011905193 9011905193 |
BOLT, WITH WASHER(3RB)
|
||||
| # 6 |
90183-051A0 90183051A0 90183051A0 |
NUT, SPRING
|
||||
| # 7 |
90480-13398 9048013014009048013398 |
GROMMET
|
||||
| # 8 |
90183-06053 9018306069009018306053 |
NUT, SPRING(4ES)
|
||||
| # 9 |
B16-F1501-00 B16F150100 B16F150100 |
FRONT FENDER COMP.
|
||||
| # 10 |
3B4-21541-00 3B42154100 3B42154100 |
DAMPER 1
|
||||
| # 11 |
90109-06043 9010906043 9010906043 |
BOLT
|
||||
| # 12 |
90119-06152 9011906152 9011906152 |
BOLT, WITH WASHER
|
||||
| # 13 |
90480-13398 9048013014009048013398 |
GROMMET
|
||||
| # 14 |
90183-06053 9018306069009018306053 |
NUT, SPRING(4ES)
|
||||
| # 15 |
B16-F8309-00 B16F830900 B16F830900 |
GRILLE, FRONT
|
||||
| # 16 |
90269-07010 9026907010 9026907010 |
RIVET
|
||||
| # 17 |
90119-06152 9011906152 9011906152 |
BOLT, WITH WASHER
|
||||
| # 18 |
90109-06172 9010906172 9010906172 |
BOLT
|
||||
| # 19 |
5UH-F8349-00 5UHF834900 5UHF834900 |
CAP
|
||||
| # 20 |
1HP-H212B-01 1HPH212B02001HPH212B01 |
BOX, BATTERY 1
|
||||
| # 21 |
90119-06152 9011906152 9011906152 |
BOLT, WITH WASHER
|
||||
| # 22 |
1HP-H253E-00 1HPH253E00 1HPH253E00 |
INSULATOR 1
|
||||
| # 23 |
1HP-H253F-00 1HPH253F00 1HPH253F00 |
INSULATOR 2
|
||||
| # 24 |
1HP-H254E-00 1HPH254E00 1HPH254E00 |
INSULATOR
|
||||
| # 25 |
3B4-8233W-10 3B48233W10 3B48233W10 |
INSU.
|
||||
| # 26 |
3B4-82122-00 3B48212200 3B48212200 |
SEAT, BATTERY
|
||||
| # 27 |
1HP-H2176-00 1HPH217601001HPH217600 |
AMORTISSEUR
|
||||
| # 28 |
90183-06053 9018306069009018306053 |
NUT, SPRING(4ES)
|
||||
| # 29 |
90183-05008 9018305008 9018305008 |
NUT, SPRING
|
||||
| # 30 |
B16-F3391-00 B16F339100 B16F339100 |
PANEL, FRONT
|
||||
| # 31 |
1XD-F175B-01 1XDF175B01 1XDF175B01 |
TUNING FORK MARK
|
||||
| # 32 |
90183-06071 9018306071 9018306071 |
NUT, SPRING(JA3)
|
||||
| # 33 |
90269-07010 9026907010 9026907010 |
RIVET
|
||||
| # 34 |
B16-F839R-00 B16F839R00 B16F839R00 |
PANEL, ACCESSORY
|
||||
| # 35 |
1HP-F1552-00 1HPF155200 1HPF155200 |
FENDER, INNER
|
||||
| # 36 |
1HP-F1575-00 1HPF157500 1HPF157500 |
SEAL 1
|
||||
| # 37 |
90119-06152 9011906152 9011906152 |
BOLT, WITH WASHER
|
||||
| # 38 |
90183-06053 9018306069009018306053 |
NUT, SPRING(4ES)
|
||||
| # 39 |
1HP-F1553-00 1HPF155300 1HPF155300 |
FENDER, INNER 2
|
||||
| # 40 |
90119-06152 9011906152 9011906152 |
BOLT, WITH WASHER
|
||||
| # 41 |
90183-06053 9018306069009018306053 |
NUT, SPRING(4ES)
|

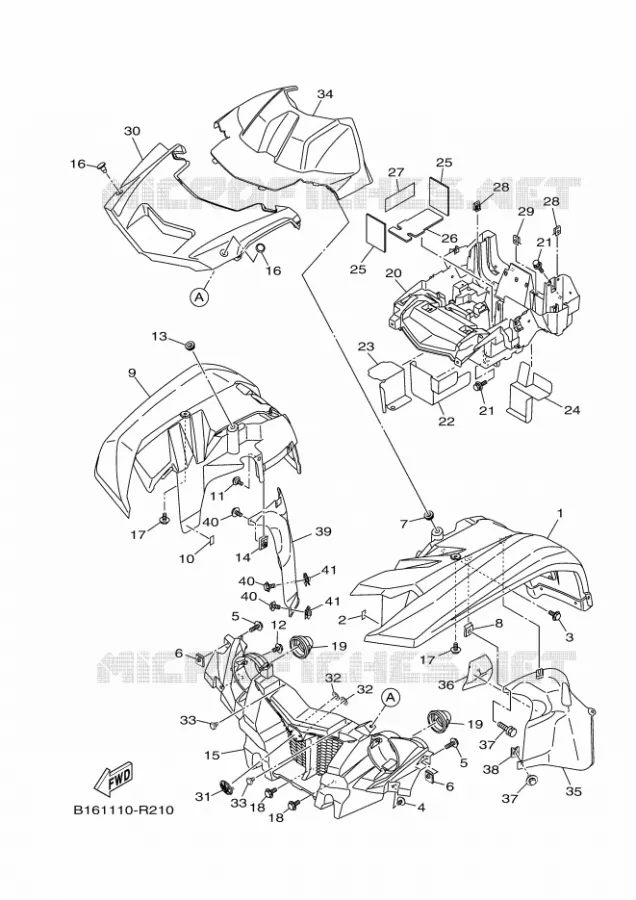

Yamaha YFM700FWBDYFM70KPHGKODIAK 700 EPS CAMO
Cilinderinhoud: 700 Jaar: 2016 Model code 2SM7 Kleur: YAMAHA BLACK
