| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
8K1-23814-00 1E62344100008K12381400 |
HOLDER, HANDLE UPPER
|
||||
| # 2 |
95812-08030 9581208030 9581208030 |
BOLT, FLANGE
|
||||
| # 3 |
1HP-F3813-00 1HPF381300 1HPF381300 |
COLUMN, STEERING 2
|
||||
| # 4 |
1HP-F2517-00 1HPF251700 1HPF251700 |
SUPT., STRG. COLUM
|
Contact | |||
| # 5 |
90105-10204 9581210016009010510204 |
BOLT, FLANGE
|
||||
| # 6 |
37S-F3812-00 37SF381200 37SF381200 |
PLANE BEARING, STE
|
||||
| # 7 |
93112-31800 9311231800 9311231800 |
OIL SEAL
|
||||
| # 8 |
1HP-F3868-00 1HPF386800 1HPF386800 |
BRACKET, STEERING
|
||||
| # 9 |
97022-08060 9701708060009702208060 |
BOLT, HEXAGON
|
||||
| # 10 |
1UY-23894-01 1UY2389401 1UY2389401 |
WASHER, LOCK 1
|
||||
| # 11 |
90387-090R0 90387106T40090387090R0 |
COLLAR(85G)
|
||||
| # 12 |
3B4-23875-10 3B42387510 3B42387510 |
BEARING, STEERING LOWER
|
||||
| # 13 |
90105-10204 9581210016009010510204 |
BOLT, FLANGE
|
||||
| # 14 |
90387-22014 9038722014 9038722014 |
COLLAR
|
||||
| # 15 |
90185-22008 9018522008 9018522008 |
NUT, SELF-LOCKING
|
||||
| # 16 |
90387-22591 9038722591 9038722591 |
COLLAR (1T3)
|
||||
| # 17 |
3B4-2381B-01 3B42381B01 3B42381B01 |
JOINT
|
||||
| # 18 |
90119-08106 9011908109009011908106 |
BOLT, WITH WASHER
|
||||
| # 19 |
3B4-238B0-30 3B4238B050003B4238B030 |
POWER STRG. ACTUATOR
|
||||
| # 20 |
1HP-F38B6-00 1HPF38B600 1HPF38B600 |
COVER, MOTOR
|
||||
| # 21 |
90109-06172 9010906172 9010906172 |
BOLT
|
||||
| # 22 |
90105-08153 9581208030009010508153 |
BOLT, FLANGE
|
||||
| # 23 |
90201-08048 9020108048 9020108048 |
WASHER, PLATE
|
||||
| # 24 |
1HP-F3816-00 1HPF381600 1HPF381600 |
ARM, PITMAN
|
||||
| # 25 |
90201-16021 9020116021 9020116021 |
WASHER, PLATE
|
||||
| # 26 |
95612-16100 9561216100 9561216100 |
NUT U
|
||||
| # 27 |
91402-20025 9149020035009140220025 |
PIN, COTTER
|
||||
| # 28 |
5KM-23831-00 5KM2383100 5KM2383100 |
ROD, TIE
|
||||
| # 29 |
1UY-23841-01 1UY2384101 1UY2384101 |
JOINT, UNIVERSAL 1
|
||||
| # 30 |
1UY-23845-01 1UY2384501 1UY2384501 |
JOINT, UNIVERSAL 2
|
||||
| # 31 |
95302-10700 9531410600009530210700 |
NUT(3BM)
|
||||
| # 32 |
90170-10010 9017010010 9017010010 |
NUT
|
||||
| # 33 |
90171-10001 9017110001 9017110001 |
NUT, CASTLE
|
||||
| # 34 |
90209-10229 9020910229 9020910229 |
WASHER (25G)
|
||||
| # 35 |
91401-20020 9149020025009140120020 |
PIN, COTTER
|

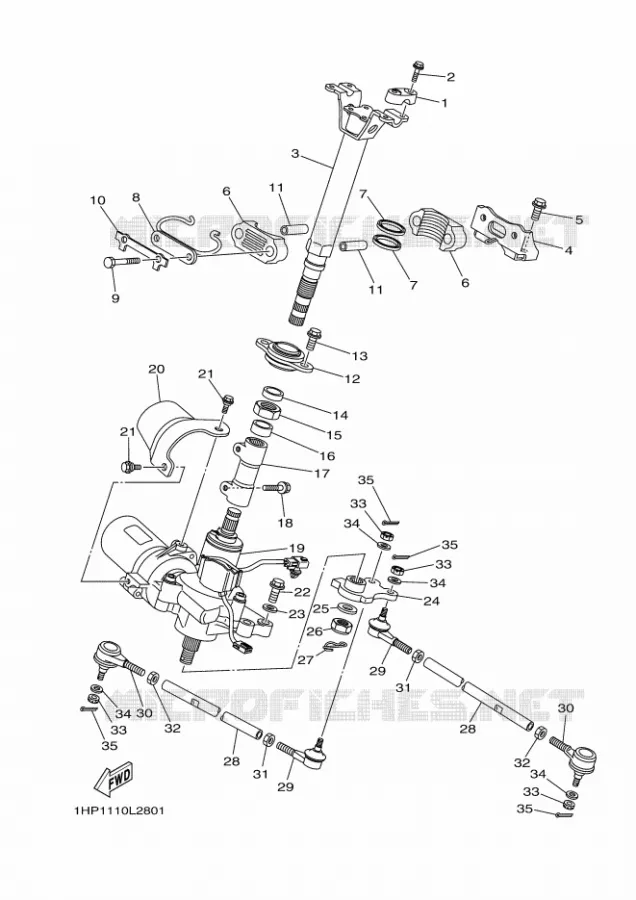

Yamaha YFM700FWADYFM7FGPB
Cilinderinhoud: 700 Jaar: 2012 Model code 1HPE Kleur: DARK PURPLISH BLUE SOLID N
