Winkelwagen
| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|

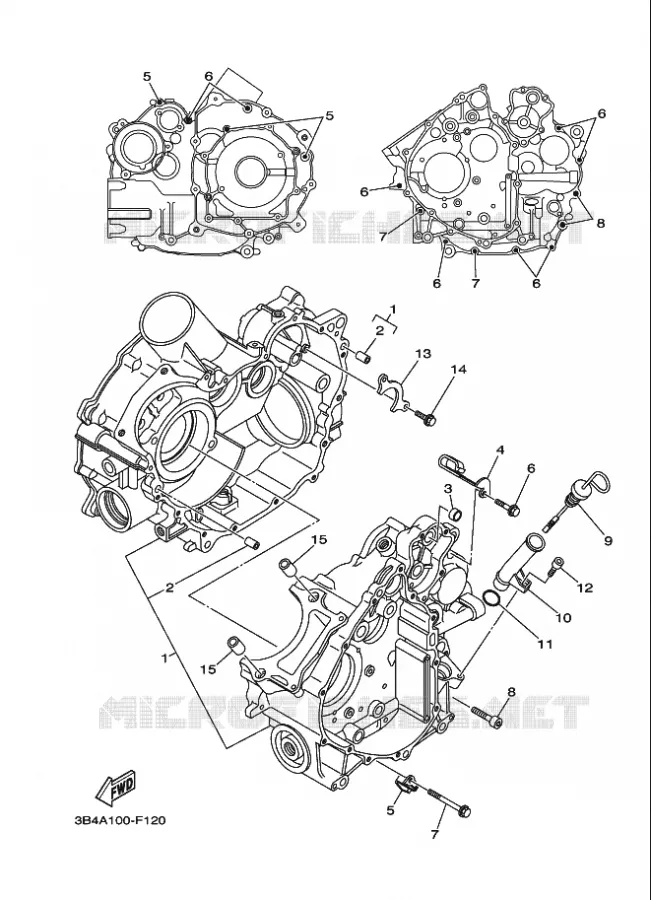

| # 1 |
3B4-15100-02 3B41510002 3B41510002 |
CRANKCASE ASSY
|
Contact | |||
| # 2 |
99530-10116 9953010116 9953010116 |
PIN, DOWEL(2VG)
|
||||
| # 3 |
3B4-18581-00 3B41858100 3B41858100 |
SPACER, CAM SHAFT
|
||||
| # 4 |
90462-10041 9046210041 9046210041 |
CLAMP
|
||||
| # 5 |
90462-08049 9046208049 9046208049 |
CLAMP
|
||||
| # 6 |
95022-06030 9502206030 9502206030 |
BOLT, FLANGE
|
||||
| # 7 |
95022-06060 9502206060 9502206060 |
BOLT, FLANGE
|
||||
| # 8 |
91312-08040 9131408040009131208040 |
BOLT, SOCKET
|
||||
| # 9 |
3B4-15362-00 3B41536201003B41536200 |
PLUG, OIL LEVEL
|
||||
| # 10 |
3B4-15112-00 3B41511200 3B41511200 |
PIPE, OIL
|
Contact | |||
| # 11 |
93210-21631 9321021631 9321021631 |
O-RING (26H)
|
||||
| # 12 |
91312-06012 9131206012 9131206012 |
BOLT(3DM)
|
||||
| # 13 |
3B4-15388-00 3B41538800 3B41538800 |
PLATE, BEARING COVER
|
||||
| # 14 |
90105-06082 9502206020009010506082 |
BOLT, FLANGE
|
||||
| # 15 |
99530-14016 9953014016 9953014016 |
PIN, DOWEL
|
