| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
B34-274A4-00 B34274A400 B34274A400 |
BRACKET, ADAPTER 2
|
||||
| # 2 |
90111-10060 9011110006009011110060 |
BOLT
|
||||
| # 3 |
90465-08045 9046508045 9046508045 |
CLAMP
|
||||
| # 4 |
95022-06010 9502206010 9502206010 |
BOLT, FLANGE
|
||||
| # 5 |
2SF-F7461-00 1WS2746100002SFF746100 |
FOOTREST
|
||||
| # 6 |
91701-08040 9170208040009170108040 |
PIN, CLEVIS
|
||||
| # 7 |
91402-25015 9149025020009140225015 |
PIN, COTTER
|
||||
| # 8 |
90508-18056 9050818056 9050818056 |
SPRING, TORSION
|
||||
| # 9 |
B34-F7413-00 B34F741300 B34F741300 |
COVER FOOTREST
|
||||
| # 10 |
90157-05025 9858005014009015705025 |
SCREW, PAN HEAD(3YL)
|
||||
| # 11 |
90109-086F8 90109082250090109086F8 |
BOLT
|
||||
| # 12 |
1WS-27443-10 1WS2744310 1WS2744310 |
BRACKET 3
|
||||
| # 13 |
36Y-27414-00 36Y2741400 36Y2741400 |
DAMPER, FOOTREST
|
||||
| # 14 |
5VX-27114-00 5VX2711400 5VX2711400 |
STOPPER, MAIN STAND
|
||||
| # 15 |
1WS-27446-10 1WS2744610 1WS2744610 |
PLATE 2
|
||||
| # 16 |
92014-08025 9201408025 9201408025 |
BOLT, BUTTON HEAD(3YF)
|
||||
| # 17 |
B34-27211-00 B342721100 B342721100 |
PEDAL, BRAKE
|
||||
| # 18 |
1WS-18113-00 1WS1811300 1WS1811300 |
COVER, SHIFT PEDAL
|
||||
| # 19 |
90206-12074 9020612074 9020612074 |
WASHER, WAVE (17W)
|
||||
| # 20 |
4BP-27434-01 4BP2743411004BP2743401 |
BOLT
|
||||
| # 21 |
90201-12051 9020112051 9020112051 |
WASHER, PLATE
|
||||
| # 22 |
90201-08053 9020108053 9020108053 |
WASHER, PLATE
|
||||
| # 23 |
90506-23008 9050623008 9050623008 |
SPRING, TENSION
|
||||
| # 24 |
90110-08071 9011008071 9011008071 |
BOLT, HEXAGON SOCKET HEAD(38V)
|
||||
| # 25 |
90209-08295 9020908295 9020908295 |
WASHER(1UF)
|
||||
| # 26 |
B34-F7463-00 B34F746300 B34F746300 |
COVER 2
|
||||
| # 27 |
90480-14003 9048014003 9048014003 |
GROMMET
|
||||
| # 28 |
90387-06057 9038706057 9038706057 |
COLLAR
|
||||
| # 29 |
90149-06105 9014906105 9014906105 |
SCREW
|
||||
| # 30 |
1WS-27425-00 1WS2742500 1WS2742500 |
BRACKET, FOOTREST 2
|
||||
| # 31 |
95802-06010 9581706010009580206010 |
BOLT, FLANGE
|
||||
| # 32 |
90269-08008 9026908008 9026908008 |
RIVET
|
||||
| # 33 |
5WX-F7441-01 5WXF744101 5WXF744101 |
FOOTREST REAR 2
|
||||
| # 34 |
B34-F742L-00 B34F742L00 B34F742L00 |
BRACKET 5
|
||||
| # 35 |
90501-12743 9050112743 9050112743 |
SPRING, COMPRESSION (22N)
|
||||
| # 36 |
93501-04011 9350104011 9350104011 |
BALL
|
||||
| # 37 |
5VX-27437-00 5VX2743700 5VX2743700 |
WASHER, SPECIAL
|
||||
| # 38 |
90240-08063 9024008063 9024008063 |
PIN, WITH HOLE (2G2)
|
||||
| # 39 |
91401-25015 9149025020009140125015 |
PIN, COTTER
|
||||
| # 40 |
90105-08053 9010508053 9010508053 |
BOLT, FLANGE
|

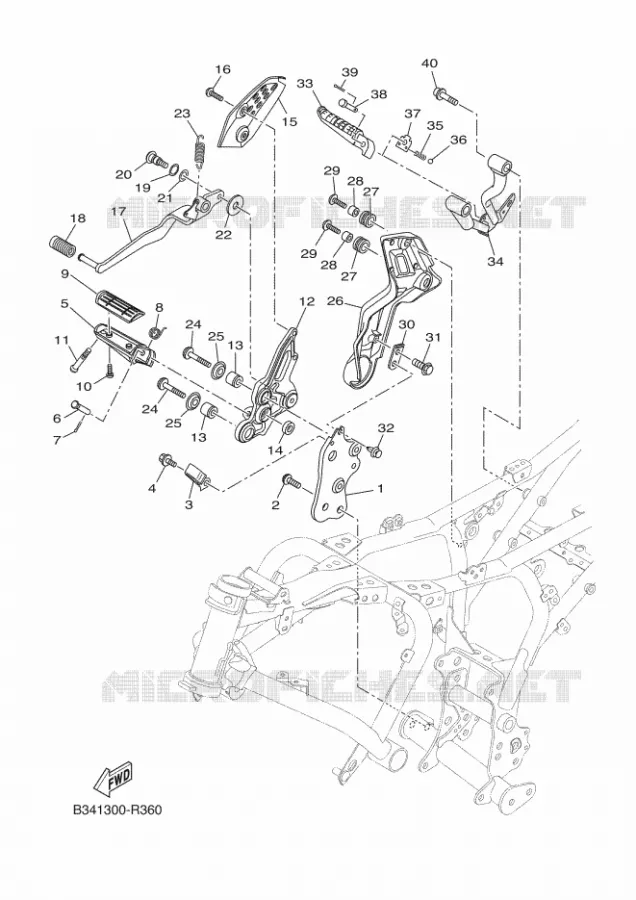

Yamaha MTM690-U
Cilinderinhoud: 700 Jaar: 2016 Model code B342 Kleur: DARK GRAYISH GREEN METALLIC 3
