Winkelwagen
| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
1D2-23102-30 1D22310230 1D22310230 |
FRONT FORK ASSY (L.H)
|
||||
| # 3 |
4V4-23153-L0 4V423153L0 4V423153L0 |
RING, SNAP
|
||||
| # 4 |
4DA-23145-L0 4PU2314501004DA23145L0 |
OIL SEAL
|
||||
| # 5 |
5EB-23125-00 5EB2312500 5EB2312500 |
METAL, SLIDE 1
|
||||
| # 6 |
4DA-23144-L0 4PU2314400004DA23144L0 |
SEAL, DUST
|
||||
| # 7 |
4V4-23146-L0 4V423146L0 4V423146L0 |
WASHER
|
||||
| # 9 |
4YR-23173-00 4YR2317300 4YR2317300 |
SPINDLE, TAPER
|
||||
| # 11 |
1D2-23141-30 1D22314130 1D22314130 |
RESSORT, FOURCHE AVA
|
||||
| # 12 |
3LR-23149-00 3LR2314900 3LR2314900 |
WASHER, SPRING UPPER
|
||||
| # 13 |
5WM-23118-00 5WM2311800 5WM2311800 |
SPACER
|
||||
| # 14 |
3TJ-23111-00 3TJ2311100 3TJ2311100 |
BOLT, CAP
|
||||
| # 15 |
4V4-23188-L0 4V423188L1004V423188L0 |
JOINT TORIQUE
|
||||
| # 16 |
509-23158-L0 50923158L0 50923158L0 |
GASKET
|
||||
| # 17 |
3D8-23181-00 3D82318100 3D82318100 |
BOLT, HEXAGON SOCKET HEAD
|
||||
| # 18 |
1D2-23103-30 1D22310330 1D22310330 |
FRONT FORK ASSY (R.H)
|
||||
| # 20 |
4V4-23153-L0 4V423153L0 4V423153L0 |
RING, SNAP
|
||||
| # 21 |
4DA-23145-L0 4PU2314501004DA23145L0 |
OIL SEAL
|
||||
| # 22 |
5EB-23125-00 5EB2312500 5EB2312500 |
METAL, SLIDE 1
|
||||
| # 23 |
4DA-23144-L0 4PU2314400004DA23144L0 |
SEAL, DUST
|
||||
| # 24 |
4V4-23146-L0 4V423146L0 4V423146L0 |
WASHER
|
||||
| # 26 |
4YR-23173-00 4YR2317300 4YR2317300 |
SPINDLE, TAPER
|
||||
| # 28 |
1D2-23141-30 1D22314130 1D22314130 |
RESSORT, FOURCHE AVA
|
||||
| # 29 |
3LR-23149-00 3LR2314900 3LR2314900 |
WASHER, SPRING UPPER
|
||||
| # 30 |
5WM-23118-00 5WM2311800 5WM2311800 |
SPACER
|
||||
| # 31 |
3TJ-23111-00 3TJ2311100 3TJ2311100 |
BOLT, CAP
|
||||
| # 32 |
4V4-23188-L0 4V423188L1004V423188L0 |
JOINT TORIQUE
|
||||
| # 33 |
509-23158-L0 50923158L0 50923158L0 |
GASKET
|
||||
| # 34 |
3D8-23181-00 3D82318100 3D82318100 |
BOLT, HEXAGON SOCKET HEAD
|
||||
| # 35 |
91312-08025 9131708025009131208025 |
BOLT, SOCKET
|
||||
| # 36 |
11D-23340-10 11D2334010 11D2334010 |
UNDER BRACKET COMP.
|
||||
| # 37 |
93332-00008 9333200008 9333200008 |
BRG, CYL-CAL ROLLER 131G KY
|
||||
| # 38 |
95022-08040 9502208040 9502208040 |
BOLT, FLANGE
|
||||
| # 39 |
5VK-2334G-20 5VK2334G20 5VK2334G20 |
BRACKET 1
|
||||
| # 40 |
5VK-2334H-20 5VK2334H20 5VK2334H20 |
BRACKET 2
|

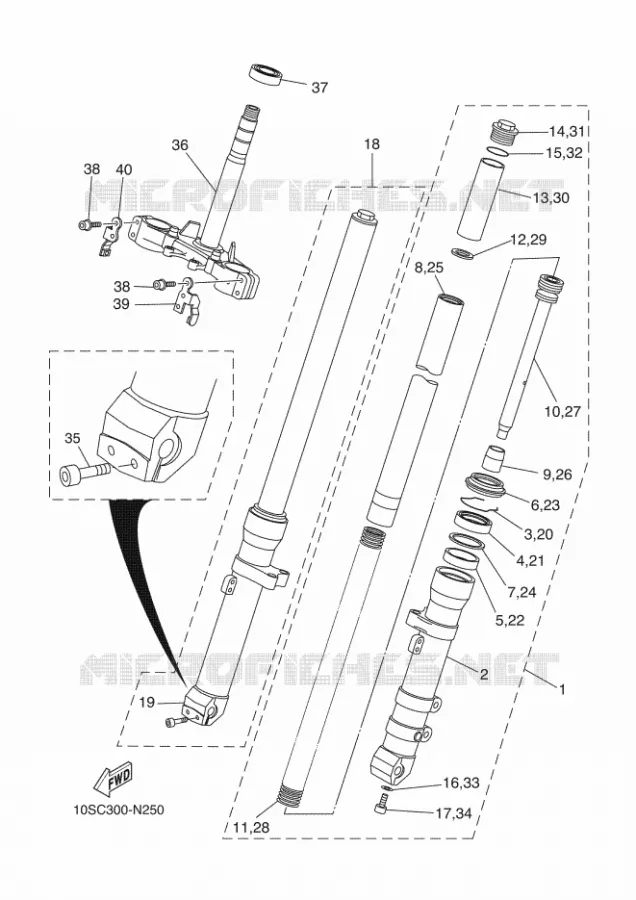

Yamaha XT660X
Cilinderinhoud: 660 Jaar: 2014 Model code 10SC Kleur: YAMAHA BLACK
