| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
5VK-E3586-10 5VK1358600005VKE358610 |
JOINT, CARBURETOR 1
|
||||
| # 2 |
90450-72001 9045072003009045072001 |
HOSE CLAMP ASSY
|
||||
| # 3 |
5VK-E4411-00 5VKE441100 5VKE441100 |
CASE AIR CLEANER 1
|
||||
| # 4 |
5VK-E4453-00 5VKE445300 5VKE445300 |
JOINT, AIR CLEANER 1
|
||||
| # 5 |
5VK-E441A-00 5VKE441A00 5VKE441A00 |
COVER, CLEANER CASE 1
|
||||
| # 6 |
5VK-E4452-00 5VKE445200 5VKE445200 |
SEAL
|
||||
| # 7 |
9770M-50025 9770M50025 9770M50025 |
SCREW, TAPPING
|
||||
| # 8 |
5VK-E4451-00 5VKE445100 5VKE445100 |
ELEMENT, AIR CLEANER
|
||||
| # 9 |
5VK-E4437-00 5VKE443700 5VKE443700 |
DUCT
|
||||
| # 10 |
5VK-E441E-00 5VKE441E00 5VKE441E00 |
CASE, AIR CLEANER 1
|
||||
| # 11 |
5VK-E4457-00 5VKE445700 5VKE445700 |
SEAL
|
||||
| # 12 |
5VK-F1621-00 5VKF162100 5VKF162100 |
FLAP
|
||||
| # 13 |
5VK-H2121-00 5VKH212100 5VKH212100 |
PAD BATTERY
|
||||
| # 14 |
5VK-H2122-00 5VKH212200 5VKH212200 |
SEAT BATTERY
|
||||
| # 15 |
5VK-E443E-00 5VKE443E00 5VKE443E00 |
PIPE DRAIN
|
||||
| # 16 |
90467-13062 9046714117009046713062 |
CLIP(MG5)
|
||||
| # 17 |
90338-08801 9033808801 9033808801 |
PLUG
|
||||
| # 18 |
5LW-E443E-00 5LWE443E00 5LWE443E00 |
PIPE DRAIN
|
||||
| # 19 |
90467-12800 9046712808009046712800 |
CLIP
|
||||
| # 20 |
90467-23800 9046723800 9046723800 |
CLIP
|
||||
| # 21 |
5VK-E5371-00 5VKE537100 5VKE537100 |
BREATHER
|
||||
| # 22 |
5VK-E1167-00 5VKE116700 5VKE116700 |
PIPE, BREATHER 2
|
||||
| # 23 |
90467-14800 9046714800 9046714800 |
CLIP
|
||||
| # 24 |
90467-17801 9046717801 9046717801 |
CLIP
|
||||
| # 25 |
5VK-E3591-00 5VKE359100 5VKE359100 |
CHAMBER AIR 2
|
||||
| # 26 |
90450-59001 9045059005009045059001 |
HOSE CLAMP ASSY
|
||||
| # 27 |
90480-20566 9048020566 9048020566 |
GROMMET(4BH)
|
||||
| # 28 |
5VK-E243A-10 5VKE243A10 |
HOSE 1
|
Contact | |||
| # 29 |
90445-12004 9044512004 9044512004 |
HOSE (L510)
|
||||
| # 30 |
90467-11090 9046710135009046711090 |
CLIP(3BM)
|
||||
| # 31 |
90467-11108 9046710135009046711108 |
CLIP(3BM)
|
||||
| # 32 |
90467-11108 9046710135009046711108 |
CLIP(3BM)
|
||||
| # 33 |
5VK-E3545-00 5VKE354510005VKE354500 |
HOSE 1
|
||||
| # 34 |
90467-170A2 90467170A2 90467170A2 |
CLIP
|
||||
| # 35 |
90467-17128 9046717128 9046717128 |
CLIP(3TB)
|
||||
| # 36 |
5VK-13542-00 5VK1354200 5VK1354200 |
HOSE, VACUUM SENSING 1
|
||||
| # 37 |
90467-07138 9046707138 9046707138 |
CLIP(4BH)
|
||||
| # 38 |
95827-06025 9581706025009582706025 |
BOLT, FLANGE
|
||||
| # 39 |
95827-06030 9581706030009582706030 |
BOLT, FLANGE
|
||||
| # 40 |
90387-075H4 90387075H4 90387075H4 |
COLLAR (17W)
|
||||
| # 41 |
90480-15001 9048015001 9048015001 |
GROMMET
|
||||
| # 42 |
90201-064K6 90201068160090201064K6 |
WASHER, PLATE
|
||||
| # 43 |
95827-06020 9581706020009582706020 |
BOLT, FLANGE
|
||||
| # 44 |
90387-07037 9038707037 9038707037 |
COLLAR 8111266500
|
||||
| # 45 |
90480-18276 9048018276 9048018276 |
GROMMET (4L0)
|
||||
| # 46 |
95704-06500 9578006500009570406500 |
NUT, FLANGE(7NB)
|
||||
| # 47 |
5VK-13971-00 5VK1397101005VK1397100 |
TUBE 1, CARBURANT
|

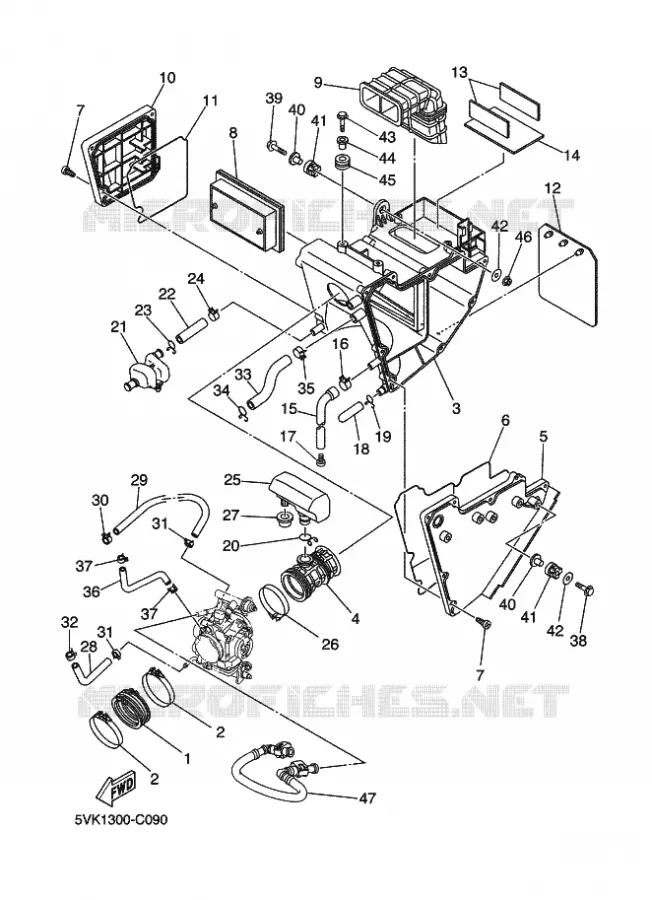

Yamaha XT660R
Cilinderinhoud: 660 Jaar: 2010 Model code 5VKE Kleur: YAMAHA BLACK
