| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|

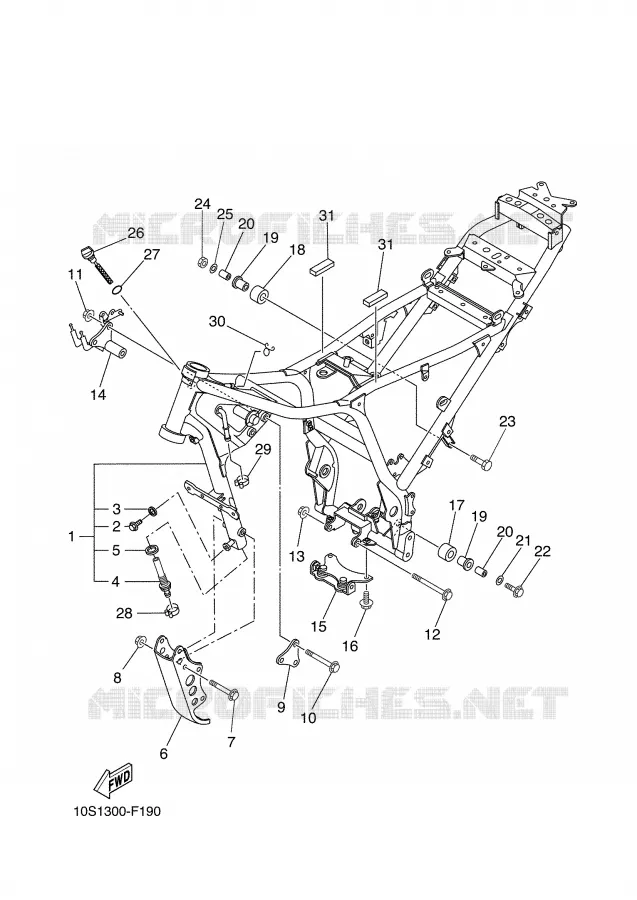

| # 1 |
5VK-F1110-10-00 5VKF11101000 5VKF11101000 |
FRAME COMP
|
Contact | |||
| # 2 |
95807-08012-00 958170801200958070801200 |
BOLT, FLANGE
|
||||
| # 3 |
90430-08119-00 902010808700904300811900 |
WASHER, PLATE 3411117500
|
||||
| # 4 |
5VK-F1756-00-00 5VKF17560000 5VKF17560000 |
NET FILTER
|
||||
| # 5 |
90430-22123-00 904302212300 904302212300 |
GASKET (583 OIL TANK)
|
||||
| # 6 |
5VK-F1316-00-00 5VKF13160000 5VKF13160000 |
STAY ENGINE 2
|
||||
| # 7 |
95814-10070-00 958141007000 958141007000 |
BOLT, FLANGE
|
||||
| # 8 |
90179-10658-00 957041050000901791065800 |
NUT, FLANGE(3BM)
|
||||
| # 9 |
5VK-F1315-00-00 5VKF13150000 5VKF13150000 |
STAY ENGINE 1
|
||||
| # 10 |
95814-10100-00 958141010000 958141010000 |
BOLT, FLANGE(4TR)
|
||||
| # 11 |
90179-10658-00 957041050000901791065800 |
NUT, FLANGE(3BM)
|
||||
| # 12 |
90105-10040-00 901051004000 901051004000 |
BOLT
|
||||
| # 13 |
90179-10658-00 957041050000901791065800 |
NUT, FLANGE(3BM)
|
||||
| # 14 |
5VK-F1410-00-00 5VKF14100000 5VKF14100000 |
ENGINE BRACKET COMP.
|
||||
| # 15 |
5VK-21445-00-00 5VK214450000 5VK214450000 |
STAY, MUFFLER 1
|
||||
| # 16 |
95024-08016-00 950240801600 950240801600 |
BOLT, FLANGE (3JPE)
|
||||
| # 17 |
30X-22178-00-00 30X221780000 30X221780000 |
TENSIONER
|
||||
| # 18 |
10V-22178-00-00 10V221780000 10V221780000 |
TENSIONER
|
||||
| # 19 |
10V-22184-00-00 10V221840000 10V221840000 |
BUSH
|
||||
| # 20 |
90387-08024-00 903870802400 903870802400 |
COLLAR
|
||||
| # 21 |
90201-082H0-00 90201082H000 90201082H000 |
WASHER, PLATE (22K)
|
||||
| # 22 |
95827-08040-00 958170804000958270804000 |
BOLT, FLANGE
|
||||
| # 23 |
90101-08428-00 901010842800 901010842800 |
BOLT (2W6)
|
||||
| # 24 |
95607-08100-00 956170810000956070810000 |
NUT, U
|
||||
| # 25 |
92907-08200-00 929070820000 929070820000 |
WASHER(6TC)
|
||||
| # 26 |
5VK-15362-00-00 5VK1536201005VK153620000 |
PLUG, OIL LEVEL
|
||||
| # 27 |
93210-19123-00 932101912300 932101912300 |
O-RING (646)
|
||||
| # 28 |
90467-19800-00 904671980000 904671980000 |
CLIP
|
||||
| # 29 |
90467-17800-00 904671780000 904671780000 |
CLIP
|
||||
| # 30 |
90467-10008-00 904671110600904671000800 |
CLIP(1JH)
|
||||
| # 31 |
5VK-21746-00-00 5VK217460000 5VK217460000 |
DAMPER
|
