| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
4WV-25383-00 4WV2538300 4WV2538300 |
COLLAR, WHEEL
|
||||
| # 2 |
90114-10010 9011410014009011410010 |
BOLT, SERRATION
|
||||
| # 3 |
4BD-25390-00-MA 4BD2539000MA 4BD2539000MA |
ROUE ARRIERE COMPLET
|
Contact | |||
| # 4 |
90179-10540 9017910540 9017910540 |
NUT(2HR)
|
||||
| # 5 |
94110-1011H 941101011H 941101011H |
PNEU
|
Contact | |||
| # 6 |
93900-00022 9390000030009390000022 |
VALVE, RIM(2GH)
|
||||
| # 7 |
4BD-25390-00-MA 4BD2539000MA 4BD2539000MA |
ROUE ARRIERE COMPLET
|
Contact | |||
| # 8 |
94110-1011H 941101011H 941101011H |
PNEU
|
Contact | |||
| # 9 |
93900-00022 9390000030009390000022 |
VALVE, RIM(2GH)
|
||||
| # 10 |
90179-10540 9017910540 9017910540 |
NUT(2HR)
|
||||
| # 11 |
4WV-46540-00 4WV4654000 4WV4654000 |
LOGEMENT D'AXE ARRIERE COMP.
|
Contact | |||
| # 12 |
93306-00805 9330600809009330600805 |
BEARING
|
||||
| # 13 |
93106-42037 9310642037 9310642037 |
OIL SEAL(3HN)
|
||||
| # 14 |
4GB-25321-00 4GB2532100 |
PLATE, BRAKE SHOE
|
Contact | |||
| # 15 |
3GH-25129-00 3GH2512910003GH2512900 |
SEAL, PLATE DUST
|
||||
| # 16 |
4WV-W2536-00 4WVW253E01004WVW253600 |
BRAKE SHOE KIT
|
||||
| # 17 |
90507-20002 9050720002 9050720002 |
SPRING, TENSION 2462533300
|
||||
| # 18 |
93210-14104 9321014579009321014104 |
O-RING (26H)
|
||||
| # 19 |
4WV-25351-00 4WV2535100 4WV2535100 |
CAMSHAFT
|
Contact | |||
| # 20 |
148-25353-00 1482535300 1482535300 |
SHIM, CAM SHAFT
|
||||
| # 21 |
3Y6-2533A-01 3Y62533A01 |
PLATE, INDICATOR
|
Contact | |||
| # 22 |
4WV-25355-00 4WV2535500 4WV2535500 |
LEVIER, AXE A CAME
|
Contact | |||
| # 23 |
901010627800 901010627800901010627800 |
BOLT, HEXAGON (538)
|
||||
| # 24 |
95307-06600 9531706600009530706600 |
NUT(6TA)
|
||||
| # 25 |
90201-10118 90201108J9009020110118 |
WASHER, PLATE
|
||||
| # 26 |
95027-10016 9502710016 9502710016 |
BOLT, SMALL FLANGE
|
||||
| # 27 |
90506-16482 9050616482 9050616482 |
SPRING, TENSION(4GB)
|
||||
| # 28 |
4GB-46513-00 4GB4651300 4GB4651300 |
RETAINER
|
||||
| # 29 |
95817-08040 9581708040 9581708040 |
BOLT, FLANGE
|
||||
| # 30 |
4WV-25381-00 4WV2538100 |
AXLE, WHEEL
|
Contact | |||
| # 31 |
90387-284T0 90387284T0 90387284T0 |
COLLAR(2NL)
|
||||
| # 32 |
93210-26606 9321026662009321026606 |
O-RING(22F)
|
||||
| # 33 |
4GB-2531E-00 4GB2531E00 4GB2531E00 |
DRUM, BRAKE
|
||||
| # 34 |
90114-10012 9011410016009011410012 |
BOLT, SERRATION
|
||||
| # 35 |
4GB-25336-00 4GB2533600 4GB2533600 |
RING 2
|
||||
| # 36 |
90201-162L6 90201162L6 90201162L6 |
WASHER, PLATE(2HR)
|
||||
| # 37 |
90171-16048 9017116001009017116048 |
NUT, CASTLE
|
||||
| # 38 |
91401-30030 9149030030009140130030 |
PIN, COTTER
|
||||
| # 39 |
52H-2512A-00 52H2512A00 52H2512A00 |
CAP, WHEEL
|
||||
| # 40 |
90445-080K8 90445080K8 90445080K8 |
DURITE (L1200)
|
Contact | |||
| # 41 |
90467-08075 9046708021009046708075 |
CLIP (16G)
|
||||
| # 42 |
90105-10751 9581710025009010510751 |
BOLT, FLANGE(3GD)
|
||||
| # 43 |
90201-101J1 90201101J1 90201101J1 |
WASHER, PLATE(47X)
|
||||
| # 44 |
90105-10751 9581710025009010510751 |
BOLT, FLANGE(3GD)
|
||||
| # 45 |
90201-101J1 90201101J1 90201101J1 |
WASHER, PLATE(47X)
|
||||
| # 46 |
4SH-25367-00 4SH2536701004SH2536700 |
COVER, HUB DUST
|

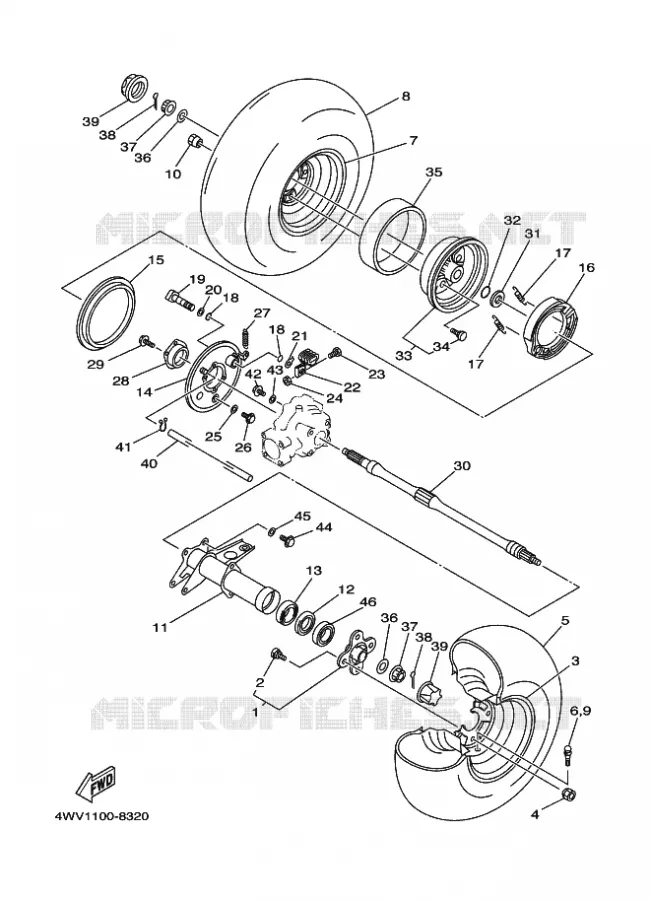

Yamaha YFM600FWA
Cilinderinhoud: 600 Jaar: 1998 Model code 4WV4 Kleur: PASTEL DEEP GREEN
