| # 1 |
BN6-21110-00 BN62111000 BN62111000 |
FRAME COMP.
|
||||
| # 2 |
BN6-21190-00 BN62119000 BN62119000 |
REAR FRAME COMP.
|
||||
| # 3 |
90149-10002 9014910003009014910002 |
SCREW
|
||||
| # 4 |
2CR-21116-00 2CR2111600 2CR2111600 |
COLLAR
|
||||
| # 5 |
BN6-21670-00 BN62167000 BN62167000 |
REINF. COMP.
|
||||
| # 6 |
90111-06155 9011106155 9011106155 |
BOLT, HEX. SOCKET BUTTON
|
||||
| # 7 |
95024-10040 9502410040 9502410040 |
BOLT, SMALL FLANGE
|
||||
| # 8 |
13S-21414-00 13S2141400 13S2141400 |
BOSS, ENGINE MOUNT
|
||||
| # 9 |
13S-21424-00 13S2142400 13S2142400 |
BOSS, ENGINE MOUNT
|
||||
| # 10 |
90105-12228 9010512228 9010512228 |
BOLT, WASHER BASED (14A)
|
||||
| # 11 |
90179-12004 9017912004 9017912004 |
NUT
|
||||
| # 12 |
90338-15004 9033815004 9033815004 |
PLUG
|
||||
| # 13 |
2C0-24182-00 2C02418200 2C02418200 |
DAMPER, LOCATING 2
|
||||
| # 14 |
2C0-21486-00 2C02148600 2C02148600 |
DAMPER 2
|
||||
| # 15 |
13S-21435-00 13S2143500 13S2143500 |
BRACKET, MUFFLER 1
|
||||
| # 16 |
90105-08171 9581208020009010508171 |
BOLT, FLANGE
|
||||
| # 17 |
13S-2110M-00 13S2110M00 13S2110M00 |
COVER ASSY 1
|
||||
| # 18 |
13S-2174X-00 13S2174X00 13S2174X00 |
DAMPER
|
||||
| # 19 |
2C0-2174Y-00 2C02174Y00 2C02174Y00 |
DAMPER
|
||||
| # 20 |
2C0-21746-00 2C02174600 2C02174600 |
DAMPER
|
||||
| # 21 |
90269-07010 9026907010 9026907010 |
RIVET
|
||||
| # 22 |
2C0-8258J-00 2C08258J00 2C08258J00 |
HOUSING, CONNECTEUR 1
|
||||
| # 23 |
2C0-21279-00 2C02127900 2C02127900 |
PLUG, BLIND
|
||||
| # 24 |
4B5-28268-00 4B52826800 4B52826800 |
SEAL 4
|
||||
| # 25 |
2CR-22875-01 2CR2287501 2CR2287501 |
SEAL 3
|
||||
| # 26 |
5SL-21268-00 5SL2126800 5SL2126800 |
SEAL
|
||||
| # 27 |
4B5-28238-00 4B52823800 4B52823800 |
SEAL 3
|
||||
| # 28 |
90464-13004 9046413004 9046413004 |
CLAMP
|
||||
| # 29 |
13S-2833A-00 13S2833A010013S2833A00 |
BRACKET 7
|
||||
| # 30 |
90480-10003 9048010003 9048010003 |
GROMMET
|
||||
| # 31 |
90387-06048 9038706048 9038706048 |
COLLAR
|
||||
| # 32 |
90183-05076 90183050A6009018305076 |
NUT, SPRING
|
||||
| # 33 |
95D02-06020 95D0206020 95D0206020 |
BOLT, FLANGE DEEP RECESS
|
||||
| # 34 |
13S-12679-00 13S1267900 13S1267900 |
DAMPER, SHROUD 6
|

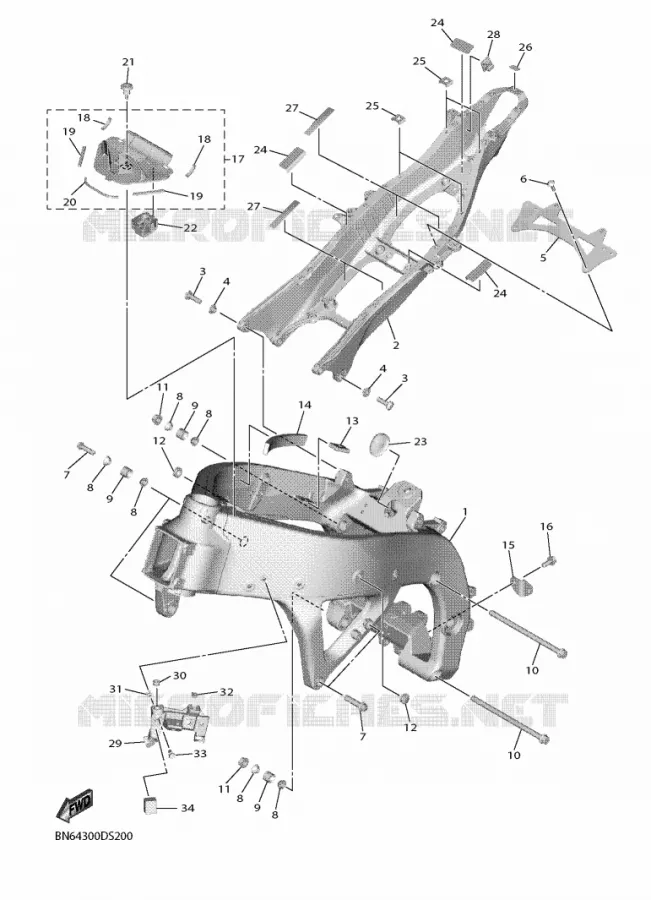

Yamaha YZF600
Cilinderinhoud: 600 Jaar: 2017 Model code BN64 Kleur: MAT DARK GRAY METALLIC 6
