Winkelwagen
| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|

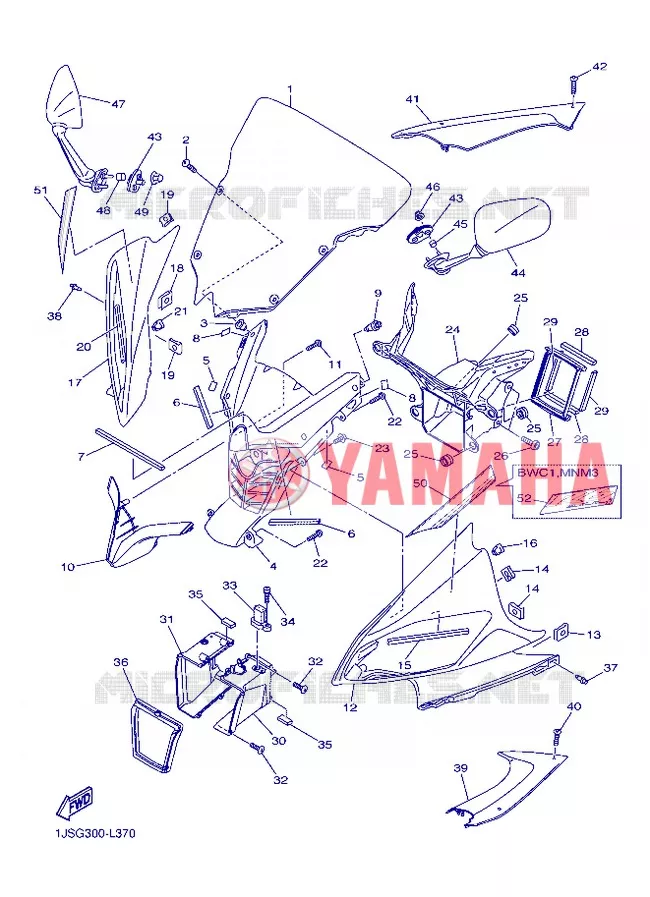

| # 1 |
13S-28381-00 13S2838100 13S2838100 |
WINDSHIELD
|
||||
| # 2 |
90150-05023 9015005023 9015005023 |
SCREW, ROUND HEAD(1UX)
|
||||
| # 3 |
901790552300 901790552300901790552300 |
NUT(1KT)
|
||||
| # 4 |
13S-2836K-00 13S2836K00 13S2836K00 |
PANEL, INNER 1
|
||||
| # 5 |
3P6-28217-00 3P62821700 3P62821700 |
DAMPER 1
|
||||
| # 6 |
13S-28227-00 13S2822700 13S2822700 |
DAMPER 2
|
||||
| # 7 |
13S-28237-00 13S2823700 13S2823700 |
DAMPER 3
|
||||
| # 8 |
13S-28371-00 13S2837100 13S2837100 |
DAMPER
|
||||
| # 9 |
90269-06046 9026906046 9026906046 |
RIVET(8Y7)
|
||||
| # 10 |
13S-28365-10 13S2836510 13S2836510 |
COVER
|
||||
| # 11 |
97702-40016 9770740016009770240016 |
SCREW, TRUSS TAP.
|
||||
| # 12 |
13S-2835G-00-P1 13S2835G00P1 13S2835G00P1 |
BODY, FRONT UPPER 1
|
||||
| # 13 |
90183-05076 90183050A6009018305076 |
NUT, SPRING
|
||||
| # 14 |
90183-05042 9018305042 9018305042 |
NUT, SPRING(1YT)
|
||||
| # 15 |
2C0-28455-00 2C02845500 2C02845500 |
DAMPER, 4
|
||||
| # 16 |
90480-01605 9048001605 9048001605 |
GROMMET(4TV)
|
||||
| # 17 |
13S-2835H-00-P1 13S2835H00P1 13S2835H00P1 |
BODY, FRONT UPPER 2
|
||||
| # 18 |
90183-05076 90183050A6009018305076 |
NUT, SPRING
|
||||
| # 19 |
90183-05042 9018305042 9018305042 |
NUT, SPRING(1YT)
|
||||
| # 20 |
2C0-28455-00 2C02845500 2C02845500 |
DAMPER, 4
|
||||
| # 21 |
90480-01605 9048001605 9048001605 |
GROMMET(4TV)
|
||||
| # 22 |
97707-50016 9016705077009770750016 |
SCREW, TAPPING(4TV)
|
||||
| # 23 |
97707-40012 9770740012 9770740012 |
SCREW, TRUSS TAP.
|
||||
| # 24 |
13S-28356-00 13S2835600 13S2835600 |
STAY 1
|
||||
| # 25 |
4XV-83513-00 4XV8351300 4XV8351300 |
DAMPER
|
||||
| # 26 |
90111-06116 9011106116 9011106116 |
BOLT, HEX. SOCKET BUTTON
|
||||
| # 27 |
2C0-28342-01 2C02834202002C02834201 |
RACCORD
|
||||
| # 28 |
2C0-28217-00 2C02821700 2C02821700 |
DAMPER 1
|
||||
| # 29 |
2C0-28227-00 2C02822700 2C02822700 |
DAMPER 2
|
||||
| # 30 |
13S-2838R-00 13S2838R010013S2838R00 |
CONDUIT 2
|
||||
| # 31 |
13S-2838T-00 13S2838T010013S2838T00 |
TUBULURE 3
|
||||
| # 32 |
97702-40016 9770740016009770240016 |
SCREW, TRUSS TAP.
|
||||
| # 33 |
8FP-85886-00 8FP8588600 8FP8588600 |
SENSOR, AIR TEMPERATURE
|
||||
| # 34 |
97702-50116 9778050116009770250116 |
SCREW, PAN HEAD TAPPING (AK5)
|
||||
| # 35 |
51Y-21639-00 51Y2163900 51Y2163900 |
DAMPER 2
|
||||
| # 36 |
2C0-28371-00 2C02837100 2C02837100 |
DAMPER
|
||||
| # 37 |
90269-06008 9026906008 9026906008 |
RIVET
|
||||
| # 38 |
90269-06008 9026906008 9026906008 |
RIVET
|
||||
| # 39 |
13S-2837L-00 13S2837L00 13S2837L00 |
PANEL, CONSOLE 1
|
||||
| # 40 |
90111-05021 9011105021 9011105021 |
BOLT, HEX. SOCKET BUTTON
|
||||
| # 41 |
13S-2837M-00 13S2837M00 13S2837M00 |
PANEL, CONSOLE 2
|
||||
| # 42 |
90111-05021 9011105021 9011105021 |
BOLT, HEX. SOCKET BUTTON
|
||||
| # 43 |
13S-26298-00 13S2629800 13S2629800 |
PLATE, MIRROR FITTING 1
|
||||
| # 44 |
13S-26280-10 13S2628010 13S2628010 |
REAR VIEW MIRROR ASSY (LEFT)
|
||||
| # 45 |
90387-064T3 90387064T3 90387064T3 |
COLLAR(J45)
|
||||
| # 46 |
90176-06008 9017606008 9017606008 |
NUT, CROWN
|
||||
| # 47 |
13S-26290-10 13S2629010 13S2629010 |
REAR VIEW MIRROR ASSY (RIGHT)
|
||||
| # 48 |
90387-064T3 90387064T3 90387064T3 |
COLLAR(J45)
|
||||
| # 49 |
90176-06008 9017606008 9017606008 |
NUT, CROWN
|
||||
| # 52 |
1JS-28328-00 1JS2832800 1JS2832800 |
EMBLEM
|
Contact |
Yamaha YZF-R6
Cilinderinhoud: 600 Jaar: 2012 Model code 1JSH Kleur: BLUISH WHITE COCKTAIL 1
