| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
3AJ-13300-01-00 3AJ133000100 3AJ133000100 |
OIL PUMP ASSY
|
||||
| # 2 |
93210-13361-00 932101336100 932101336100 |
O-RING (2H7)
|
||||
| # 3 |
91317-06035-00 913170603500 913170603500 |
BOLT, SOCKET
|
||||
| # 4 |
3AJ-13325-00-00 3AJ133250000 3AJ133250000 |
GEAR, PUMP DRIVEN
|
||||
| # 5 |
99009-11400-00 990091140000 990091140000 |
CIRCLIP(24H)
|
||||
| # 6 |
5Y1-W1343-00-00 5Y1W13430000 5Y1W13430000 |
FILTRE COMP.
|
Contact | |||
| # 7 |
4DW-13415-00-00 4DW134150000 4DW134150000 |
SEAL, OIL STRAINER
|
||||
| # 8 |
98507-06016-00 985070601600 985070601600 |
SCREW, PAN HEAD(3TJ)
|
||||
| # 9 |
5Y1-15427-01-00 5Y11542710005Y1154270100 |
COVER, CAP 2
|
||||
| # 10 |
98507-06016-00 985070601600 985070601600 |
SCREW, PAN HEAD(3TJ)
|
||||
| # 11 |
90340-14132-00 903401413200 903401413200 |
PLUG, STRAIGHT SCREW(3FA)
|
||||
| # 12 |
3SX-13329-00-00 3SX133290000 3SX133290000 |
GASKET, PUMP COVER
|
||||
| # 13 |
214-11198-01-00 214111980100 214111980100 |
GASKET
|
||||
| # 14 |
4X7-13440-90-00 4X7134409000 4X7134409000 |
ELEMENT ASSY, OIL CLEANER
|
||||
| # 15 |
2WK-13447-00-00 2WK134470000 2WK134470000 |
COVER, OIL ELEMENT
|
||||
| # 16 |
93210-64297-00 932106429700 932106429700 |
O-RING (583 OIL CLEANER)
|
||||
| # 17 |
93210-07135-00 932100713500 932100713500 |
O-RING (583 OIL DRAIN BOLT)
|
||||
| # 18 |
90109-06419-00 901090641900 901090641900 |
BOLT (583 OIL DRAIN)
|
||||
| # 19 |
91317-06080-00 913170608000 913170608000 |
BOLT, SOCKET
|
||||
| # 20 |
90149-05110-00 901490511000 901490511000 |
SCREW (583)
|
||||
| # 21 |
90430-05126-00 904300512600 904300512600 |
GASKET (583)
|
||||
| # 22 |
3AJ-13161-00-00 3AJ1316101003AJ131610000 |
PIPE, DELIVERY 1
|
||||
| # 23 |
90401-08133-00 904010813300 904010813300 |
BOLT, UNION(3AJ)
|
||||
| # 24 |
90430-08204-00 904300820400 904300820400 |
GASKET(3AJ)
|
||||
| # 25 |
586-13113-00-00 586131130000 586131130000 |
SIEGE DE BILLE
|
Contact | |||
| # 26 |
93503-08007-00 935030800700 935030800700 |
BALL
|
||||
| # 27 |
90501-043E0-00 90501043E000 90501043E000 |
SPRING, COMPRESSION(1VJ)
|
||||
| # 28 |
34K-13464-00-00 34K134640000 34K134640000 |
HOSE, OIL 1
|
Contact | |||
| # 29 |
93210-10197-00 932101019700 932101019700 |
O-RING (371)
|
||||
| # 30 |
91316-06016-00 913160601600 |
BOLT, SOCKET
|
Contact | |||
| # 31 |
93210-15171-00 932101517100 932101517100 |
O-RING (341)
|
||||
| # 32 |
34K-13465-00-00 34K134650000 34K134650000 |
DURITE A HUILE
|
Contact | |||
| # 33 |
91317-06016-00 913170601600 913170601600 |
BOLT, SOCKET
|
Contact |

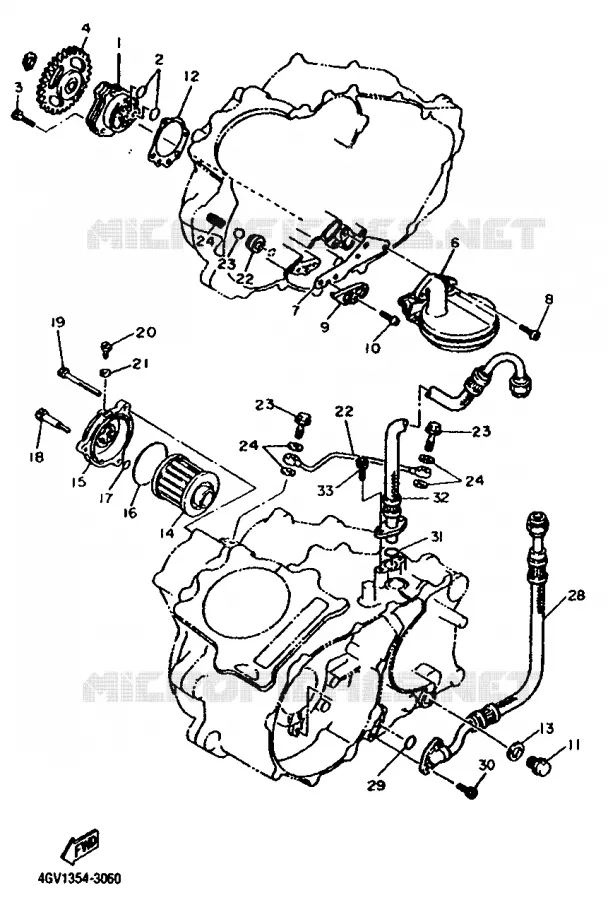

Yamaha TT600S
Cilinderinhoud: 600 Jaar: 1995 Model code 4LW2 Kleur: PURPLISH WHITE SOLID 1
