| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
93306-30102 9330630102 9330630102 |
BEARING
|
||||
| # 2 |
59C-W1760-00 59CW176000 59CW176000 |
PRIMARY SLIDING SHEAVE ASSY.
|
||||
| # 3 |
93101-35001 9310135001 9310135001 |
OIL SEAL
|
||||
| # 4 |
5RU-17632-20 5RU1763220 5RU1763220 |
WEIGHT
|
||||
| # 5 |
59C-17623-00 59C1762300 59C1762300 |
CAM
|
||||
| # 6 |
59C-17653-00 59C17653010059C1765300 |
POTENCE
|
||||
| # 7 |
59C-17641-00 59C1764100 59C1764100 |
V-BELT
|
||||
| # 8 |
59C-17611-00 59C1761100 59C1761100 |
SHEAVE, PRIMARY FIXED
|
||||
| # 9 |
59C-17649-00 59C1764900 59C1764900 |
SPACER
|
||||
| # 10 |
93210-30611 9321030611 9321030611 |
O-RING (30X)
|
||||
| # 11 |
93306-00713 9330600713 9330600713 |
BEARING
|
||||
| # 12 |
4XM-15383-00 4XM1538300 4XM1538300 |
PLATE, BEARING COVER
|
||||
| # 13 |
90151-06024 9015106023009015106024 |
SCREW, COUNTERSUNK
|
||||
| # 14 |
90179-20013 9017920013 9017920013 |
NUT
|
||||
| # 15 |
59C-17660-00 59C1766000 59C1766000 |
SECONDARY FIXED SHEAVE COMP.
|
||||
| # 16 |
59C-17670-00 59C1767000 59C1767000 |
SECONDARY SLIDING SHEAVE
|
||||
| # 17 |
93104-41119 9310441119 9310441119 |
OIL SEAL
|
||||
| # 18 |
93210-44545 9321044545 9321044545 |
O-RING (10L)
|
||||
| # 19 |
4CW-17664-00 4CW1766400 4CW1766400 |
PIN, GUIDE
|
||||
| # 20 |
90501-620A0 90501620A0 90501620A0 |
SPRING, COMPRESSION
|
||||
| # 21 |
5GJ-17690-00 5GJ1769000 5GJ1769000 |
SPRING SEAT COMP.
|
||||
| # 22 |
4WV-17644-00 4WV1764400 4WV1764400 |
SEAT, SPRING
|
||||
| # 23 |
90170-36279 9017036279 9017036279 |
NUT (5G3)
|
||||
| # 24 |
90170-18221 9017018221 9017018221 |
NUT, HEXAGON (2H7)
|
||||
| # 25 |
5VU-17681-00 5VU1768100 5VU1768100 |
SHAFT, SECONDARY
|
||||
| # 26 |
90387-26001 9038726001 9038726001 |
COLLAR
|
||||
| # 27 |
93210-26001 9321026001 9321026001 |
O-RING
|
||||
| # 28 |
93102-42004 9310242004 9310242004 |
OIL SEAL
|
||||
| # 29 |
93306-20651 9330620651 9330620651 |
BEARING
|
||||
| # 30 |
5GJ-15383-00 5GJ1538300 5GJ1538300 |
PLATE, BEARING COVER
|
||||
| # 31 |
90110-06036 9011006037009011006036 |
BOLT, HEXAGON SOCKET HEAD
|
||||
| # 32 |
99009-42500 9900942500 9900942500 |
CIRCLIP(5U8)
|
||||
| # 33 |
93102-15004 9310215004 9310215004 |
OIL SEAL
|
||||
| # 34 |
93306-30217 9330630218009330630217 |
ROULEMENT
|

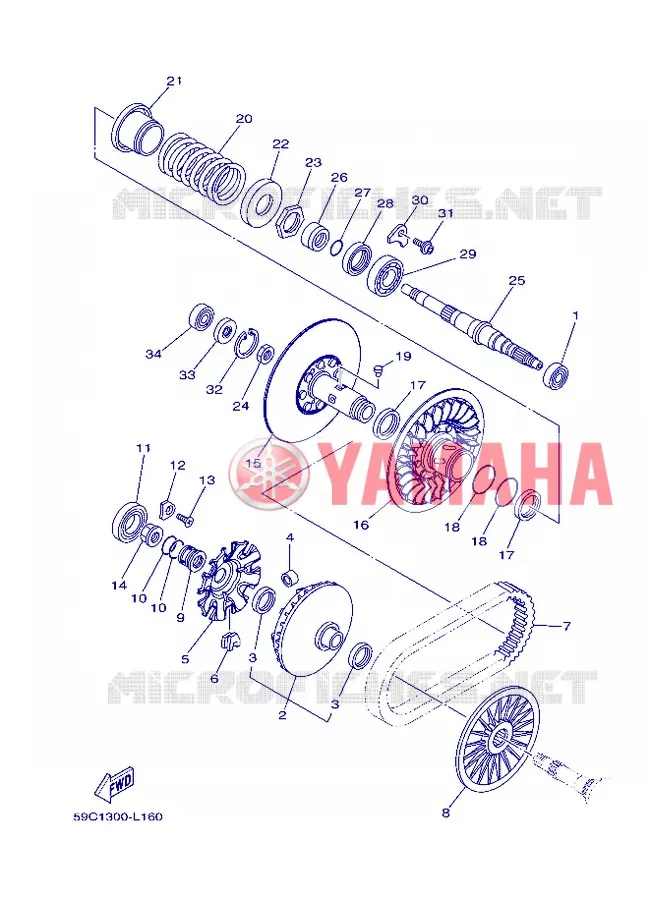

Yamaha XP500A
Cilinderinhoud: 530 Jaar: 2013 Model code 59C9 Kleur: BLUISH WHITE COCKTAIL 1
