| # 1 |
59C-11101-09 59C1110109 59C1110109 |
CYLINDER HEAD ASSY
|
||||
| # 2 |
5NL-11133-10 5NL1113310 5NL1113310 |
GUIDE, INTAKE VALVE
|
||||
| # 3 |
90105-06027 9010506027 9010506027 |
BOLT, WASHER BASED
|
||||
| # 4 |
91808-16023 9180816023 9180816023 |
PIN, DOWEL(3XW)
|
||||
| # 5 |
95022-08012 9502208012 9502208012 |
BOLT, FLANGE
|
||||
| # 6 |
90430-08119 9020108087009043008119 |
WASHER, PLATE 3411117500
|
||||
| # 7 |
90116-08087 9011608087 9011608087 |
BOLT, STUD
|
||||
| # 8 |
90116-09584 9011609584 9011609584 |
BOLT, STUD(4JH)
|
||||
| # 9 |
93612-16254 9361216254 9361216254 |
PIN, DOWEL(4XL)
|
||||
| # 10 |
90201-090P4 90201090P4 90201090P4 |
WASHER, PLATE(3TJ)
|
||||
| # 11 |
90179-09612 9017909612 9017909612 |
NUT (3TJ1)
|
||||
| # 12 |
90176-09001 9017609001 9017609001 |
NUT, CROWN
|
||||
| # 13 |
90110-06021 9011006021 9011006021 |
BOLT, HEXAGON SOCKET HEAD
|
||||
| # 14 |
90110-06379 9011006379 9011006379 |
BOLT, HEXAGON SOCKET HEAD
|
||||
| # 15 |
94701-00353 9470100353 9470100353 |
PLUG, SPARK (CR7E)
|
||||
| # 16 |
59C-11181-00 59C1118100 59C1118100 |
GASKET, CYLINDER HEAD 1
|
||||
| # 17 |
59C-11190-00 59C1119000 59C1119000 |
COVER, CYLINDER HEAD 1
|
||||
| # 18 |
5GJ-11195-00 5GJ1119500 5GJ1119500 |
GASKET
|
||||
| # 19 |
59C-11166-00 59C11166010059C1116600 |
PIPE, BREATHER 1
|
||||
| # 20 |
90467-15001 9046715001 9046715001 |
CLIP
|
||||
| # 21 |
90467-16181 9046716181 9046716181 |
CLIP
|
||||
| # 22 |
59C-11193-00 59C1119300 59C1119300 |
GASKET, HEAD COVER 1
|
||||
| # 23 |
99530-10116 9953010116 9953010116 |
PIN, DOWEL(2VG)
|
||||
| # 24 |
91312-06035 9131206035 9131206035 |
BOLT(J17)
|
||||
| # 25 |
59C-11310-09 59C11310070059C1131009 |
CYLINDER
|
||||
| # 26 |
59C-11351-00 59C11351010059C1135100 |
JOINT, D'EMBASE
|
||||
| # 27 |
93612-16254 9361216254 9361216254 |
PIN, DOWEL(4XL)
|
||||
| # 28 |
4H7-15189-00 4H71518900 4H71518900 |
PLUG
|
||||
| # 29 |
93210-22382 9321020573009321022382 |
O-RING (25G)
|
||||
| # 30 |
5PS-85790-00 5PS8579000 5PS8579000 |
THERMOSENSOR ASSY
|
||||
| # 31 |
90430-12202 9043012202 9043012202 |
GASKET(2GH)
|

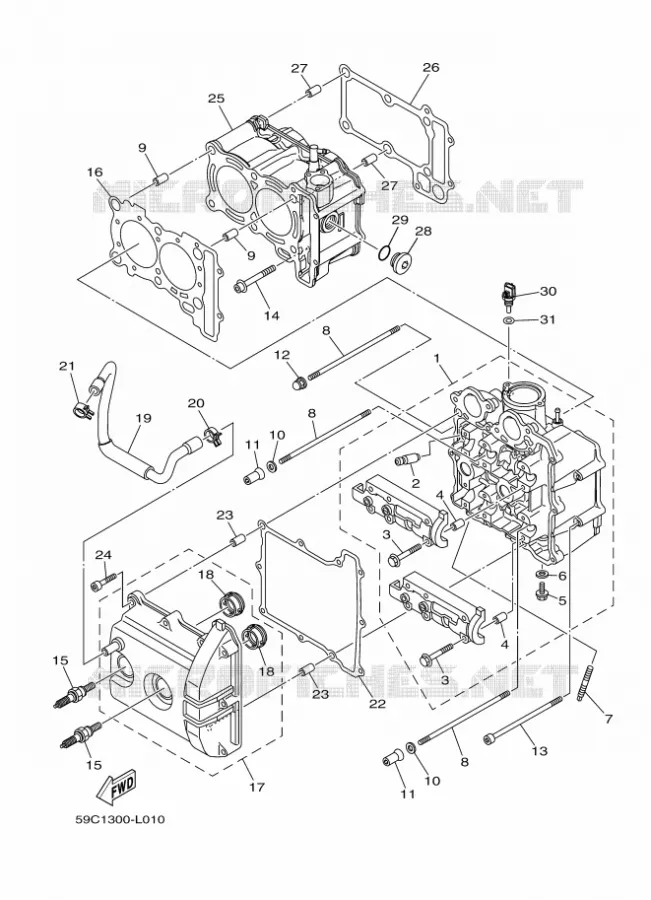

Yamaha XP500A
Cilinderinhoud: 530 Jaar: 2012 Model code 59C2 Kleur: HI TECH SILVER
