| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
1S0-F3340-00 1S0F334000 1S0F334000 |
UNDER BRACKET COMP
|
||||
| # 2 |
5C2-F3165-00 5C2F316500 5C2F316500 |
WASHER, FELT
|
||||
| # 3 |
1S0-F3394-00 1S0F339400 1S0F339400 |
BOLT SPECIAL
|
||||
| # 4 |
4P9-F3153-00 4P9F315300 4P9F315300 |
RING, SNAP
|
||||
| # 5 |
1S0-F3102-00 1S0F310200 1S0F310200 |
FRONT FORK ASSY LH
|
||||
| # 6 |
1S0-F3110-00 1S0F311000 1S0F311000 |
INNER TUBE COMP 1
|
||||
| # 7 |
1S0-F3126-00 1S0F312600 1S0F312600 |
TUBE OUTER LEFT
|
||||
| # 8 |
1S0-F3170-00 1S0F317000 1S0F317000 |
CYLINDER COMP FRONT FORK
|
||||
| # 9 |
4P9-F318X-00 4P9F318X00 4P9F318X00 |
PISTON RING
|
||||
| # 10 |
1S0-F3151-00 1S0F315100 1S0F315100 |
SPRING REBOUND
|
||||
| # 11 |
4P9-F3171-00 4P9F317100 4P9F317100 |
PISTON, FRONT FORK
|
||||
| # 12 |
4P9-F3158-00 4P9F315800 4P9F315800 |
GASKET
|
||||
| # 13 |
4P9-F3181-00 4P9F318100 4P9F318100 |
BOLT, HEXAGON SOCK
|
||||
| # 14 |
4C6-F3145-00 4C6F314500 4C6F314500 |
OIL SEAL
|
||||
| # 15 |
4P9-F3157-00 4P9F315700 4P9F315700 |
RING, PISTON
|
||||
| # 16 |
4P9-F3191-00 4P9F319100 4P9F319100 |
BOOT
|
||||
| # 17 |
1S0-F3141-00 1S0F314100 1S0F314100 |
SPRING FRONT FORK
|
||||
| # 18 |
4P9-F3113-00 4P9F311300 4P9F311300 |
COLLAR
|
||||
| # 19 |
4C6-F3147-00 4C6F314700 4C6F314700 |
O-RING
|
||||
| # 20 |
4P9-F3155-00 4P9F315500 4P9F315500 |
RING, FELT
|
||||
| # 21 |
1S0-F3154-00 1S0F315400 1S0F315400 |
CAP
|
||||
| # 22 |
1S0-F3103-00 1S0F310300 1S0F310300 |
FRONT FORK ASSY RH
|
||||
| # 23 |
1S0-F3110-00 1S0F311000 1S0F311000 |
INNER TUBE COMP 1
|
||||
| # 24 |
1S0-F3136-00 1S0F313600 1S0F313600 |
TUBE OUTER RIGHT
|
||||
| # 25 |
1S0-F3170-00 1S0F317000 1S0F317000 |
CYLINDER COMP FRONT FORK
|
||||
| # 26 |
4P9-F318X-00 4P9F318X00 4P9F318X00 |
PISTON RING
|
||||
| # 27 |
1S0-F3151-00 1S0F315100 1S0F315100 |
SPRING REBOUND
|
||||
| # 28 |
4P9-F3171-00 4P9F317100 4P9F317100 |
PISTON, FRONT FORK
|
||||
| # 29 |
4P9-F3158-00 4P9F315800 4P9F315800 |
GASKET
|
||||
| # 30 |
4P9-F3181-00 4P9F318100 4P9F318100 |
BOLT, HEXAGON SOCK
|
||||
| # 31 |
4C6-F3145-00 4C6F314500 4C6F314500 |
OIL SEAL
|
||||
| # 32 |
4P9-F3157-00 4P9F315700 4P9F315700 |
RING, PISTON
|
||||
| # 33 |
4P9-F3191-00 4P9F319100 4P9F319100 |
BOOT
|
||||
| # 34 |
1S0-F3141-00 1S0F314100 1S0F314100 |
SPRING FRONT FORK
|
||||
| # 35 |
4P9-F3113-00 4P9F311300 4P9F311300 |
COLLAR
|
||||
| # 36 |
4C6-F3147-00 4C6F314700 4C6F314700 |
O-RING
|
||||
| # 37 |
4P9-F3155-00 4P9F315500 4P9F315500 |
RING, FELT
|
||||
| # 38 |
1S0-F3154-00 1S0F315400 1S0F315400 |
CAP
|
||||
| # 39 |
1S0-F5875-00 1S0F587500 1S0F587500 |
HOLDER BRAKE HOSE 1
|
||||
| # 40 |
90110-06X20 9011006X20 9011006X20 |
BOLT HEXAGONAL SOCKET
|

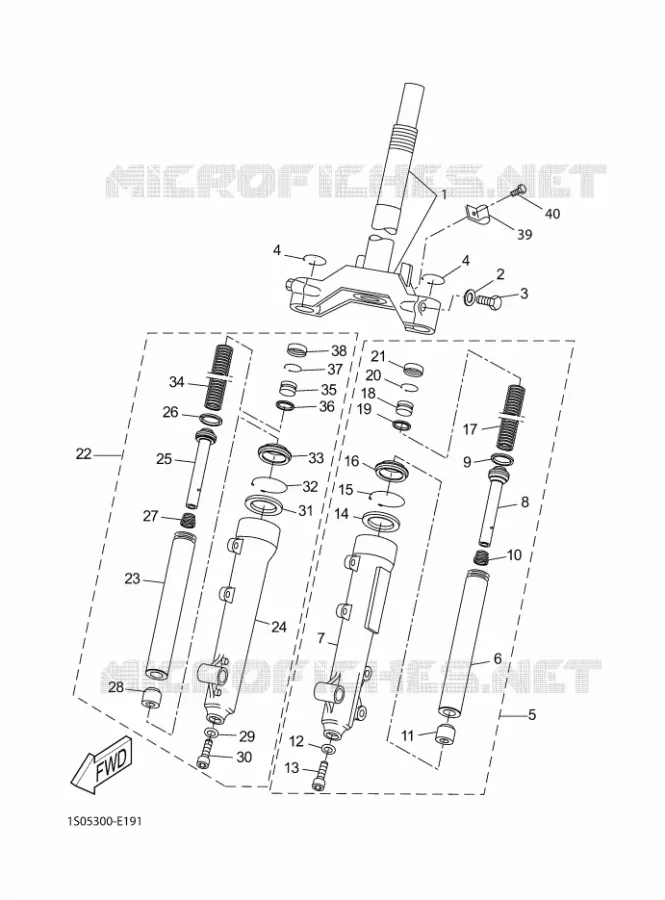

Yamaha EW50N STUNT NAKED
Cilinderinhoud: 50 Jaar: 2011 Model code 3C79 Kleur: PURPLISH WHITE SOLID 1
