| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
5WW-F3100-40 5WWF310041005WWF310040 |
FRONT FORK ASSY
|
||||
| # 2 |
5WW-F3126-40 5WWF312641005WWF312640 |
TUBE OUT 1
|
||||
| # 3 |
5WW-F3110-30 5WWF311030 5WWF311030 |
INNER TUBE ASSY 1
|
||||
| # 4 |
5WW-F3170-30 5WWF317030 5WWF317030 |
CYLINDER COMP FRONT FORK
|
||||
| # 5 |
5WW-F3166-30 5WWF316630 5WWF316630 |
SPACER OIL LOCK
|
||||
| # 6 |
37P-F3158-00 37PF315800 37PF315800 |
SPINDLE, TAPER
|
||||
| # 7 |
37P-F3181-00 37PF318100 37PF318100 |
BOLT
|
||||
| # 8 |
5WW-F3145-30 5WWF314530 5WWF314530 |
OIL SEAL
|
||||
| # 9 |
5WW-F3153-30 5WWF315330 5WWF315330 |
RING SNAP
|
||||
| # 10 |
5WW-F3144-30 5WWF314430 5WWF314430 |
SEAL DUST
|
||||
| # 11 |
5WW-F3141-30 5WWF314130 5WWF314130 |
RESSORT DE FOURCHE
|
||||
| # 12 |
5WW-F3188-30 5WWF318830 5WWF318830 |
O-RING
|
||||
| # 13 |
5WW-F3111-30 5WWF311130 5WWF311130 |
BOLT CAP
|
||||
| # 14 |
5WW-F3136-40 5WWF313641005WWF313640 |
TUBE OUT 2
|
||||
| # 15 |
5WW-F3340-30 5WWF334030 5WWF334030 |
UNDER BRACKET COMP.
|
||||
| # 16 |
5WW-F3394-30 5WWF339430 5WWF339430 |
BOLT SPECIAL
|
||||
| # 17 |
5WW-F3100-20 5WWF310041005WWF310020 |
FRONT FORK ASSY
|
||||
| # 18 |
5WW-F3136-20 5WWF313620 5WWF313620 |
TUBE OUTER RIGHT
|
||||
| # 19 |
5WW-F3181-00 5WWF318100 5WWF318100 |
BOULON, TETE HEXAGONALE CREUSE
|
Contact | |||
| # 20 |
4TD-F3145-00 4TDF314500 4TDF314500 |
OIL SEAL
|
||||
| # 21 |
5WW-F3156-00 5WWF315600 5WWF315600 |
CLIP OIL SEAL
|
||||
| # 22 |
5WW-F3144-00 5WWF314400 5WWF314400 |
SEAL DUST
|
Contact | |||
| # 23 |
NU6-23108-00 NU62310800 NU62310800 |
EMBLEM
|
Contact | |||
| # 24 |
5WW-F3126-20 5WWF312620 5WWF312620 |
TUBE OUTER LEFT
|
||||
| # 25 |
5WW-F3340-00 5WWF334000 5WWF334000 |
UNDER BRACKET COMP.
|
||||
| # 26 |
5WW-F3112-00 5WWF311200 5WWF311200 |
WASHER CAP
|
||||
| # 27 |
5WW-F3394-00 5WWF339400 5WWF339400 |
BOLT SPECIAL
|
||||
| # 28 |
5WW-F3110-00 5WWF311000 5WWF311000 |
INNER TUBE COMP1
|
||||
| # 29 |
5WW-F3111-00 5WWF311100 5WWF311100 |
BOLT CAP
|
Contact | |||
| # 30 |
5WW-F3183-00 5WWF318300 5WWF318300 |
CIRCLIP
|
||||
| # 31 |
5WW-F3165-00 5WWF316500 5WWF316500 |
WASHER FELT
|
Contact | |||
| # 32 |
5WW-F3153-00 5WWF315300 5WWF315300 |
RING SNAP
|
||||
| # 33 |
5WW-F3154-00 5WWF315400 5WWF315400 |
PLUG INNER TUBE
|
||||
| # 34 |
5WW-F3173-00 5WWF317300 5WWF317300 |
SPINDLE TAPER
|
Contact | |||
| # 35 |
5WW-F3151-00 5WWF315100 5WWF315100 |
SPRING REBOUND
|
||||
| # 36 |
5WW-F3141-00 5WWF314100 5WWF314100 |
SPRING FRONT FORK
|
||||
| # 37 |
5WW-F3147-00 5WWF314700 5WWF314700 |
O-RING
|
||||
| # 38 |
5WW-F3171-00 5WWF317100 5WWF317100 |
PISTON FRONT FORK
|
||||
| # 39 |
5WW-F3157-00 5WWF315700 5WWF315700 |
RING PISTON
|
||||
| # 40 |
22F-23414-01 BP223414000022F2341401 |
RACE, BALL 4
|
||||
| # 41 |
22F-2341E-00 BP22341E000022F2341E00 |
RETAINER, BALL BEARING
|
||||
| # 42 |
22F-23412-01 BP223412000022F2341201 |
RACE, BALL 2
|
||||
| # 43 |
22F-23411-01 BP223411000022F2341101 |
RACE, BALL 1
|
||||
| # 44 |
3VP-23416-00 3VP2341600 3VP2341600 |
COVER, BALL RACE 2
|
||||
| # 45 |
90179-25X00 9017925X00 9017925X00 |
NUT
|
Contact | |||
| # 46 |
90202-26X00 9020226X00 9020226X00 |
WASHER, PLAIN
|
Contact | |||
| # 47 |
5DS-F3418-00 5DSF341800 5DSF341800 |
WASHER, SPECIAL
|
Contact | |||
| # 48 |
5WW-F5887-02 5WWF588702 5WWF588702 |
HOLDER BRAKE HOSE
|
||||
| # 49 |
90157-05X10 9015705X10 9015705X10 |
SCREW, PAN HEAD
|
||||
| # 50 |
90105-06841 9010506841 9010506841 |
BOLT, WASHER BASED
|
Contact | |||
| # 51 |
5HE-H5111-00 5HEH511100 5HEH511100 |
REFLECTOR
|

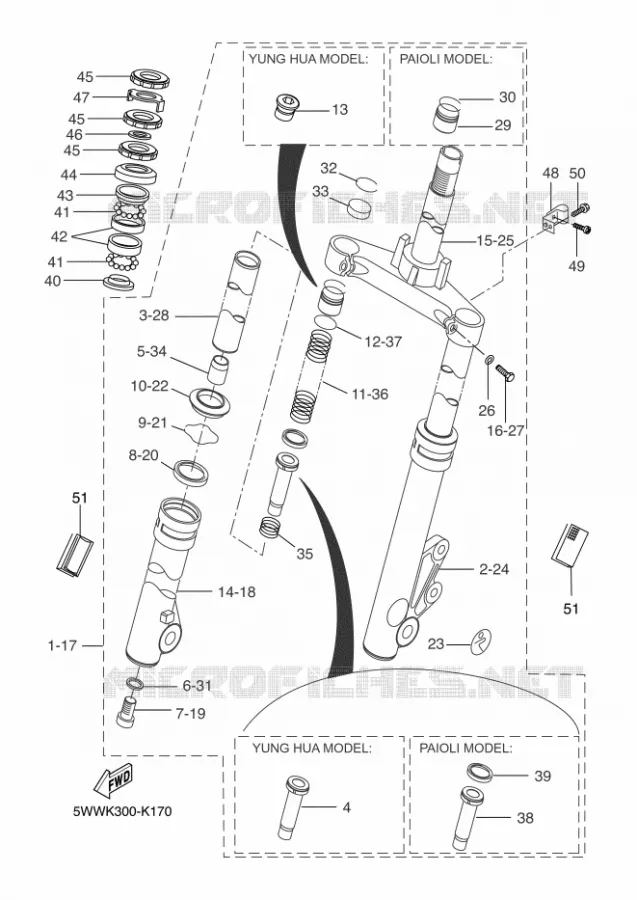

Yamaha CW50 BW'S
Cilinderinhoud: 50 Jaar: 2011 Model code 5WWK Kleur: DEEP PURPLISH BLUE METALLIC H
