| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
5C3-E5150-00 5C3E515000 5C3E515000 |
CRANKCASE ASSY
|
||||
| # 2 |
5ST-F2123-00 5STF212300 5STF212300 |
BUSH 1
|
||||
| # 3 |
4X6-F2216-00 1642221600004X6F221600 |
BUSHING, REAR CUSHION
|
||||
| # 4 |
5C3-E5142-00 5C3E514200 5C3E514200 |
GUIDE 1
|
||||
| # 5 |
95607-06100 9561706100009560706100 |
NUT, SELF-LOCKING
|
||||
| # 6 |
5ST-E5371-00 5STE537100 5STE537100 |
BREATHER
|
||||
| # 7 |
3B3-E5373-00 3B3E537300 3B3E537300 |
PIPE, BREATHER
|
||||
| # 8 |
91810-14807 9181014807 9181014807 |
PIN, DOWEL
|
||||
| # 9 |
95027-06060 9502206060009502706060 |
BOLT, FLANGE
|
||||
| # 10 |
95027-06080 9502706080 9502706080 |
BOLT, SMALL FLANGE
|
||||
| # 11 |
95027-06100 9502706100 9502706100 |
BOLT, FLANGE(4HC)
|
||||
| # 12 |
93102-19804 9310219804 9310219804 |
OIL SEAL
|
||||
| # 13 |
95817-08016 9010508X15009581708016 |
BLT, HEX, 1/4-20X5/8
|
||||
| # 14 |
90430-08119 9020108087009043008119 |
WASHER, PLATE 3411117500
|
||||
| # 15 |
5C3-E5421-00 5C3E542100 5C3E542100 |
COVER, CRANKCASE 2
|
||||
| # 16 |
3B3-E5461-00 3B3E546100 3B3E546100 |
GASKET, CRANKCASE
|
||||
| # 17 |
91810-14807 9181014807 9181014807 |
PIN, DOWEL
|
||||
| # 18 |
95027-06035 9502706035 9502706035 |
BOLT, SMALL FLANGE
|
||||
| # 19 |
95817-06040 9581706040 9581706040 |
BOLT, FLANGE
|
||||
| # 20 |
90430-06014 9043006014 9043006014 |
GASKET 256113960000
|
Contact | |||
| # 21 |
5C3-E5411-00 5C3E541100 5C3E541100 |
COVER, CRANKCASE 1
|
||||
| # 22 |
3B3-E5451-00 3B3E545100 3B3E545100 |
GASKET, CRANKCASE
|
||||
| # 23 |
91810-14807 9181014807 9181014807 |
PIN, DOWEL
|
||||
| # 24 |
95027-06025 90105060A0009502706025 |
BOLT, WASHER BASED(4KG)
|
||||
| # 25 |
5C3-E5417-00 5C3E541700 5C3E541700 |
COVER, CAP
|
||||
| # 26 |
5ST-E5453-10 5STE545310 5STE545310 |
GASKET
|
||||
| # 27 |
93102-17807 9310217807 9310217807 |
OIL SEAL
|
||||
| # 28 |
91810-14807 9181014807 9181014807 |
PIN, DOWEL
|
||||
| # 29 |
95027-06030 9502706030 9502706030 |
BOLT, SMALL FLANGE
|
||||
| # 30 |
95027-06040 9502706040 9502706040 |
BOLT, SMALL FLANGE
|
||||
| # 31 |
3B3-E5113-00 3B3E511300 3B3E511300 |
PLATE
|
||||
| # 32 |
95027-06010 9502706010 9502706010 |
BOLT, FLANGE(4MY)
|
||||
| # 33 |
3B3-E5362-00 3B3E536200 3B3E536200 |
PLUG, OIL LEVEL
|
||||
| # 34 |
5ML-E3769-00 5MLE376900 5MLE376900 |
O-RING
|
||||
| # 35 |
95817-08016 9010508X15009581708016 |
BLT, HEX, 1/4-20X5/8
|
||||
| # 36 |
90430-08119 9020108087009043008119 |
WASHER, PLATE 3411117500
|
||||
| # 37 |
5C3-E5430-00 5C3E543000 5C3E543000 |
CRANKCASE COVER AS
|
||||
| # 38 |
90387-06X48 9038706X48 9038706X48 |
COLLAR
|
||||
| # 39 |
90480-12X06 9048012X06 9048012X06 |
GROMMET
|
||||
| # 40 |
5C3-E5316-00 3B3E531600005C3E531600 |
DAMPER, ENGINE MOU
|
||||
| # 41 |
5C3-E5326-00 5C3E532600 5C3E532600 |
DAMPER 2
|
||||
| # 42 |
5C3-E5335-00 3B3E533500005C3E533500 |
DAMPER 3
|
||||
| # 43 |
5C3-E5337-00 3B3E533700005C3E533700 |
DAMPER 4
|
||||
| # 44 |
5C3-E533C-00 3B3E533C00005C3E533C00 |
DAMPER 7
|
||||
| # 45 |
5C3-E533D-00 3B3E533D00005C3E533D00 |
DAMPER 8
|
||||
| # 46 |
95827-06065 9582706065 9582706065 |
BOLT, FLANGE
|
||||
| # 47 |
95827-06035 9581706035009582706035 |
BOLT, FLANGE
|

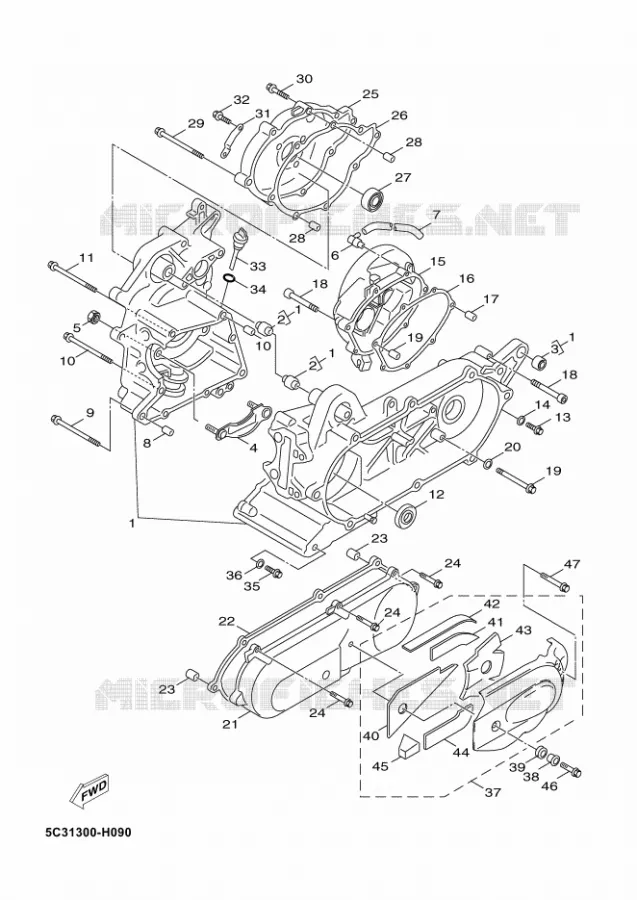

Yamaha YN50F NEO'S 50 4ST
Cilinderinhoud: 50 Jaar: 2010 Model code 5C33 Kleur: PALE BLUE METALLIC H
