| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
2EX-13610-00 2EX1361000 2EX1361000 |
REED VALVE ASSY
|
||||
| # 2 |
3WX-13621-00 3WX1362100 3WX1362100 |
GASKET, VALVE SEAT
|
||||
| # 3 |
3VL-E3555-20 3VLE355520 3VLE355520 |
MANIFOLD, INTAKE
|
||||
| # 4 |
90110-06X03 9011006X03 |
BOLT
|
Contact | |||
| # 5 |
90149-06X02 9014906X02 9014906X02 |
SCREW
|
||||
| # 6 |
90450-32X02 9045032X02 |
HOSE CLAMP ASSY
|
Contact | |||
| # 7 |
5RJ-E4410-00 5RJE441000 5RJE441000 |
AIR FILTER ASSY
|
Contact | |||
| # 8 |
3VL-E4451-01 3VLE445101 3VLE445101 |
ELEMENT, AIR CLEANER
|
||||
| # 9 |
3VL-E4437-00 3VLE443700 3VLE443700 |
DUCT
|
||||
| # 10 |
3VL-E4452-00 3VLE445200 3VLE445200 |
SEAL
|
||||
| # 11 |
3VL-E4565-00 3VLE456500 3VLE456500 |
SCREW
|
||||
| # 12 |
3VL-E4429-00 3VLE442900 3VLE442900 |
SCREW
|
||||
| # 13 |
4VA-E4453-00 4VAE445300 4VAE445300 |
JOINT, AIR CLEANER 1
|
||||
| # 14 |
90480-12X00 9048012497009048012X00 |
GROMMET(3AA)
|
||||
| # 15 |
90387-06X06 90387068J5009038706X06 |
COLLAR
|
||||
| # 16 |
5FA-14303-10 5FA1430311005FA1430310 |
COMPENSATOR ASSY
|
||||
| # 17 |
90167-05X02 9016705X02 9016705X02 |
SCREW, TAPPING
|
||||
| # 18 |
5RJ-E4318-00 5RJE431800 5RJE431800 |
PIPE, STARTER
|
Contact | |||
| # 19 |
90480-12X02 9048012X02 9048012X02 |
GROMMET
|
Contact | |||
| # 20 |
90467-07X00 9046707X00 9046707X00 |
CLIP
|
||||
| # 21 |
90467-07X00 9046707X00 9046707X00 |
CLIP
|
||||
| # 22 |
98507-06020 9851706020009850706020 |
SCREW, PAN
|
||||
| # 23 |
92907-06600 9290706600 9290706600 |
WASHER(6TA)
|
||||
| # 24 |
90467-24X00 9046724X00 9046724X00 |
CLIP
|

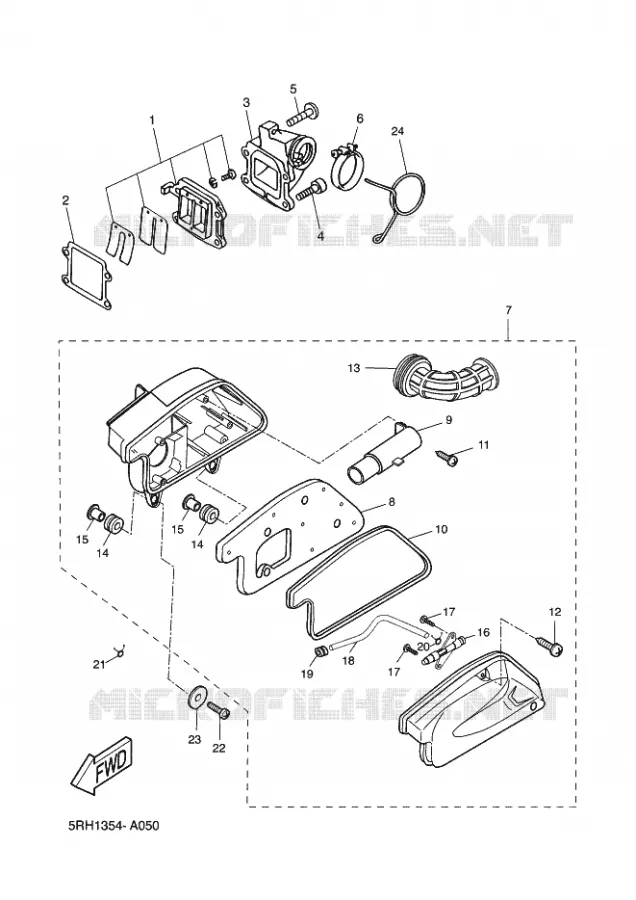

Yamaha EW50N STUNT NAKED
Cilinderinhoud: 50 Jaar: 2009 Model code 3C76 Kleur: BLUE METALLIC F
