| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
10B-E1102-00 10BE1102100010BE110200 |
CYLINDER HEAD ASSY
|
||||
| # 2 |
90116-08808 9011608808 9011608808 |
BOLT, STUD
|
||||
| # 3 |
90153-06804 9015306804 9015306804 |
SCREW, HEXAGON
|
||||
| # 4 |
90430-06014 9043006014 9043006014 |
GASKET 256113960000
|
Contact | |||
| # 5 |
10B-E1191-00 10BE119100 |
COVER, CYLINDER HE
|
Contact | |||
| # 6 |
90462-08809 9046208809 9046208809 |
CLAMP
|
||||
| # 7 |
93603-09106 9360309106 9360309106 |
PIN, DOWEL (341)
|
||||
| # 8 |
3B3-E131M-00 3B3E131M00 3B3E131M00 |
COVER
|
||||
| # 9 |
93211-18800 9321118800 9321118800 |
O-RING
|
||||
| # 10 |
95027-06020 9502706020 9502706020 |
BOLT, FLANGE(6U1)
|
||||
| # 11 |
90176-06806 9017606806 9017606806 |
NUT, CROWN
|
||||
| # 12 |
5ST-E1181-00 10BE118110005STE118100 |
GASKET, CYLINDER H
|
||||
| # 13 |
91810-14807 9181014807 9181014807 |
PIN, DOWEL
|
||||
| # 14 |
91810-14807 9181014807 9181014807 |
PIN, DOWEL
|
||||
| # 15 |
95027-06080 9502706080 9502706080 |
BOLT, SMALL FLANGE
|
||||
| # 16 |
3B3-E1311-00 3B3E131100 3B3E131100 |
CYLINDER 1
|
||||
| # 17 |
5ST-E1351-10 5STE135110 5STE135110 |
GASKET, CYLINDER
|
||||
| # 18 |
94700-00840 9470100353009470000840 |
PLUG, SPARK (CR7E)
|
||||
| # 19 |
3B3-E1391-00 3B3E139100 3B3E139100 |
BOLT, STUD 1
|

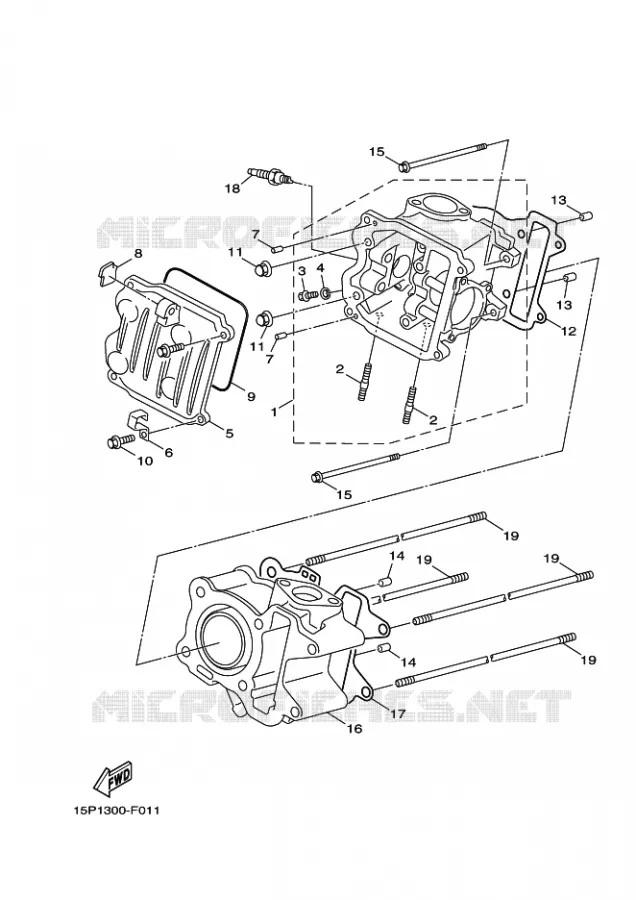

Yamaha XF50 GIGGLE
Cilinderinhoud: 50 Jaar: 2009 Model code 15P6 Kleur: DARK GREENISH GRAY METALLIC 2
