| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
3VL-E5150-00-00 3VLE51500000 3VLE51500000 |
CRANKCASE ASSY
|
Contact | |||
| # 2 |
164-22216-00-00 164222160000 164222160000 |
BUSHING, REAR CUSHION
|
||||
| # 3 |
93306-00201-00 933060020100 933060020100 |
BRG, R-B 6002RS 32MM 30G KY
|
||||
| # 4 |
3VL-E5371-00-00 3VLE53710000 |
BREATHER
|
Contact | |||
| # 6 |
93306-00201-00 933060020100 933060020100 |
BRG, R-B 6002RS 32MM 30G KY
|
||||
| # 7 |
90446-13311-00 904461380300904461331100 |
HOSE
|
||||
| # 8 |
99510-12016-00 995301201600995101201600 |
PIN, DOWEL
|
||||
| # 9 |
91316-06035-00 913170603500913160603500 |
BOLT, SOCKET
|
||||
| # 10 |
3VL-E5317-00-00 3VLE53170000 |
SPACER, ENGINE MOU
|
Contact | |||
| # 11 |
93440-15012-00 990091540000934401501200 |
CIRCLIP(1AR)
|
||||
| # 12 |
3VL-E5421-00-00 3VLE542110003VLE54210000 |
COVER, CRANKCASE 2
|
||||
| # 13 |
3VL-E5461-00-00 3VLE54610000 3VLE54610000 |
GASKET, CRANKCASE CO
|
||||
| # 14 |
99530-10014-00 995301001400 995301001400 |
PIN, DOWEL
|
||||
| # 15 |
91316-06035-00 913170603500913160603500 |
BOLT, SOCKET
|
||||
| # 16 |
91316-06020-00 913170602000913160602000 |
BOLT, SOCKET
|
||||
| # 17 |
3VL-E5411-00-00 3VLE54110000 3VLE54110000 |
COVER, CRANKCASE 1
|
||||
| # 18 |
3VL-E5659-00-00 3VLE565910003VLE56590000 |
SHAFT
|
||||
| # 19 |
99530-10014-00 995301001400 995301001400 |
PIN, DOWEL
|
||||
| # 20 |
91316-06025-00 913170602500913160602500 |
BOLT, SOCKET
|
||||
| # 21 |
91316-06035-00 913170603500913160603500 |
BOLT, SOCKET
|
||||
| # 22 |
91316-06045-00 913160604500 |
BOLT, HEXAGON SOCKET HEAD(M01)
|
Contact | |||
| # 23 |
3VL-E5451-00-00 3VLE54510000 3VLE54510000 |
GASKET, CRANKCASE CO
|
||||
| # 24 |
3VL-E5363-00-00 3VLE53630000 3VLE53630000 |
PLUG, OIL
|
||||
| # 25 |
93210-14104-00 932101457900932101410400 |
O-RING (26H)
|
||||
| # 26 |
95801-08016-00 9010508X1500958010801600 |
BLT, HEX, 1/4-20X5/8
|
||||
| # 27 |
90430-08206-00 904300820600 904300820600 |
GASKET(3ES)
|
||||
| # 28 |
3VL-E5128-00-00 3VLE51280000 3VLE51280000 |
HOLDER
|
||||
| # 29 |
98501-06012-00 985010601200 |
SCREW, PAN
|
Contact | |||
| # 30 |
3VL-E5462-00-00 3VLE54620000 3VLE54620000 |
GASKET, CRANKCASE CO
|
||||
| # 31 |
90465-08122-00 904650812200 904650812200 |
CLAMP(51Y)
|

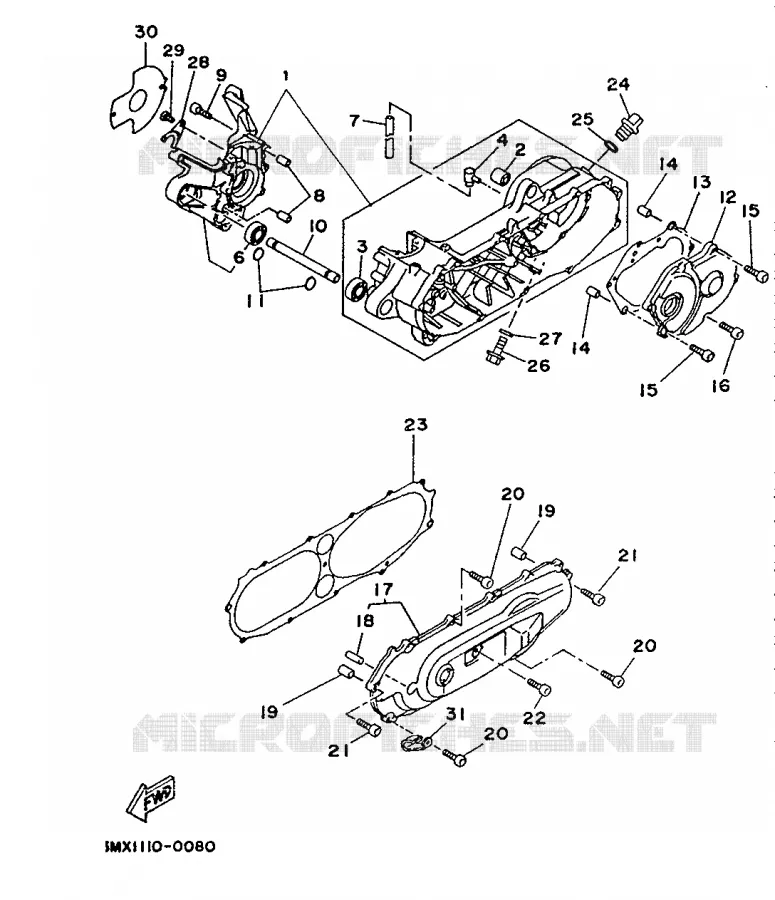

Yamaha CW50
Cilinderinhoud: 50 Jaar: 1990 Model code 3VL1 Kleur: COMPETITION YELLOW
